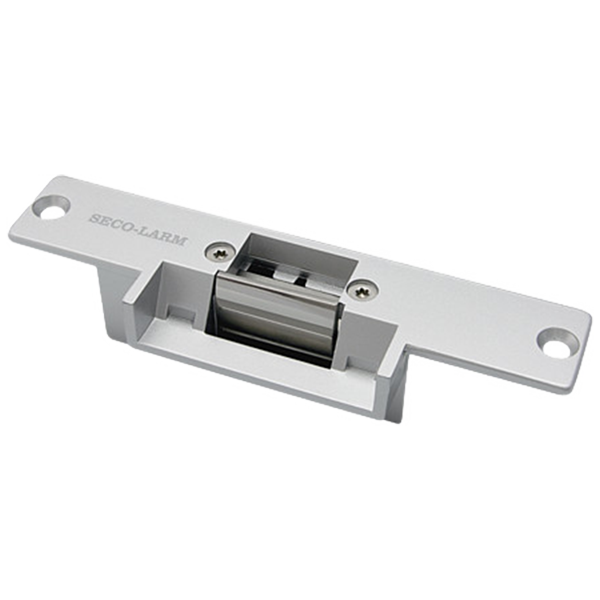

SECO-LARM - SK-990AQ - Fail-secure Electric Door Strike for wood-framed doors. Door locks when power is lost. Indoor use only. 12VDC/VAC.
Part number:
SK-990AQ
Price:

The SECO-LARM Electric Door Strike can be used to convert cylindrical lock sets into an electronic access-controlled locking system. Combine with an optional digital keypad such as the SECO-LARM SK-1011-SDQ for keyless high-security.



Features:

  • The SECO-LARM Electric Door Strikes convert cylindrical lock sets to an electronic access controlled locking system
  • Can be used on virtually any cylindrical door locking system
  • Use of a digital keypad with the unit assures high security without the need of a key
  • Easily connects to SECO-LARM’s SK-1011-SDQ Electronic Keypad
  • Suitable for office-type applications
  • CE approved
  • Baked painted finish
  • Fail-Secure units are perfect for entrance door installations
Operating Voltage10~14VDC
OperationFail Secure
Circuit TypeN.O.
Current Draw450mA
Coil Resistance26Ω
PolarityNone
Weight350g
Name
Description
Size
Downloads
File
Datasheet
0.4mb
