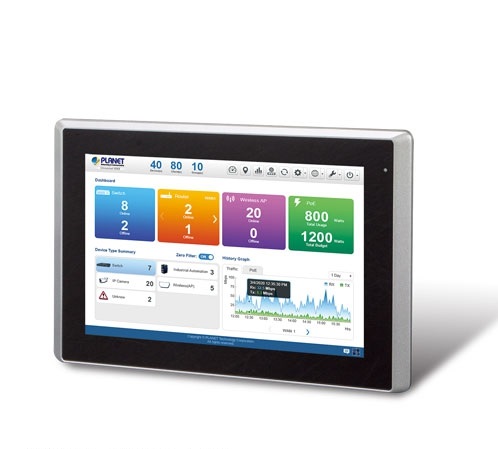

Planet - NMS-1000V-10 - Enterprise-class Universal Network Management Controller with 10" LCD Touch screen- 1024 nodes
Part number:
NMS-1000V-10
Price:
PLANET's NMS-1000V Network Management controller can monitor all kinds of deployed network devices, such as managed switches, media converters, routers, smart APs, VoIP phones, IP cameras, etc., compliant with the SNMP Protocol, ONVIF Protocol and PLANET Smart Discovery utility. It thus enables the administrator to centrally manage a network of up to 1024 nodes from a central office, greatly boosting network and power management efficiency. Through the intuitive touch panel, any network exception messages can be displayed in real time to greatly improve the work efficiency of network management personnel. With its user authentication management, the NMS-1000V enhances data transmission security in the modern factory automation systems.
Features:
- 2x10/100/1000BASE-T Gigabit Ethernet RJ45 ports
- 2xUSB 3.0 ports for configuration backup and restoration
- 1xaudio line out (reserve)
- 1xHDMI interface
- 2xDB-9 COM1,COM2 (reserve)
- 1x3-pin DC power input terminal
- 1x2-pin connector for power on/off button (reserve)
- VESA (100 x 100) panel mount
| Platform | |
|---|---|
| Form Factor | Panel Mount, VESA 100 x 100 |
| Physical Specifications | |
| I/O Interface | 2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports 2 USB 3.0 ports (They cannot be used at the same time.) 1 Audio Line Out (reserve) 1 HDMI interface 2 DB-9 COM1,COM2 (reserve) 1 3-pin DC power input terminal 1 2-pin connector for power on/off button (reserve) |
| Storage | 2.5" 32G SATA3 HDD |
| Touch LCD Size | NMS-1000V-12: 12.1” TFT-LCD NMS-1000V-10: 10.1” TFT-LCD |
| Touch Type | Resistive Touch Window Projected Capacitive Touch |
| Display Resolution | NMS-1000V-12: 1024 x 768 NMS-1000V-10: 1280 x 800 |
| Display Luminance(cd/m²) | NMS-1000V-12: 500 NMS-1000V-10: 350 |
| Display Viewangle(H°/V°) | NMS-1000V-12: 160(H)/140(V) NMS-1000V-10: 160(H)/160(V) |
| Display Contrast | NMS-1000V-12: 700:1 NMS-1000V-10: 800:1 |
| Display Backlight lifetime(hrs) | NMS-1000V-12: 30,000 hrs NMS-1000V-10: 40,000 hrs |
| Light Transmission (%) | Resistive Touch Window: over 80% Projected Capacitive Touch: over 90% |
| Dimensions (W x D x H) | NMS-1000V-12: 319 x 51.7 x 245 mm NMS-1000V-10: 285 x 49 x 189 mm |
| Weight | NMS-1000V-12: 2.9 kg NMS-1000V-10: 2 kg |
| Enclosure | Aluminum Die-casting Chassis |
| Power Requirements | DC IN 9~36V 60W adapter 12V 5A with terminal block AC 100~240V, 2.0A, 60~50Hz. |
| Environment & Certification | |
| IP rating | IP66 Compliant Front Bezel |
| Temperature | Operating: 0 ~ 50 degrees C Storage: -30 ~ 70 degrees C |
| Humidity | 10 ~ 90% relative humidity (non-condensing) |
| MTBF (Hours) | 100,000 |
| Network Management | |
| Number of Managed Devices | 1,024 |
| Number of RADIUS Client Devices | 1,024 |
| Number of RADIUS User Accounts | 20,000 |
| Auto Discovery | Supports PLANET devices |
| Dashboard | Providing the at-a-glance view of system, device summary, traffic, PoE network status |
| Device List | Allows creation and maintenance of device profiles |
| Topology View | Provides visual topology view of connected PLANET devices |
| Status Monitoring | Real-time online/offline devices |
| Event and Syslog Report | Real-time system event and syslog server supported |
| Event Alarm Define | Allows event alarm item option |
| SMTP Alarm | E-mail alert to the administrator via the SMTP server |
| Popup Alert Message Window | Touch screen exclusive alert message window |
| SSID/RF Profile | Allows creation and maintenance of multiple wireless profiles |
| Cluster Management | Allows AP grouping for bulk provisioning and batch upgrading |
| Bulk AP Provisioning | Supports bulk AP provisioning with user-defined profiles |
| Bulk AP Firmware Upgrade | Supports bulk AP firmware upgrade |
| Coverage Heat Map | Enables real signal coverage of managed AP reflecting on the uploaded zone maps |
| Graphical Statistics | Real-time and historical visibility of wireless traffic flow |
| Backup/Restoration | Provides system and profile backup/restoration |
| SSIDs-to-VLANs Mapping | Allows to configure SSIDs-to-VLANs mapping in supported APs |
| RADIUS Authentication | RADIUS server is integrated for client authentication in a large-scale enterprise network |
| User Account Management | Supports on-demand account creation per user-defined access policy |
| Network Services | |
| Network | DDNS: Supports PLANET DDNS/Easy DDNS DHCP: Built-in DHCP Server for auto IP assignment to APs Management: Console; Telnet; SSL; Web browser (Chrome is recommended); SNMP v1, v2c, v3 Discovery: Supports SNMP, ONVIF and PLANET Smart Discovery |
| Maintenance | Backup: System backup and restore to local or USB HDD Reboot: Provides system reboot manually or automatically per power schedule Diagnostic: Provides IPv4/IPv6 ping and trace route |
