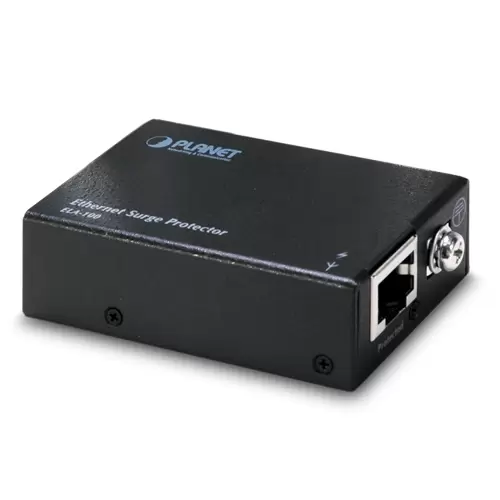

PLANET - ELA-100 - Ethernet Lightning Arrestor
Part number:
ELA-100
Price:
PLANET has released a new Ethernet Lightning Arrest Box, the ELA-100, to prevent Ethernet devices from possible damage caused by surge voltages as a result of lightning strikes.
The ELA-100 Ethernet Lightning Arrest Box provides two passive 10/100/1000Base-T interfaces for connection of two Ethernet devices and one ground position for earth. The ELA-100 Ethernet Lightning Arrest Box is the ideal solution to preventing damages to Ethernet devices from surge voltages caused by lightning strikes.
Features:
- Interface: 2 Passive 10/100/1000 Ports
- Ground: 1 ground position
- DC Spark-Over Voltage: 230V, ±20%
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Ethernet interface | 2 passive 10/100/1000 Ethernet ports |
| Ground | 1 ground position |
| DC spark-over voltage | 230V, ±20% |
| Nominal impulse discharge current (wave 8 / 20?s) | 20KA |
| Arc Voltage at 1A | ~35V |
| Glow to arc transition current | ~1A |
| Glow voltage | ~200V |
| Dimensions (W x D x H) | 65 x 42 x 20mm |
| Weight | 80g |
| Operating environment | 0~50 degrees C, 5%~90%RH |
| Storage environment | -20~70 degrees C, 5%~90%RH |
