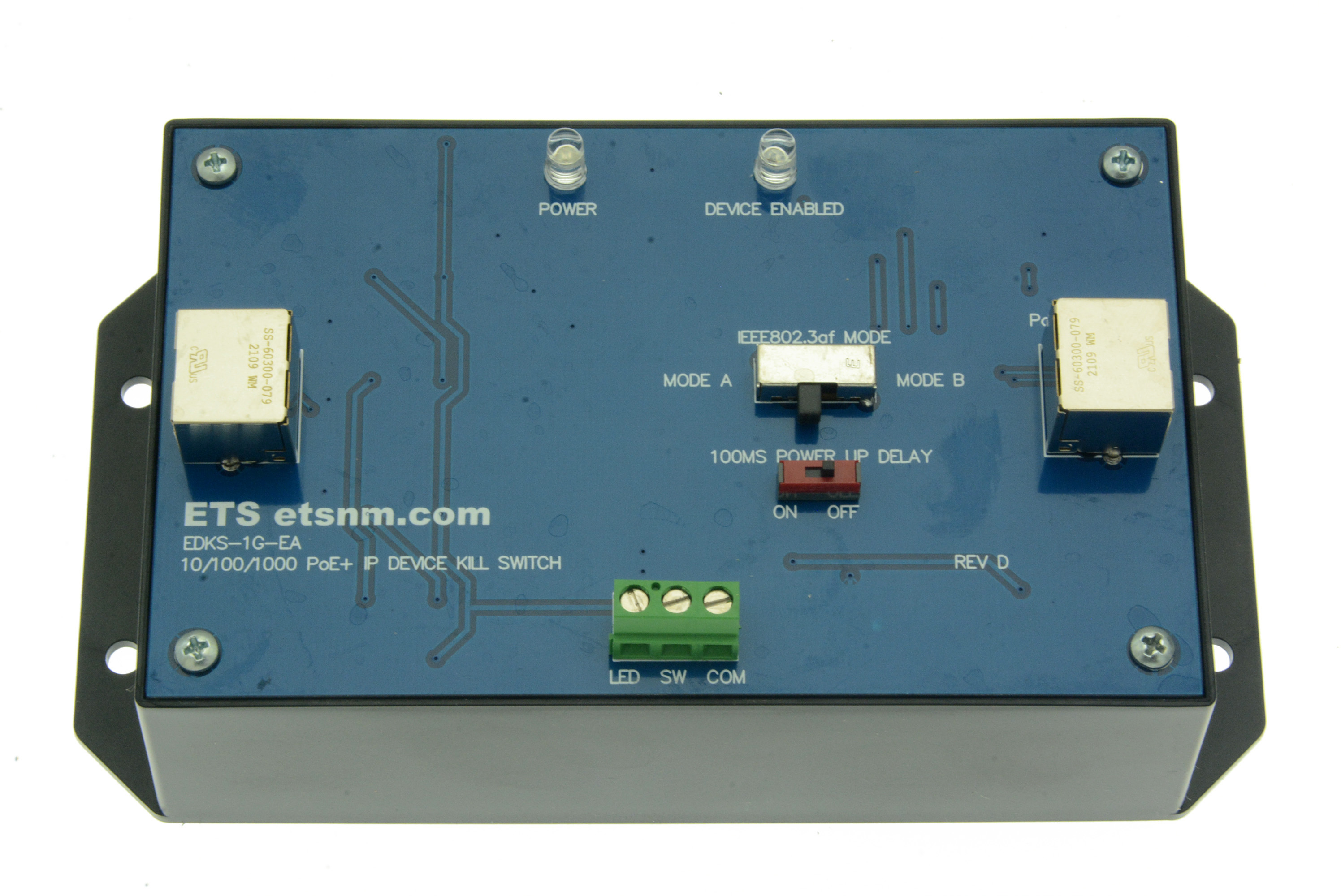

The EDKS-1GEA is a device designed to completely connect/disconnect all 8 data lines to IP cameras or any other Ethernet connected device. The EDKS-1GEA is placed in-line with the end device's CAT6 Ethernet cable. The EDKS-1GEA uses a small amount of PoE+ power to operate. The connected device is enabled and the external LED lights when the external switch is closed.

ETS makes several external wall switch plates for triggering the EDKS-1GEA:

RRSG Rocker switch on a SG stainless steel plaate and LED indictor

RKSG Key switch on a SG stainless Steel plate with LED indicator

RPSG Key pad on a SG stainless Steel plate with LED indicators.

Includes:

• EDKS-1GEA IP device kill switch.
• Installation instructions.

Wiring requirements:

3 #22 conductors needed for external switch and LED status indicator.

Features:

• Shielded CAT6 I/O Connectors
• Operates on PoE+ power, consumes 1.5W when device is enabled and 0.5W when disabled.
• 100ms power up delay on/off switch
• Terminal block for external switch and LED
• Trigger Voltage LED indicator
• PoE power indicator
• IEEE802.af A and B mode compatible
• Supports 10/100M and 1G data rates
• Makes / breaks pins 1-8 with signl relays.
• Auto-resettable fuse protected
• Black plastic ABS housing.
• Operating Temperature 0 to 70C
• Weight: 0.2lbs
• Dimensions: L 5.3 x W 3.3 x H 1.6
