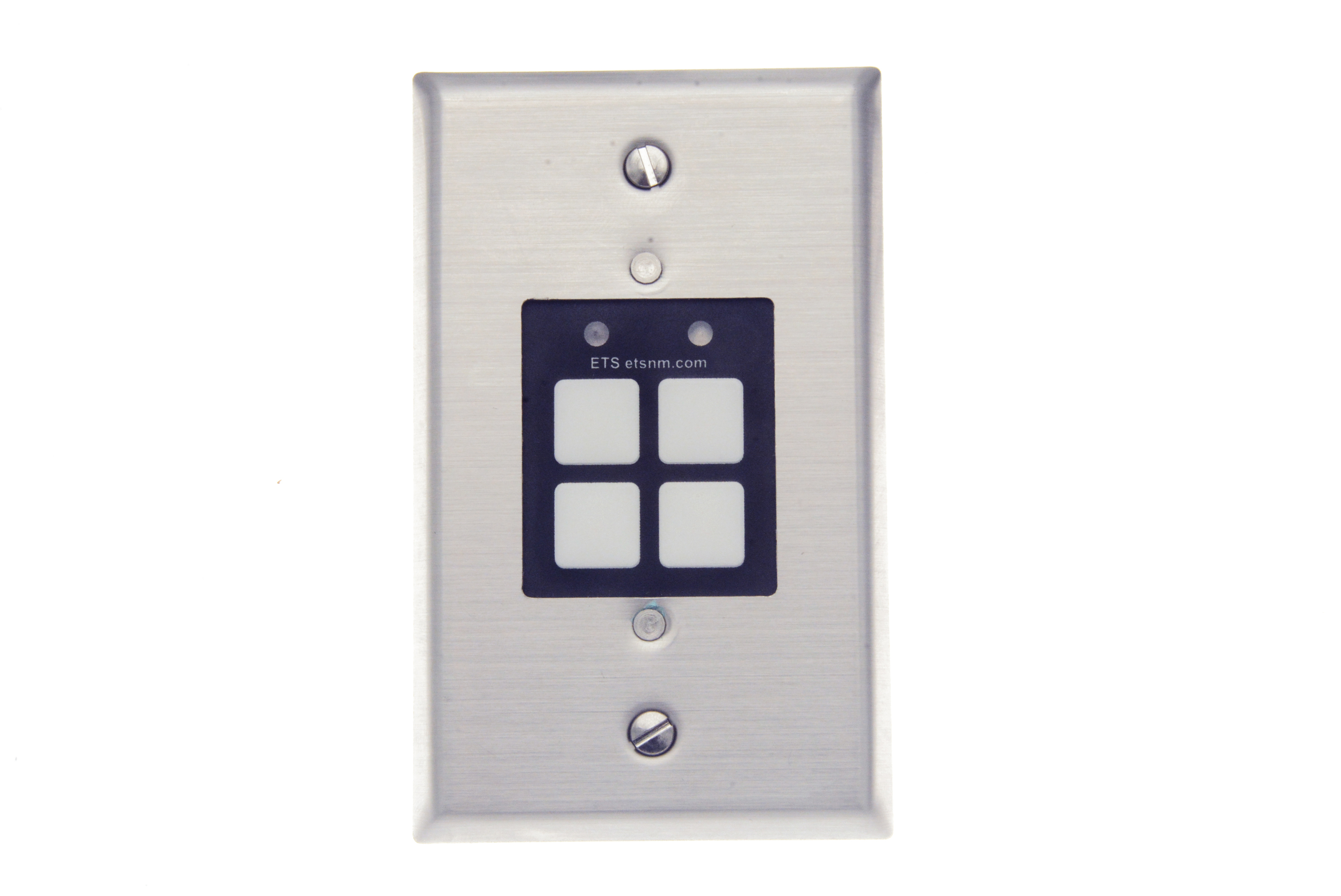

The EDKS-1GEA-PKSG is a device designed to interrupt power going to a PoE++ IP device with up to 126 memorized 8 button press codes. It is typically used to disable / enable IP cameras for privacy and confidentiality purposes. Applications include interview rooms, Interrogation rooms, hospital rooms and patient exam rooms. The EDKS-1GEA-PKSG is placed in-line with the IP device’s CAT5/6 Ethernet cable. When the IP device is enabled, the green LED on the EDKS-1GEAPKSG is lit green. When the IP device is disabled the red LED is lit.

Includes:

• EDKS-1GEA-PKSG IP device kill switch.
• Mounting screws
• Installation instructions.

Wiring requirements:

Cat 5/6 cable in and out

Features:

• CAT5/6 shielded I/O Connectors
• Device ’on/off LED indicators
• Self contained system, Uses PoE power; no additional power input required.
• Supports 10/100M and 1G data rates
• Rated for up to PoE++ device loads
• Makes / breaks A and B mode power with a relay. Data is not routed through the relay.
• Can store up to 126 8 button press pattern codes.
• Simple function to add codes
• IEEE802.af A and B mode switch
• Stainless steel single plate.
• PoE power consumption: < 1 Watt
• IP55 rated
• Dimensions: L 4.5 x W 2.75 x H 1.5
• Weight 0.2lb
