The EDKS-1GEA-RPSG is a device designed to interrupt power going to a PoE++ IP device with up to 169 memorized proximity keychain fobs. It is typically used to disable / enable IP cameras for privacy and confidentiality purposes. Applications include interview rooms, Interrogation rooms, hospital rooms and patient exam rooms. The EDKS-1GEA-RPSG is placed in-line with the IP device’s CAT5/6 Ethernet cable. When the IP device is enabled, the LED on the EDKS-1GEA-RPSG is lit green. When the IP device is disabled the LED is lit red.

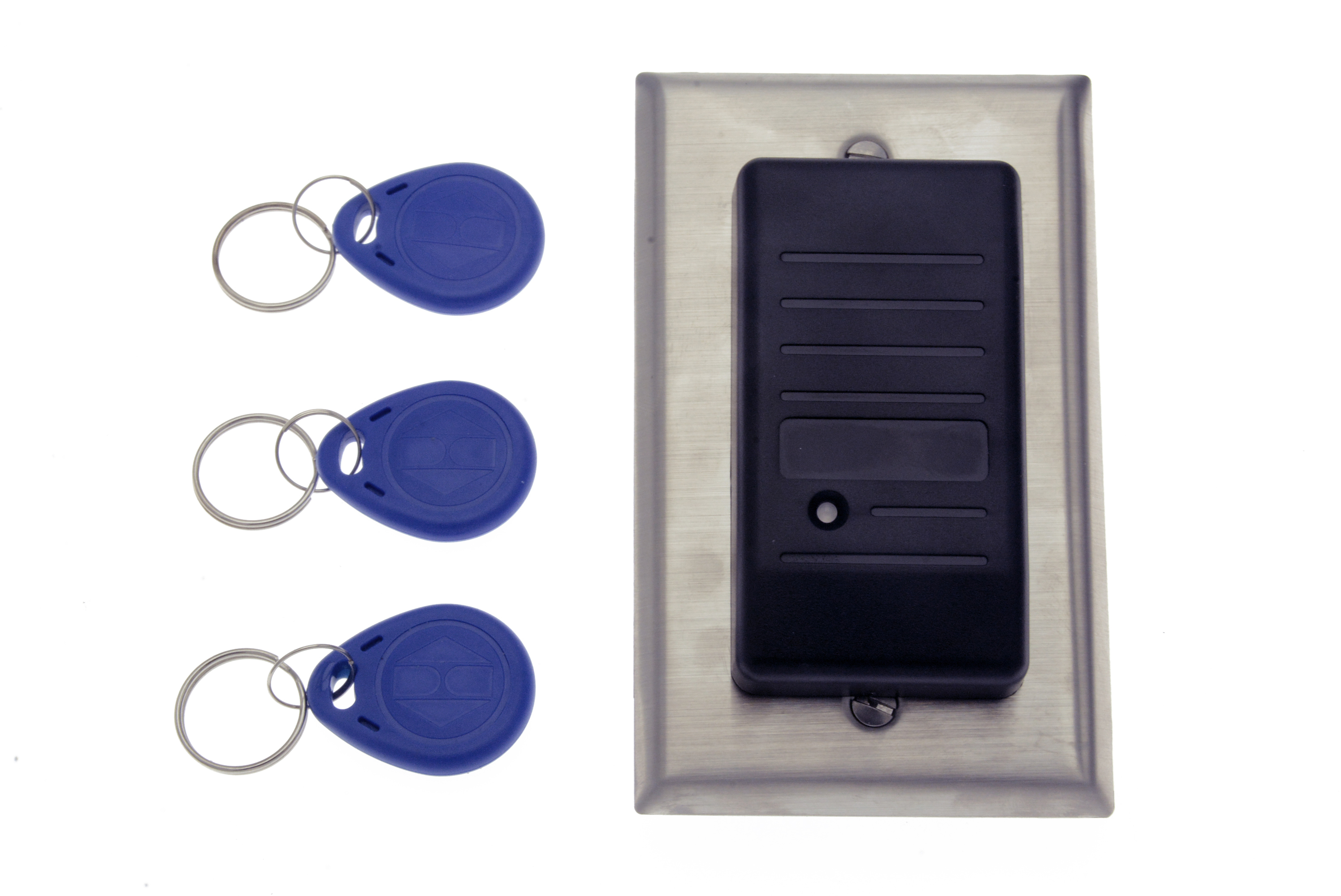

Includes:

• EDKS-1GEA-RPSG IP device kill switch.
• Mounting screws
• 10 Proximity Fobs (3 shown).
• Installation instructions.

Wiring requirements:

Cat 5/6 cable in and out

Features:

• CAT5/6 shielded I/O Connectors
• Device ’on/off LED indicator
• Self contained system, Uses PoE power; no additional power input required.
• Supports 10/100M and 1G data rates
• Rated for up to PoE++ device loads
• Makes / breaks A and B mode power with a relay. Data is not routed through the relay.
• Can store up to 169 26 bit proximity cards or keychain fobs.
• Simple function to add Fobs
• IEEE802.af A and B mode switch
• ABS reader on stainless steel plate.
• PoE power consumption: < 1 Watt
• IP55 rated
• Dimensions: L 4.5 x W 2.75 x H 1.5
• Weight 0.2lb
