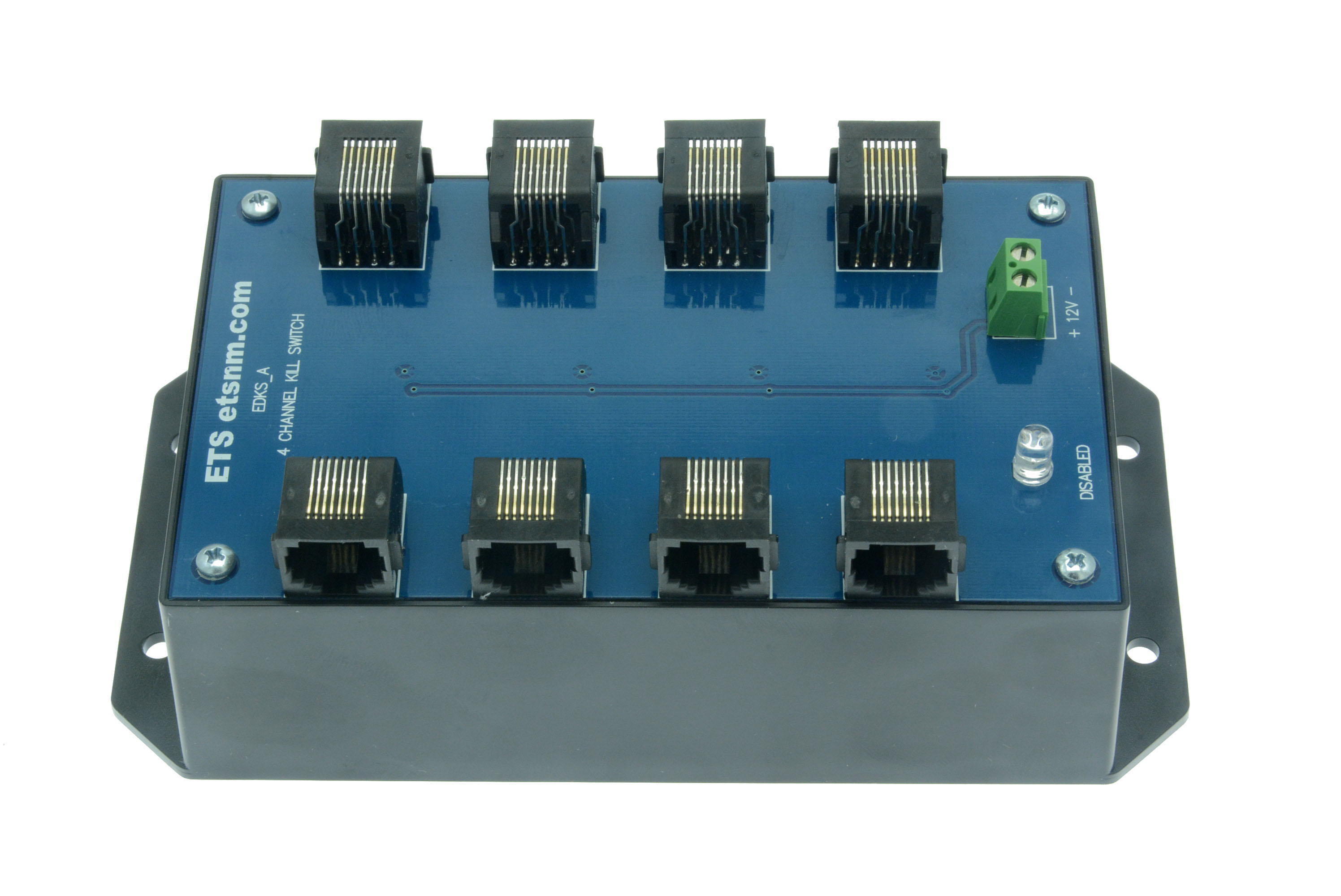

The EDKS-4 is a device designed to interrupt the power and streaming of data from up to 4 a IP cameras or other Ethernet connected devices The EDKS-4 is placed in-line with the end device's CAT5 Ethernet cable. When 12Vdc power is applied to the EDKS-4 terminal block, the end devices are disconnected from the network switch. When power is removed, the end devices are on-line. A switch can be mounted on the wall of the room along with an external power source to trigger the EDKS-4. Other equipment that outputs a 12vdc 100ma power source can also be used to trigger the EDKS-4.

Includes:

• EDKS-4 IP device kill switch.
• Installation instructions.

Wiring requirements:

• 2 conductor 22 gauge for connecting 12Vdc trigger voltage.

Features:

• CAT5 I/O Connectors
• Terminal block for trigger Voltage
• Trigger Voltage LED indicator
• IEEE802.af A and B mode compatible
• Trigger Voltage Power: 12 VDC @ 100mA.
• Reverse polarity protected
• Black plastic ABS housing.
• Dimensions: L 3.3 x W 2.0 x H 1.6
• Weight 0.15lb

Two versions now available:

EDKS-4-VE applying 12-15vdc enables camera

EDKS-4-VD applying 12-15vdc disables camera
