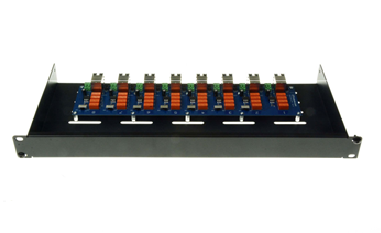

8 Channel 1G IP Camera or Other Ethernet Connected Device Kill Switch

The EDKS-x is a device designed to interrupt power and streaming data from up to 8 a IP cameras or other Ethernet connected devices The EDKS-x is placed in-line with the end device's CAT6 Ethernet cable. 12-24vdc is applied or removed to enable or disable the cameras depending on which version EDKS-x is ordered. A switch or switches can be mounted on a wall of the room(s) along with an external power source to trigger the EDKS-x. Other equipment that outputs a 12-24vdc 500ma power source can also be used to trigger the EDKS-x.

Specify EDKS-x where x = number of channels required.

Includes:

• EDKS-x IP device kill switch.
• Rack mount screws
• Installation instructions.

Options:

Board only (minus rack mount) version available. p/n: EDKS-x-1G-Vx

Wiring requirements:

2 conductor 22 gauge for connecting 12Vdc trigger voltage

Features:

• Shielded CAT6 I/O Connectors
• Removeable terminal blocks for trigger Voltages
• Independent Trigger voltages or trigger channels 2-8 from channel 1. Each Channel Switch selectable.
• Trigger Voltage LED indicators
• IEEE802.af A and B mode compatible
• Supports 10/100M and 1G data rates
• Makes / breaks all 8 pins with relays.
• 100W PoE power switching rating
• Trigger Voltage Power: 12-24VDC @ 500mA.
• Reverse polarity protected
• 1U rack mounted, open frame.
• Dimensions: L 19 x W 8.5 x H 1.75
• Weight 1.8lb

Two versions available:

EDKS-x-1G-VE-RM applying 12-24vdc enables camera
