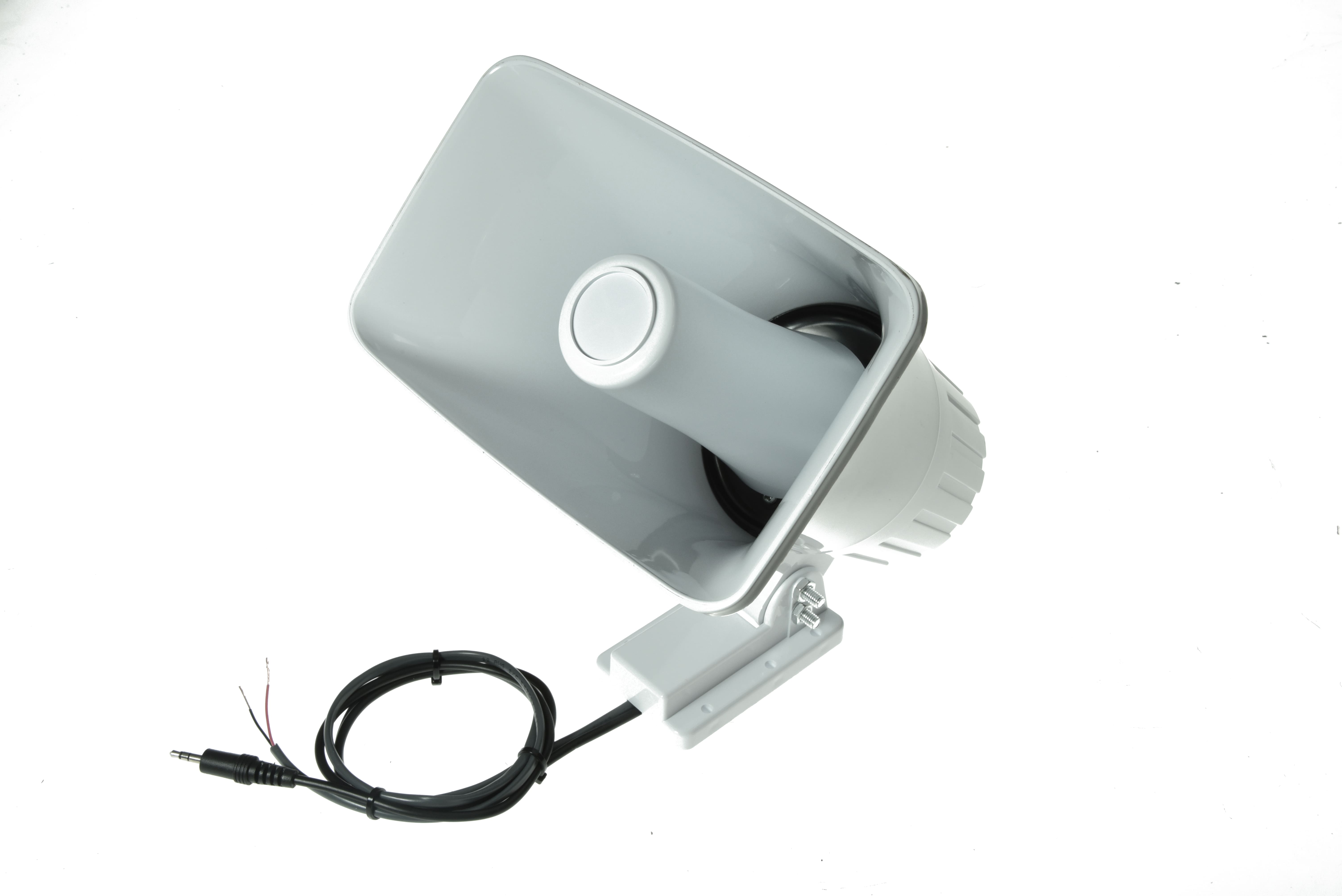

The HSA-8 is a low cost 8x6 inch indoor / outdoor horn speaker with an integrated 30Watt power amplifier. It operates on 12Vdc (10 Watts) or 24Vdc (30 Watts) regulated power and comes with 6' leads for power and audio input. The audio input is a male 3.5mm stereo plug designed to plug directly into an IP camera. The volume of the speaker can be adjusted via a control on the bottom of the unit with a small screw driver.

Includes:

• HSA-8 Amplified horn speaker
• Instructions

Options:

• Connection interface box with internal terminal block connections mounted to rear of speaker instead of flying leads P/N HSA-8B

Features:

• Line level input
• Recessed adjustable volume control
• 30 Watt maximum power level
• 6’ 3.5mm Stereo (wired mono) male audio input
• 6’ 2 conductor power cord
• White ABS plastic enclosure
• Power input: 12V @ 1A for 10 Watt operation
• 24V @ 2A for 30 Watt operation
• Frequency response 500-8Khz’
• Operating temperature -40 to 85C
• Dimensions, Horn face: L8.0 x W6.0 Body L8.5
• Weight: 0.5kg
