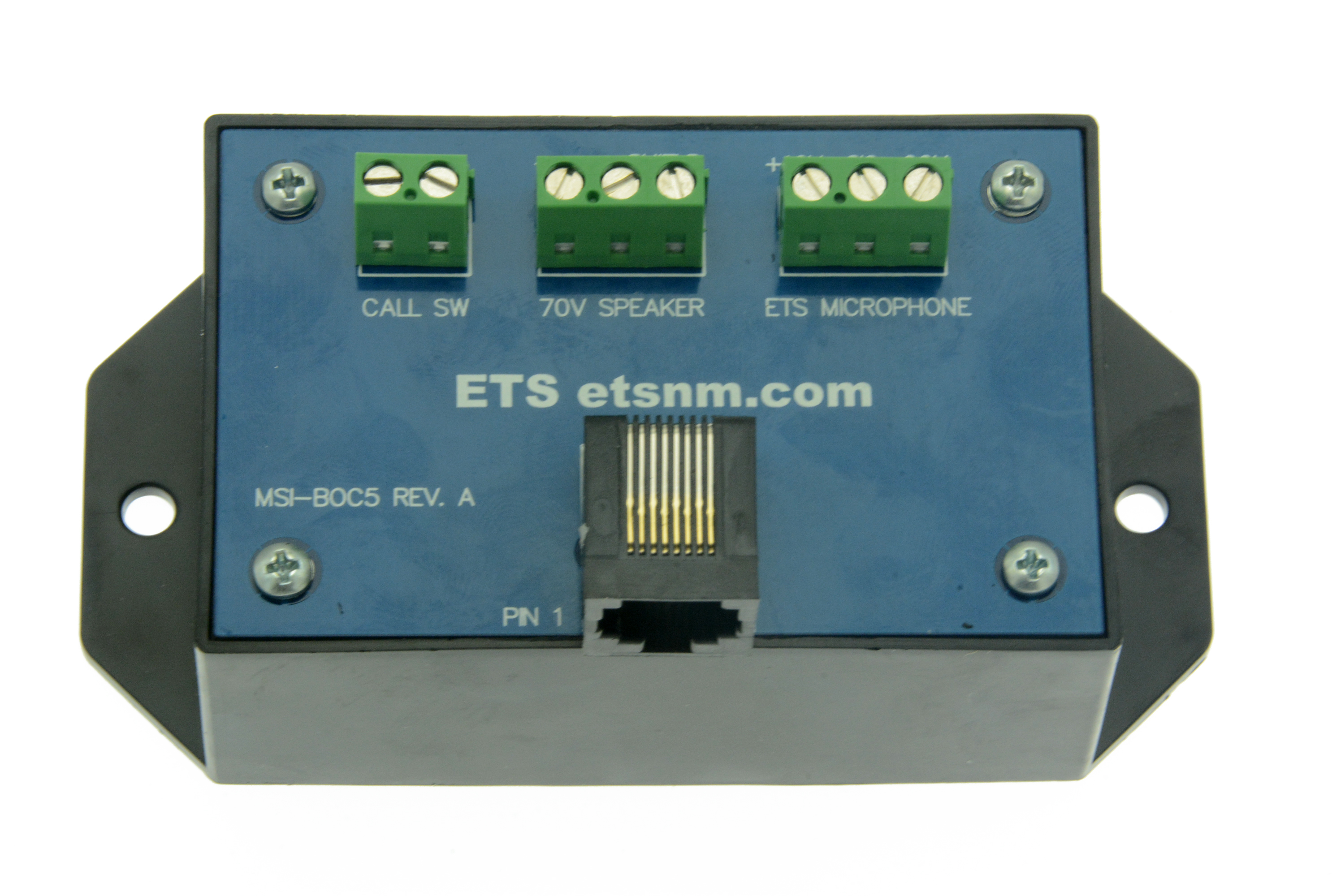

The MSI-BOC5 is an interface box designed to breakout the signals from ETS 2-way CAT5 based speaker / microphone connections. It allows the use of a separate speaker and microphone with our SMAx-xxC5 products vs an ETS -C5 combination speaker/microphone.

Includes:

• MSI-BOC5 Breakout box
• Installation instructions.

Wiring requirements:

CAT5 connection:
-HP devices 250 feeet max
-MP devices 500 feet max
-LP devices 1000 feet max

Speaker: 22 gauge 2 conductor Shielded 25 feet max

Microphone: 22 gauge 2 conductor Shielded 25 feet max

Features:

• Cat5/6 input connector
• Terminal blocks for speaker, microphone and call switch connections\
• 70V 2.5W Speaker output. ETS SM1 type or similar microphone input
• Call switch input
• Temperature range –40C to 85C.
• Black plastic ABS housing.
• Dimensions: L 3.3 x W 2.0 x H 1.6
• Weight .05lbs
