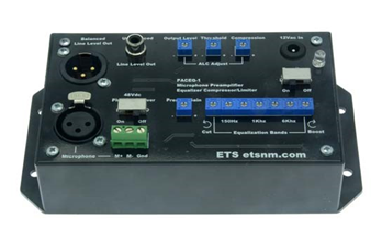

The PACEQ-1 is our top of the line interface designed to be used with any ETS PM1 professional series microphone (or any other balanced 48v phantom powered or dynamic professional microphone). The PACEQ-1’s output connects to the ‘microphone input or ‘audio input’ of an IP camera, DVR or other equipment. The PACEQ-1 features XLR inputs and outputs, a 7 band equalizer and high quality compressor limiter.

Includes:

• PACEQ-1 Interface box
• 12VAC 300ma Power Supply
• 1ea 6’ RCA-RCA Patch cord
• Installation instructions.

Options:

• SPECIFY: RCA OR 3.5mm input / output connectors.

Wiring Requirements:

Microphone cable run: Stranded 22- gauge, 2-conductor shielded cable or high grade “microphone” cable. Distances up to 500 feet.

Features:

• Microphone input connectors: XLR or direct wire terminal block.
• Ultra low noise microphone pre-amplifier
• Adjustable microphone pre-amp gain: 26db to 40db
• Input impedance 1K Ohms.
• Input: RFI and transient protected
• Integrated 48Vdc regulated phantom power supply
• Phantom power on/off switch
• Equalizer: 7 frequency band controls: 60hz, 150hz, 400hz, 1Khz, 2.5Khz, 6Khz, 15Khz. +/- 12db gain / cut for each frequency band.
• Equalizer on/off switch
• Built in Compressor/ peak limiter
• Threshold adjustment: –40 to 20db
• Compression ratio continuously variable between 1:1 and Infinity:1
• Two line level outputs: XLR balanced and RCA (or 3.5mm) unbalanced.
• Output level control: +/- 20db
• Outputs short circuit protected.
• Output impedance: 100 Ohms.
• S/N ratio: better than 60db (EQ off)
• Frequency response 20HZ-30Khz (EQ. off)
• Power consumption, 30ma@12Vac.\
• Auto-reset fused
• Power indicator
• Weight: .25lbs
