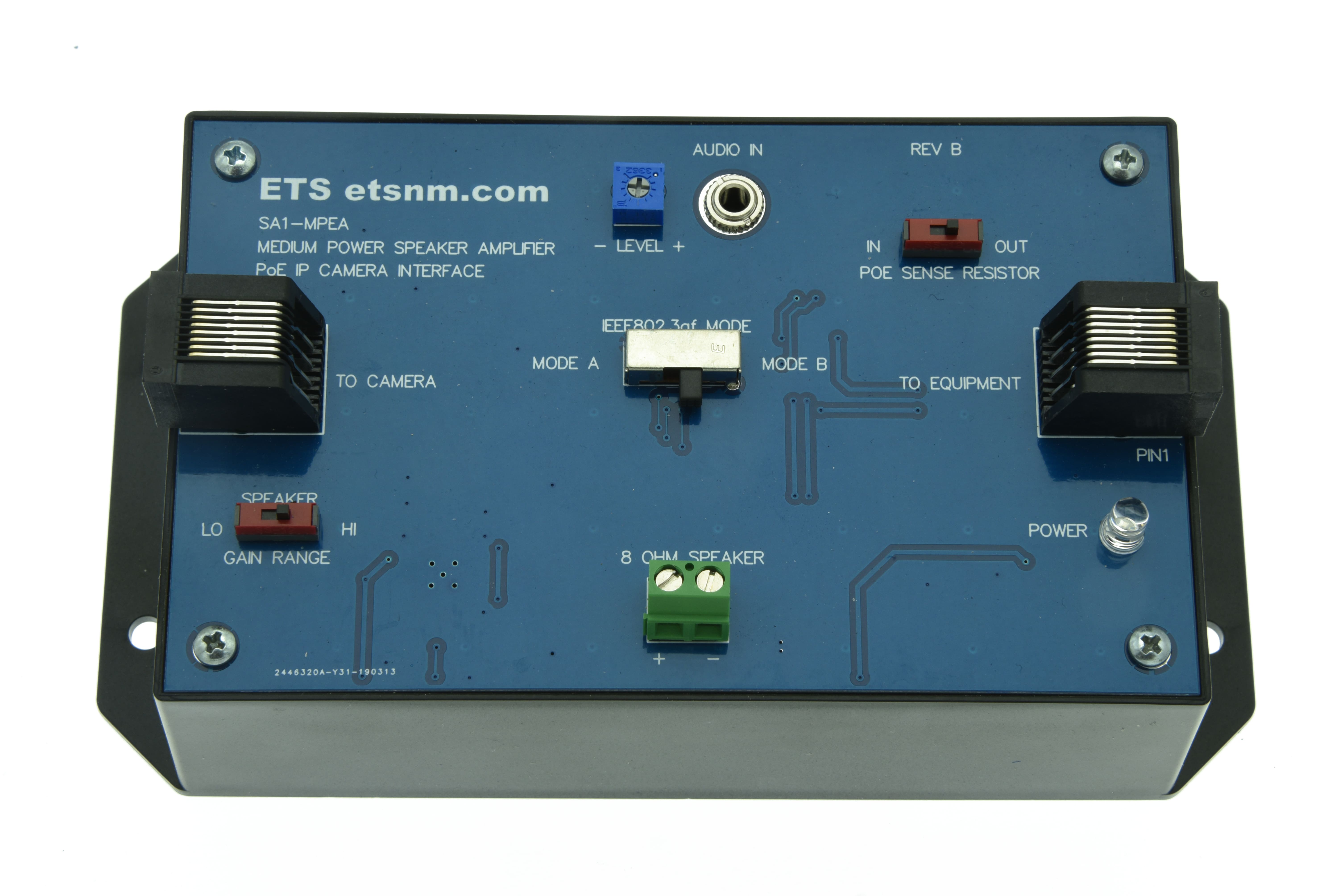

The SA1-MPEA is a PoE in-line, 10W speaker driver, IP camera interface that taps power off the camera's Ethernet CAT5 cable for talk-back only, public address andsecurity applications. 3.5mm (or RCA)input jack for connection to "line output"of IP cameras. Supports both modes A and B of IEEE802.3af.

Includes:

• SA1-MPEA interface
• 1ea. 6’ 3.5mm patch cords.
• Installation instructions.

Options:

• Add –RCA or –FL (Flying Leads) to P/N for alternate output cables.

Wiring requirements:

Speaker: #22/2 100’, #18/2 300’

Features:

• RCA or 3.5mm audio input connectors
• Speaker line level audio input.
• Can be powered by itself with a separate PoE cable run or placed in line with an IP camera.
• Transformer isolated audio input.
• Adjustable audio output level.
• Up to 10 Watt speaker power amplifier.
• Selectable gain range for speaker
• 8 ohm speaker output
• RJ45 in/out jacks for Ethernet.
• Straight through CAT5 connections (no crossover)
• A/B mode switch for IEE802.3af power format.
• Internal switching regulator converts PoE 48-57Vdc to 15vdc for internal speaker power amplifier and microphone power supply.
• Current consumption 670ma. Maximum
• Led power indicator.
• 2 position terminal block speaker connection
• PPTC fused.
• Operating Temperature 0 to 70C
• Dimensions: L 5.3 x W 3.3 x H 1.6
• Weight: 0.2kg
