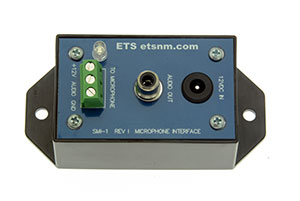

Powers an SM1 series microphone and routes its audio output to an RCA jack (or 3.5mm) for connection to equipment with a un-balanced line level input. Ideal for DRVs, remote monitoring applications, and CCTV monitors with built in speakers.

Features:

• Standard RCA or 3.5mm jack for connection to DVRs etc.
• Line level (0db) output level.
• Euro-style connector makes cable termination fast and clean.
• LED power indicator.
• Power: 12 VDC @ 10mA
• Reverse polarity protected.
• All power circuitry and cable run protected with auto-reset type fuse.
• Black plastic ABS housing.
• Dimensions: L 2.7 x W 1.7 x H 1.6
