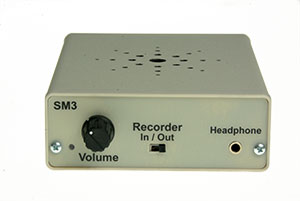

Stand alone base station for monitoring any SM1 series microphone. Terminals for connecting and powering up any Sound Surveillance SM1 series microphone. Connects to DVRs or audio recorders for live monitoring or playback. Headphone jack for private listening.

Features:

• 2 Watt speaker power amplifier
• 3" Full range speaker
• 3.5mm headphone jack
• Line level input and output RCA jacks for connection to DVRs and audio recorders.
• Recorder monitor switch.
• Volume control.
• Power: 12Vdc @ 250ma
• Reverse polarity protected and fused.
• High quality metal housing.
• Dimensions: L6.5 x W4 x H 1.5
• Weight .40lbs

Includes:

• SM3 base station
• 15VDC AC adapter
• Installation instructions

Microphone wiring Requirements:

• Stranded 22-gauge, 2-conductor shielded cable with drain wire. Max. cable length: 1500
