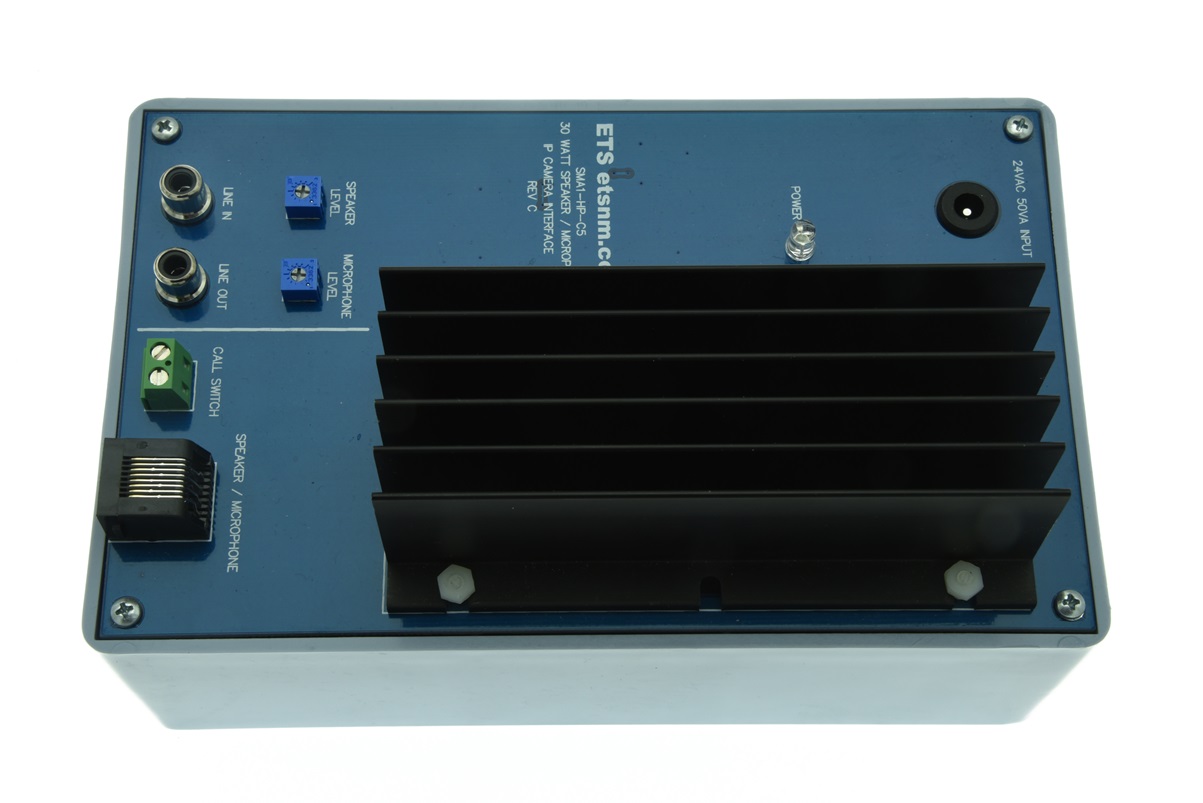

The SMA1-HP is a line level, 30 Watt, 70V speaker driver (power amplifier) and SM series microphone interface typically for use in 2 way audio surveillance systems. A single CAT5 cable connects the SMA1-HP to any ETS speaker/ microphone ordered with a C5 option. Directly connects to DVRs and remote monitoring equipment.

Features:

• Single CAT5 cable run up to 250' between SMA1-HPC5 and speaker/microphone.
• Line level (0db) audio input and outputs.
• Standard RCA or 3.5mm jacks for connection to DVRs etc.
• Adjustable volume controls for speaker and microphone.
• 30 Watts RMS power output (70v balanced line).
• Short circuit protected.
• Built in 70V 30w audio power transformer.
• 2 position terminal block for call switch
• LED power indicator and PPTC fused.
•  Call sw: unreferenced, 2 free terminals.
• Power:24 VAC @ 2000mA
• Grey plastic ABS housing.
• Dimensions: L 7.0 x W 4.5 x H 3.75
• Weight 1.25kg

Includes:

• SMA1-HPC5 Speaker driver / microphone interface.
• 24 VAC 50VA AC adapter.
• 2 each 6’ RCA patch cord
• Installation instructions

Options:

• Add –3.5MM or –FL (Flying Leads) to P/N for alternate output cables.
