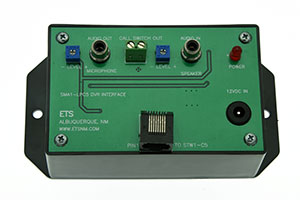

The SMA1-LP-C5 is a line level, 2 Watt, 70V speaker driver (power amplifier) and SM series microphone interface typically for use in 2 way audio surveillance systems. A single CAT5 cable connects the SMA1-LP-C5 to any ETS speaker/ microphone ordered with a C5 option. Directly connects to DVRs and remote monitoring equipment. Use one of our Sound Surveillance speakers with a built in 70V transformer & SM1 microphone (CAT5 option) for cable runs up to 1000 feet.

Features:

• Single CAT5 cable run up to 1000' between SMA1-LP-C5 and speaker/microphone.
• Line level (0db) audio input and outputs.
• RCA input / output jacks.
• Adjustable volume controls for speaker and microphone.
• 2.5 Watts RMS power output (70v balanced line).
• Balanced microphone signal transmission.
• Frequency response 200-10Khz.
• Short circuit protected.
• Built in 70V 2w audio power transformer.
• Terminal block call sw connection
• LED power indicator and PPTC fused.
• Call sw: unreferenced, 2 free terminals.
• Power: 12vdc 250ma
• Black plastic ABS housing.
• Dimensions: L 5.3 x W 3.3 x H 1.6
• Weight .123kg

Includes:

• SMA1-LP-C5 Speaker driver / microphone interface.
• 12Vdc AC adapter.
• 2 each 3’ RCA or 3.5mm patch
  cable.
• Installation instructions

Options:

• Add –3.5MM or –FL (Flying Leads) to P/N for alternate output cables.
