The WC1 converts the Cardkey L9 data output format to standard 2 wire Wiegand data format.

Features:

• Buffered reader data outputs
• Filament warming circuits extend the life of the L9 lamps.
• Terminal blocks for all inputs and outputs
• Power: 12VDC @ 10mA.
• 5v regulator for L9 reader power
• Reverse polarity protected
• Dimensions: L3.0 x W1.6 xH 0.5
• Temperature range –40-105C
• Weight .03lbs

Includes:

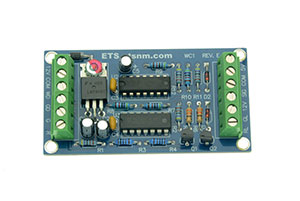

• WC1 Wiegand data converter board
• Installation instructions
