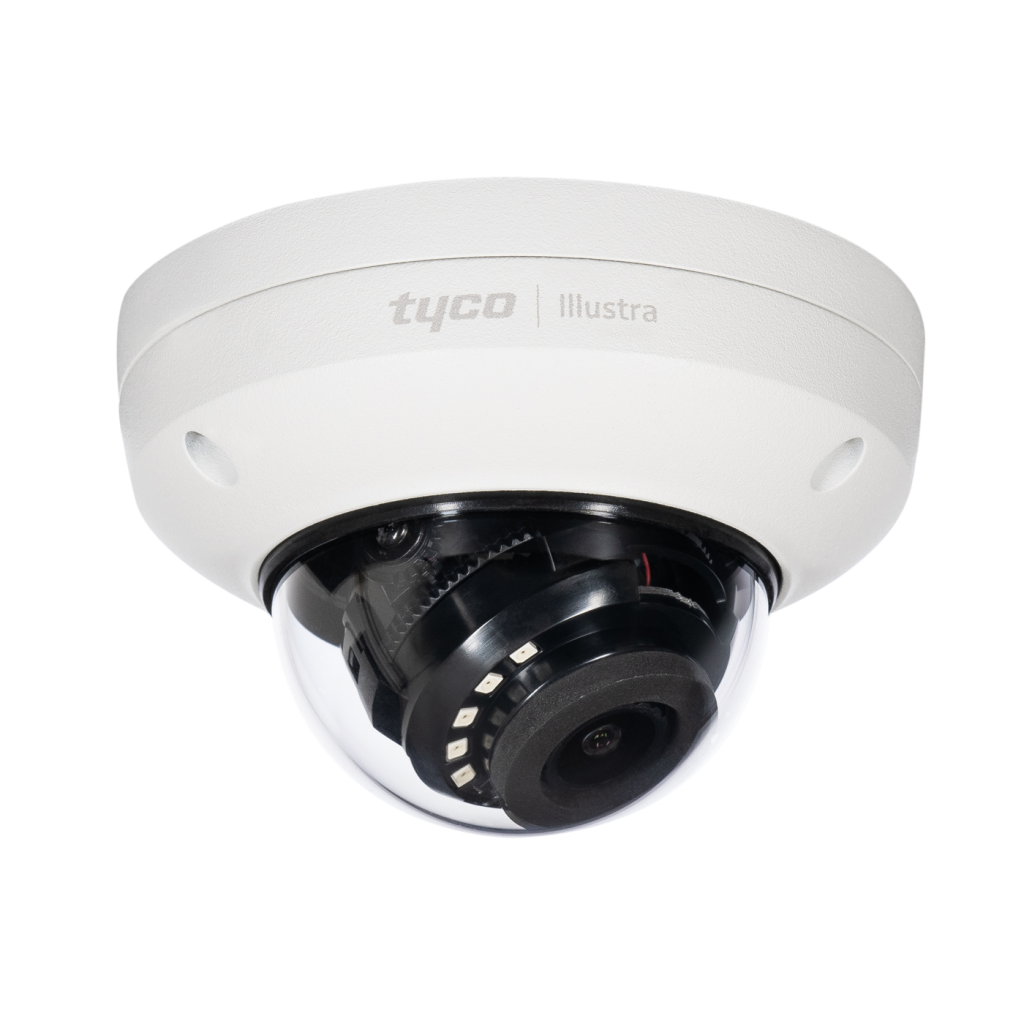

ExacqVision - IFS03-C10-OI03 - Illustra Flex G3 3MP Compact Dome, 2.8mm, Indoor/Outdoor, Clear, White, IP66/67 IK10, TDN w/IR, WDR
Part number:
IFS03-C10-OI03
Price:

The Flex Gen3 Compact Mini-Dome provides crisp and clear high-definition video at 3MP resolution and provides exceptional video quality and low-light performance in a small, compact form factor. Rated IP66/IP67 and IK10 for weather and vandal resistance, the camera can function in hard outdoor conditions. Equipped with Power over Ethernet, the Compact Mini-Dome reduces installation costs by eliminating the need for power cabling.



Features :

  • Easy to install with engineer friendly accessories and WiFi configuration
  • Built-in tamper detection for scene change, lens obscuration or blinding light.
  • Increased IR Distance across the range
  • High speed detection with 60FPS in 2MP resolution
  • 3MP resolution provides true HD quality images with video analytics along with improved WDR
  • VideoEdge TrickleStor technology for edge-based failover redundancy
  • Day/Night functionality allows quality video recording in low light conditions
  • Illustra IntelliZip offers powerful video compression technology for bandwidth management
  • Included in the Johnson Controls Cyber Solutions Product Security Program
  • As of August 2019, Illustra Flex cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Camera FeaturesFlex Gen3 3MP Compact Mini-Dome
Corridor ModeYes, Mirror & Flip
Day/NightAuto Low/ Auto Mid(Default)/ Auto High/ Manual/ Forced Color/ Force B&W
Digital Noise Reduction2D&3DNR
Dimensions112 x 72 mm (4.41 x 2.83 in)
EthernetRJ-45(10/100BASE-T)
Field of View100.13°/73.79°
Focal Length2.8mm
FocusFixed
Focus ControlFixed (peak focus at 5m)
Gain ControlAutomatic & Manual (3dB increments)
H.264Yes
H.265Yes
Housing ColorWhite
Imager1/2.8" 3.21MP CMOS
IntelliZipYes
IR DistanceUp to 15m (49.21ft)
Lens TypeFixed
Max Frame Rate60fps @ 2MP
Minimum IlluminationColor: min 0.05 lux (1/30sec, 30IRE) BW: 0.005Lux
MJPEGYes
Motion DetectionYes, 3 Zones
Onboard StorageMicro SD/SDHC/SDXC 1slot 512GB
ONVIF CompliantProfile S
Operating Temperature-40ºC to 50ºC (-40ºF to 122ºF)
Outdoor RatingIP67
Power DrawPoE: Max 8.1W
Power InputPoE 802.3af (802.3at Type 1)
Privacy Zones9
Resolution Options2048x1536/ 1920x1080/ 1664x936/ 1280x720/ 1024x576/ 640x480/ 640x360/ 480x360/ 384x288
Supported ProtocolsTCP/IP, IPv4, IPv6, TCP, UDP, HTTP, FTP, DHCP, WS-Discovery, DNS, DDNS, RTP, RTCP, RTSP, TLS, Unicast, Multicast, NTP, ICMP, IGMP, SMTP, WS-Security, IEEE 802.1x, PEAP, EAP-TLS, EAPoL, SSH, HTTPS, SOAP, WSAddressing, CIFS, SNMP, UPNP, RTSP, LLDP
S/N Ratio50db
Vandal-ResistantIK10
Video Streams3
White BalanceAutomatic Wide, Automatic Normal, Manual
Wide Dynamic RangeTrue WDR 140db Technologies
Name
Description
Size
Downloads
File
Datasheet
1.3mb
File
FG3 Compact Backbox Quick Start Guide
0.4mb
File
FG3 Outdoor Compact Quick Start Guide
0.6mb
File
Release Notes
0.9mb
File
Technical Drawings
0.9mb
