IPS05D2ISWIY

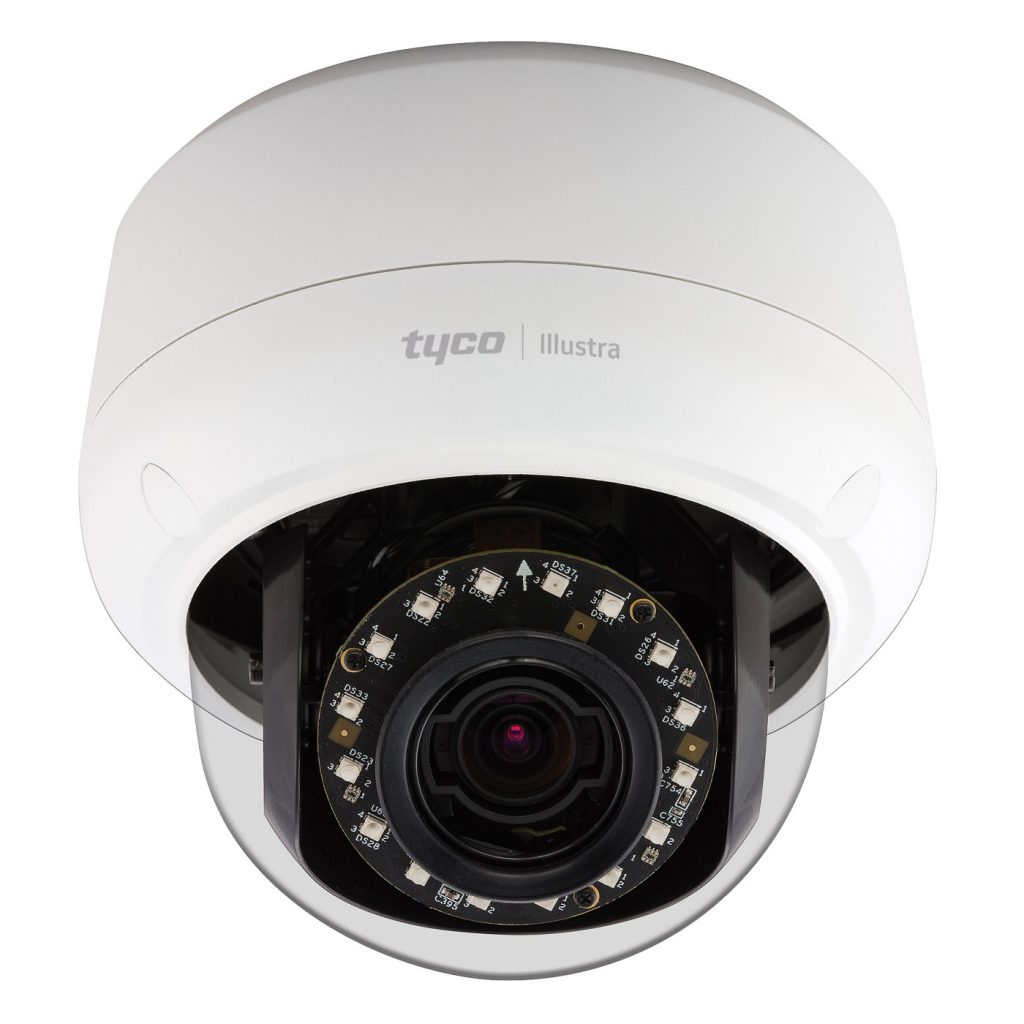

Offering exceptional performance in various lighting situations ranging from full sun to blackout conditions, the Pro IP Mini-Domes are ideal for detecting must-see details such as numbers on license plates, faces and even blurred objects and capturing them at full frame rates.

Part number:
IPS05D2ISWIY
Price:
  • Superior low light performance to see important details
  • Face detection enhancement to automatically increase video quality around detected faces
  • Blur detection to alert users when camera focus or cleaning is necessary
  • Quick and easy installation and configuration
  • One-touch focus and motorized zoom
  • Multiple motorized lens options
  • Expanded browser support – IE, Chrome, Firefox, Safari, Windows, Mac, Linux
  • Intelligent ROI-based compression for bandwidth management and reduced storage
  • Up to five individual programmable regions of interest
  • Hybrid streaming with easily accessible analog out
  • Operates in extreme temperatures as low as -30°C operating temperature on PoE (outdoor models)
  • Durable enclosure protects against vandalism, water and dust with IP66 and IK10 ratings
  • Edge-Ready support for exacqVision Edge
  • As of August 2019, Illustra Pro cameras support the directives of the National Defense Authorization Act (NDAA) for sale to U.S. federal and government agencies
Camera Features Pro Gen2 5MP Mini-Dome
B/W 1.8-3mm 3-9mm 9-22mm

0.01 lux 0.02 lux 0.03 lux
Color 1.8-3mm 3-9mm 9-22mm 0.3 lux 0.3 lux 0.4 lux
Corridor Mode No
Day/Night TDN
Environment Rating Indoor and Outdoor models available
Field of View 1.8-3mm 3-9mm 9-22mm

W: 103°x87°

T: 74°/59° W: 88°/64°

T: 30°/22° W: 29°/21°

T: 12°/9°
Focal Length No
Focus No
H.264 2592x1944@15fps
H.265 No
Housing Color White / Black
Imager 1/3.2˝ CMOS progressive scan
IntelliZip No
IR Distance Up to 20m
Lens Type Motorized Varifocal:
(3-9mm, 9-20mm)

Manual Varifocal:
(1.8-3mm)
MJPEG 1920x1440@15fps
Motion Detection No
Onboard Storage Yes
ONVIF Compliant Yes
Operating Temperature Indoor 14° to 122°F (-10° to 50°C) | Outdoor PoE: -22° to 122°F (-30° to 50°C) 24VAC: -40° to 122°F (-40° to 50°C) | Outdoor Extended Temperature: 140°F (60°C) for 4 hours a day with IR illuminators OFF
Outdoor Rating IP66
Power Input PoE IEEE 802.3af Class 3
Resolution Options 5MP, 3MP, 2MP, 1MP, 2592x1944, (2048x1536) QXGA, (1920x1440), (1920x1080), (1600x1200) UXGA, 1080, (1280x960) SXGA, (1920x1080) 1080p, (1280x720) 720p, (1024x768) 1024 XGA, (1024x576) PAL+, (768x576), (640x480) 640 VGA, (640x360) nHD, (480x360) 480, (384x288), (384x216)
Vandal-Resistant Ik10
Video Streams No
