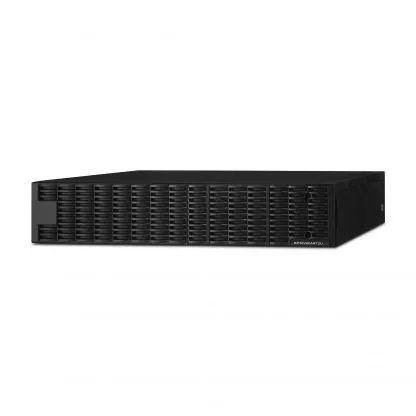

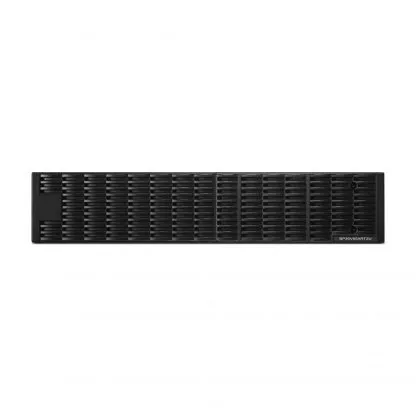

The CyberPower BP36V60ART2U rack/tower convertible Extended Battery Module (EBM), which extends battery runtimes during power outages, is designed for Smart App Online UPS systems OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U and OL1500RTXL2UN. This EBM takes 2U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply to full capacity.
Up to ten EBMs can be added to the UPS, and the module's DC plug-and-play power connectors allow for daisy-chaining additional EBMs to a UPS system. The BP36V60ART2U typically has a UPS charging time of 4 hours (0-90%), regardless of whether one or ten EBMS are installed, and comes with a three-year warranty.
Features:
- Extended Battery Module
Expands runtime and quickly restores full backup power with Fast Charge Technology. - Hot-Swappable Batteries
Can be replaced without powering down vital equipment. - Fast Charge Technology
Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS. - Smart Battery Management
Uses a three-cycle charging mode that improves battery life and reduces generated heat. - Plug-and-Play DC Connectors
Allow for daisy-chaining additional EBMs to a UPS system. - Replaceable DC Fuses
Are located behind an easy-access panel. - Resettable AC Circuit Breaker
Resets the UPS swiftly in case of an overload. - Rack/Tower Configuration
Allows for horizontal rack or vertical tower installation. - Three-Year Warranty
Covers defects in materials and workmanship in the product under normal use and conditions within three years of the purchase date. See warranty for details.
| General | |
| Amperage | 60A |
| DC Voltage | 36 VDC |
| Battery | |
| Battery Quantity | 6 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Built-in Charger | Yes |
| Expansion Ready (Daisy-Chain) | Yes |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | (1) RB1290X3R and (1) RB1290X3L |
| Typical Recharge Time | 4 Hours (0% to 90% charged) |
| User Replaceable Battery | Yes |
| Physical | |
| Color | Black |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 43.18 x 8.89 x 42.93 (cm) |
| Physical Dimensions – (WxHxD) (in) | 17 x 3.5 x 16.9 (in) |
| Physical Dimensions – (WxHxD) (mm) | 432 x 89 x 429 (mm) |
| Weight (kg) | 22.95 |
| Weight (lb) | 50.6 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 29.71 |
| Shipping – Weight (lb) | 65.5 |
| Shipping Dimensions – (WxHxD) (cm) | 54.61 x 24.77 x 57.15 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 21.5 x 9.75 x 22.5 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 546.1 x 247.65 x 571.5 (mm) |
| Environmental | |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | 5 – 113 °F (-15 – 45 °C) |
| Compatibility | |
| UPS Models | OL1000RTXL2U, OL1000RTXL2UN, OL1500RTXL2U, OL1500RTXL2UN |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| CSA C22.2 NO.107.3 | |
| FCC Part 15 Class B | |
| Warranty | |
| Extended Warranty Option | WEXT5YR-BP1 |
| Product Warranty | 3 Year Limited Warranty |
