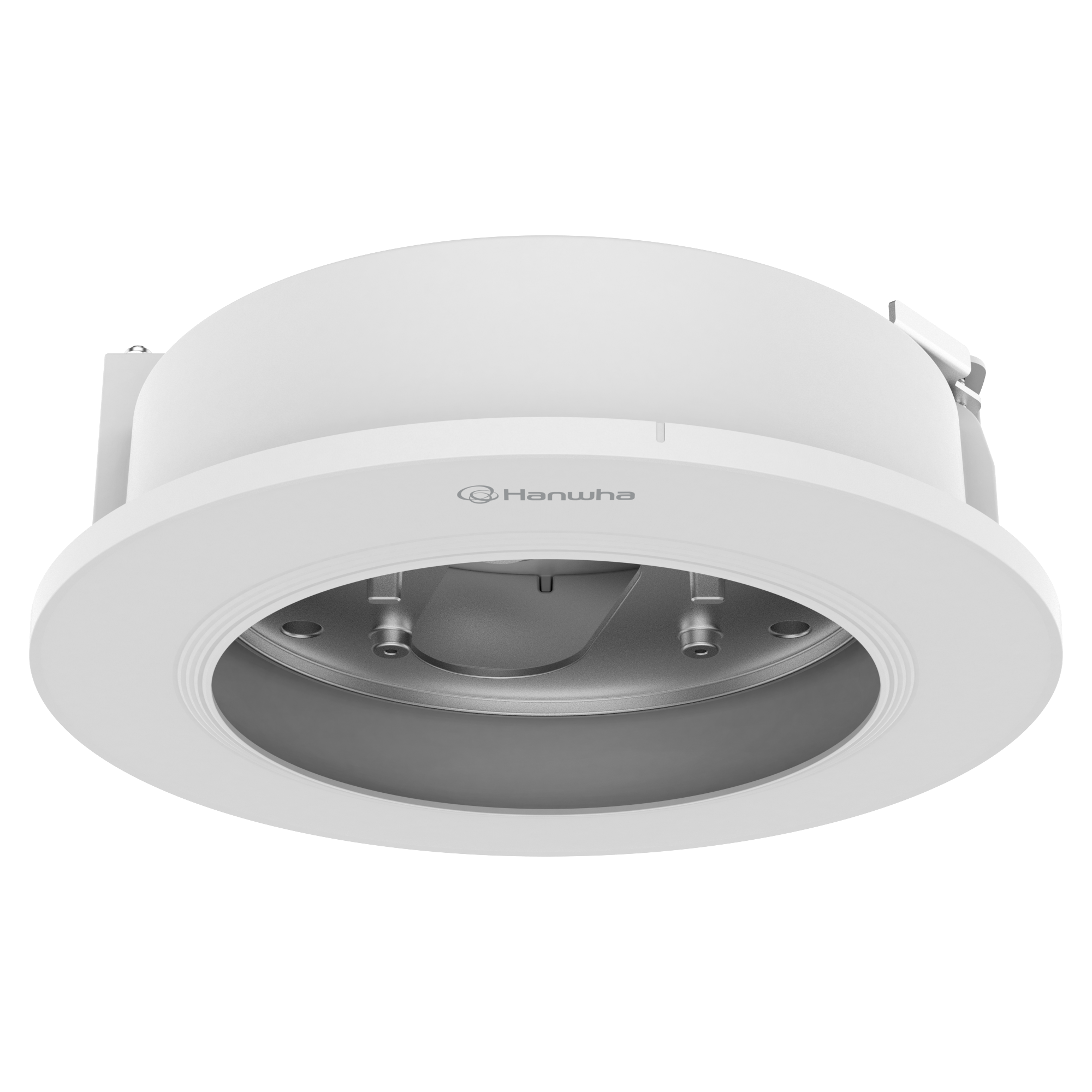

Hanwha - SHD-2000FPW - Flush Mount
Part number:
SHD-2000FPW
Price:
Plenum rated in-ceiling mount compatible with PNM-C16013RVQ
Features:
• Material : Enclosure : Aluminum / Top cover : Polycarbonate(PC)
• Color : White
• Product dimensions / weight : ø265.1x96.8mm(ø10.44x3.81") / 1500g (3.31lb) ※ Ceiling hole size : ø240mm (ø9.45")
• Max. load : 3.5kg (7.72lb) ※ Maximum load of ceiling board : 6.5kg (13.3lb)
| Specification | |
| Mechanical | |
| Color | White |
| Material Enclosure | Aluminum, Top cover : Polycarbonate(PC) |
| RAL code | RAL9003 |
| Product dimensions / weight | ø265.1x96.8mm(ø10.44x3.81") / 1500g (3.31lb) ※ Ceiling hole size : ø240mm (ø9.45") |
| Tile thickness | 10~70mm (0.4~2.8") |
| Mount Screw size | TR20 |
| Max. load | 3.5kg (7.72lb) ※ Maximum load of ceiling board : 6.5kg (13.3lb) |
| Conduit hole | 19.1mm(3/4") (M25), 12.7mm(1/2") (M20) |
| Supported products PNM-C16013RVQ ※ When assembled with camera, IR LED will be covered by rim. | |
