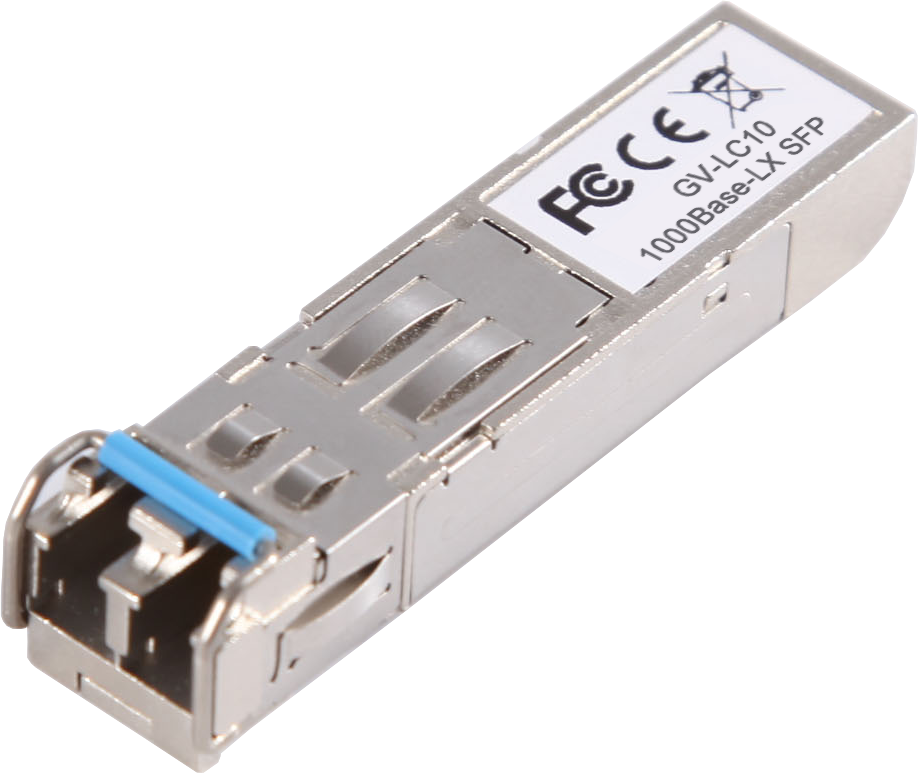

The SFP Transceiver is designed to plug into the SFP port of the GV-POE Switch and is the interface between the switch and optical fiber cables. This product complies with IEEE 802.3z 1000BaseSX/LX standards. The SFP Transceiver is a hot swappable device; you can add or remove the device without powering down.
| Model GV-LC10 | |
| Network Standard | IEEE 802.3z 1000BaseLX |
| Wavelength | 1310 |
| Media | SMF |
| Distance | 10 um, 10 km (32808 ft) |
| TX Power (dBm) | -9.5 ~ -3 |
| RX Sensitivity (dBm) | Max. -20 |
| Connector Type | LC |
| Operating Temperature | 0 °C ~ 70 °C (32 °F ~ 158 °F) |
| Regulatory | RoHS compliant |
