ALT-150-24
Part number:
ALT-150-24
Price:

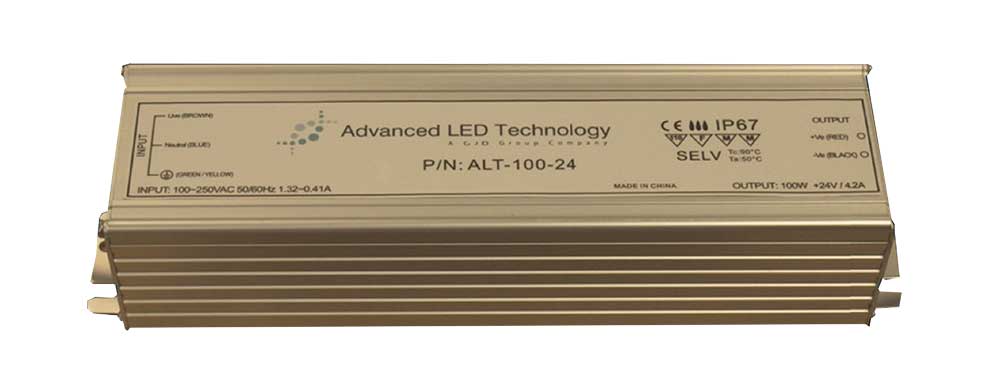

The Clarius range of LED lighting Power Supply Units are IP67 rated, constant voltage designed to power the Clarius range of LED lighting products.



They feature a regulated 24V DC output supplying continuous full rated current to load. The universal mains input voltage allows the power supply to be used across a wide geographical area while the highly efficient switch mode design ensures low operating costs and cool running.

MODELALT-150-24
Power:150W
Output:24V DC / 6.25A
Input:170-250V AC / 1.25 A 50/60 Hz
Rating:IP67
Dimensions:8.42in x 1.73in x 2.48in (214 x 44 x 63mm) L x W x H
Power Upto Either:9x IS8, IS9, VS-CW or 5x IM8,IM9,VM-CW or 3x IL8, IL9,VL-CW or 3x IX8,IX9,VX-CW
Name
Description
Size
Downloads
File
Datasheet
0.3mb
