Description
The IPA is a simple yet powerful input/output controller, which is designed to convert any type of analogue sensor to an IP system, or vice versa.

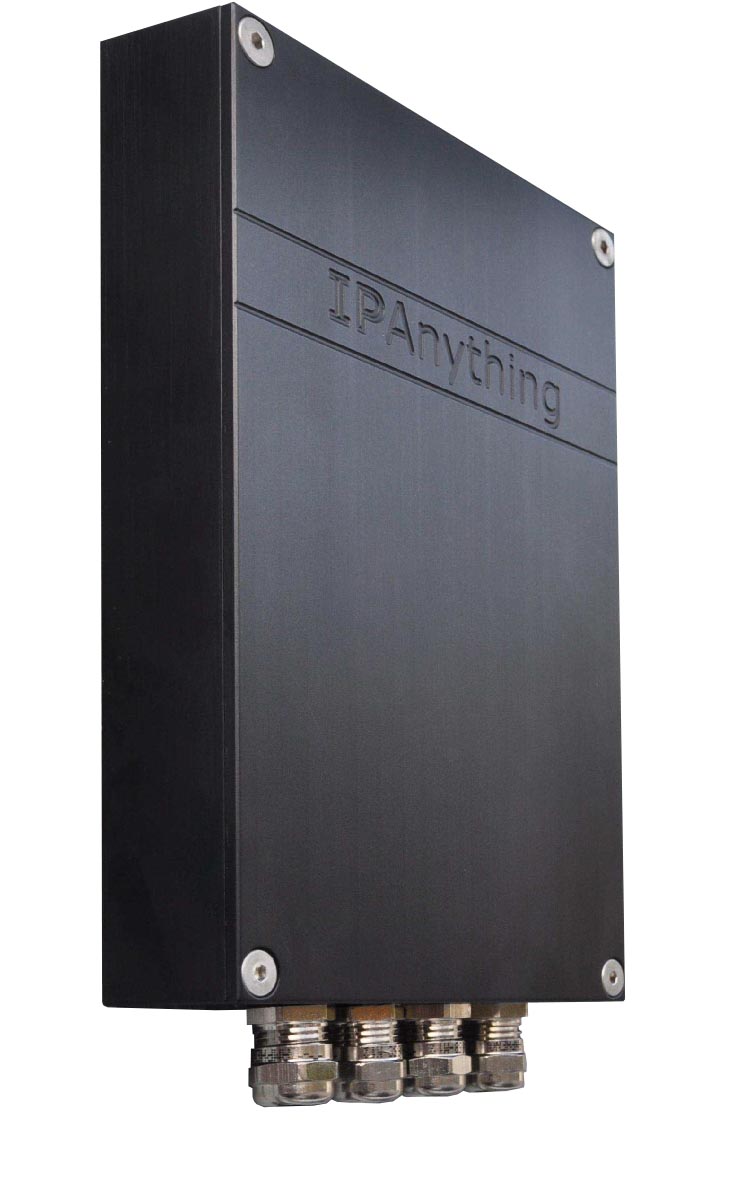

The IPAnything is built in a compact, heavy duty waterproof housing. It is fitted with a 12V/24V DC socket to power the sensor, four alarm inputs, three relay outputs and an analogue input, this ensures that the IPAnything can truly handle all types of equipment.
Features:
- Convert input signals to IP alarms
- Integrate alarms with VMS or control cameras directly
- 12V/24V DC output for powering external units
- Network controlled relay outputs
- Intuitive and powerful web based user interface
- Heavy duty water proof design
- Power over Ethernet
| DIGITAL INPUT | 4 x digital inputs, high / low / rising edge / falling edge / frequency counting |
| ANALOG INPUT | 1 x 4-20 mA or 0-10V |
| ALARM OUTPUT | 3 x relay. Max 30V, 200mA. N/C and N/O |
| POWER OUTPUT | 1 x 12V DC, max 1A or 24V DC, max 0.5A |
| NETWORK ALARMS | User configurable HTTP web requests |
| POWER SUPPLY | Power over Ethernet (48V DC) |
| POWER CONSUMPTION | Max 12W, PoE class 3 |
| OPERATING TEMPERATURE | - 30°C to + 60°C |
| INTERFACE | Ethernet IEEE 802.3af, TCP/IP. Web browser user interface |
| MOUNTING | 4 x M6 (80 x 155mm), DIN-rail or mounting screws |
| ENCLOSURE RATING | IP66 |
| COLOUR | Black |
| WEIGHT | 0.6Kg |
