Hanwha - SBP-317HMWP - Hanging Mount with Storage (White)
Part number:
SBP-317HMWP
Price:

The SBP-317HMWP Hanging Cap Adapter is an installation solution that provides extra storage space in the cap above the camera, used to mount installation equipment, such as HPoE injector, fiber converter etc.



Features:

  • Can be used with PNM-9084RQZ / PNM-9084RQZ1 / PNM-9085RQZ / PNM-9085RQZ1 cameras
  • Compatible with SBP-390WMW2 wall mount

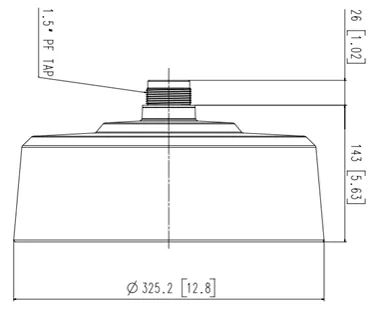

  • Dimensions: Ø325.2 x 169mm (Ø12.8” x 6.65”)
  • 9.26 lb, 4.20Kg
  • Mount screw size : NPT 1 1/2"
  • White
MECHANICAL
ColorWhite
MaterialAluminum
RAL codeRAL9003
Product dimensions / weightΦ325x169mm, 4.20Kg
Mount Screw sizeTR20
Supported productsPNM-9084RQZ/RQZ1, PNM-9085RQZ/RQZ1
Name
Description
Size
Downloads
File
Manual
1.8mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.4mb
