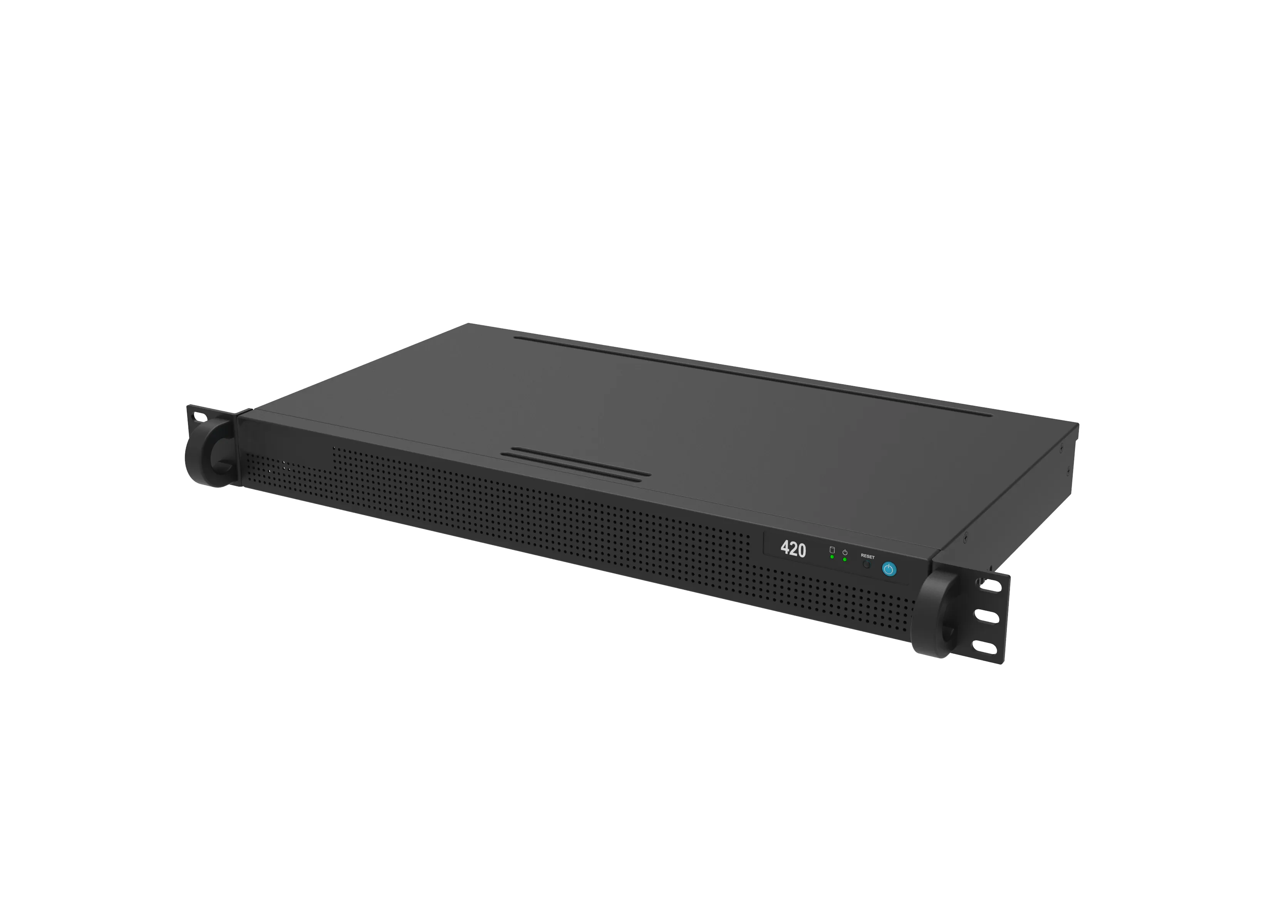

Hanwha - CMVR 420 - Wisenet SKY CMVR 420
Part number:
CMVR 420
Price:
Wisenet SKY CMVR 420 with 10TB (Rack Form Factor) The Wisenet SKY Cloud Managed Video Recorder (CMVR) stores video and acts as a gateway from your premises to the Wisenet SKY Cloud Data Center where your video can also be stored and managed by the Wisenet SKY Cloud VMS. It provides secure video storage & video streaming, intelligent bandwidth management, and monitoring of cameras.
SYSTEM
| Maximum Cameras 1MP | / 30 |
| Maximum Cameras 4MP | / 25 |
| Maximum Cloud Analytics | / 10 |
| Hard Disk Drive | 4TB 15 days for 15 cameras @ 1MP / 10TB 20 days for 30 cameras @ 1MP |
| Network ports | Dual gigabit ethernet RJ-45 |
| Video output | 1x VGA, 1x DVI / 1x VGA, 1x HDMI, 1x DisplayPort |
| Indicator Lights | Power, disk activity |
| Operating System | Embedded Linux |
| USB Ports | x USB 3.0 (front) |
| Included accessories | Power cord, rack mount brackets |
| Rack Mount Brackets | Included |
| Mechanical | Form Factor | Rack mount or shelf/tabletop mount |
| Color / Material | Black / Metal | |
| Dimensions | 1U 16.81" x 9.88" x 1.75" (427mm x 251mm x 45mm) | |
| Weight | 8.95lb (4.06kg) / 9.76lb (4.42kg) | |
| Electrical | Power Supply | Internal, 65 W / 60 W |
| Power Input | ~ 240V AC | |
| Environmental | Operating Temperature | 32°F to 95°F (0°C to 35°C) |
| Operating Humidity | 0% to 70% RH, non-condensing | |
| Certification | FCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA | |
