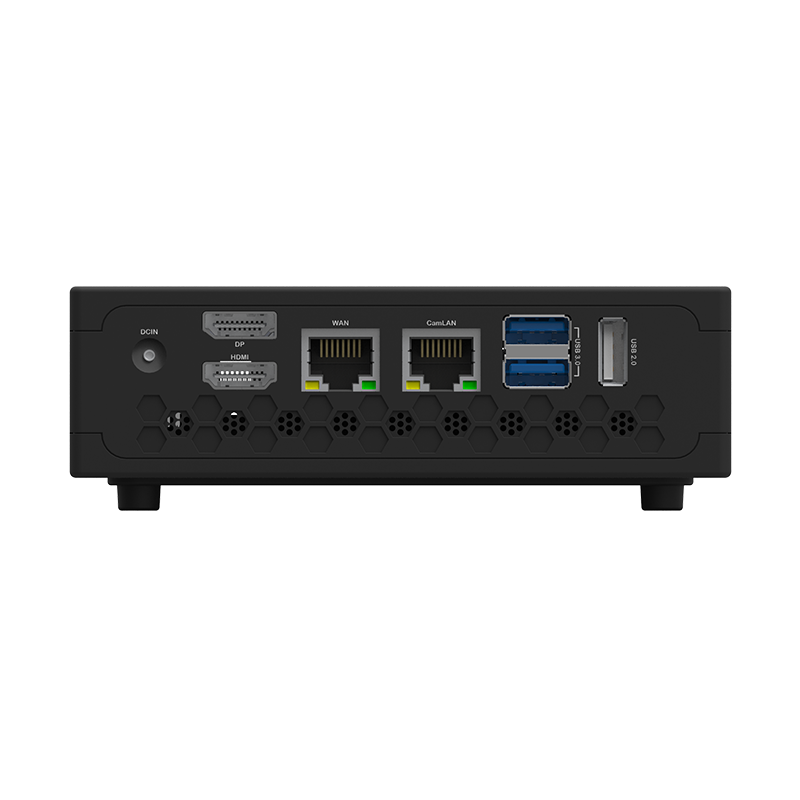

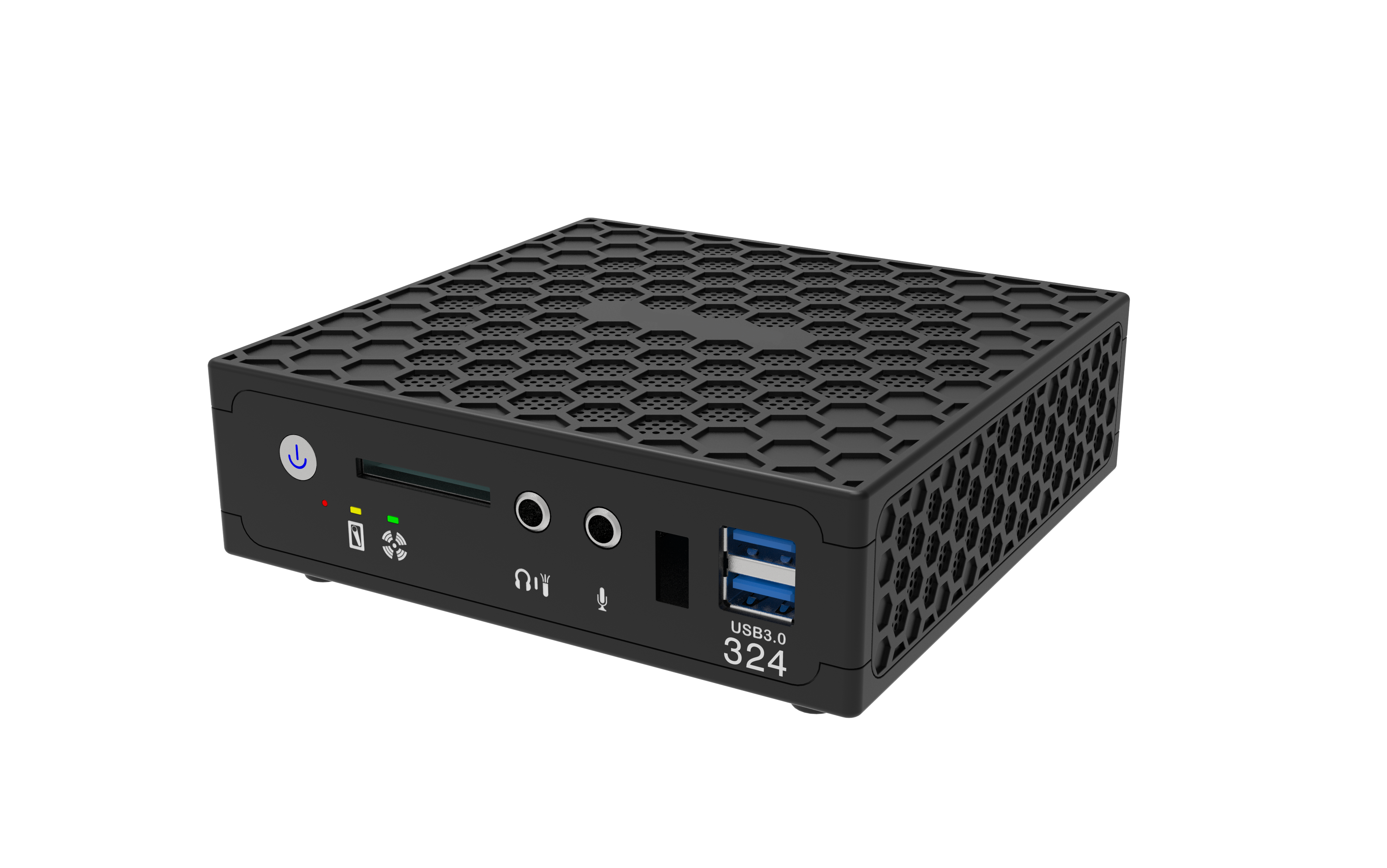

Hanwha - EN-BR324-0 - WiseNet SKY CMVR 324 with 2TB (Compact Form Factor)
Part number:
EN-BR324-0
Price:
Wisenet SKY CMVR 324 with 2TB (Compact Form Factor)
Features:
- Supports up to 12 @ 1MP cameras ~ 8 @ 4MP cameras*
- Supports up to 5 cloud analytics, with supported license
- Intelligent Bandwidth Management with local recording up to 10 days (12 cameras @ 1MP)
- Dual gigabit network ports
- HDMI & DisplayPort video outputs for local display
- Compact form factor for wall or shelf mounting
- Fully cloud managed
- Supports motion or continuous recording
- Front panel indicator lights
- Supports Wisenet and ONVIF conformant IP cameras
- Complete encryption of video in transit and at rest
| SYSTEM | ||
| Maximum Cameras @ 1MP | 12 / 12 | |
| Maximum Cameras @ 4MP | 8 / 8 | |
| Maximum Cloud Analytics | 5 | |
| Hard Disk Drive | 2TB / 2TB 2TB 10 days for 12 cameras @ 1MP | |
| Network ports | Dual gigabit ethernet RJ-45 / Single gigabit ethernet | |
| PoE Ports | 0 / 4 PoE ports of IEEE802.3af class 3 (325 only) | |
| Video output | 1x HDMI, 1x DisplayPort | |
| USB ports | 2x USB 3.0 | |
| Operating System | Embedded Linux | |
| Included accessories | Wall mount, power supply | |
| Ordering SKU | EN-BR324-0 / EN-BR325-0 | |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL | ||
| Mechanical | Form Factor | Compact wall or shelf mount |
| Color / Material | 324: Black / Plastic, 325 Black / Metal | |
| Dimensions | 5.00" x 5.01" x 1.75" (125mm x 127mm x 47mm) 324 5.00" x 6.77" x 2.95" (127mm x 172mm x 75mm) 325 | |
| Weight | 1.4lb (0.64kg) 324 / 4.24lb (1.92kg) 325 | |
| Electrical | Power Supply | Included, 20 W / 22 W |
| Power Input | 100 ~ 240V AC | |
| Environmental | Operating Temperature | 32°F to 95°F (0°C to 35°C) |
| Operating Humidity | 0% to 70% RH, non-condensing | |
| Certification | FCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA | |
