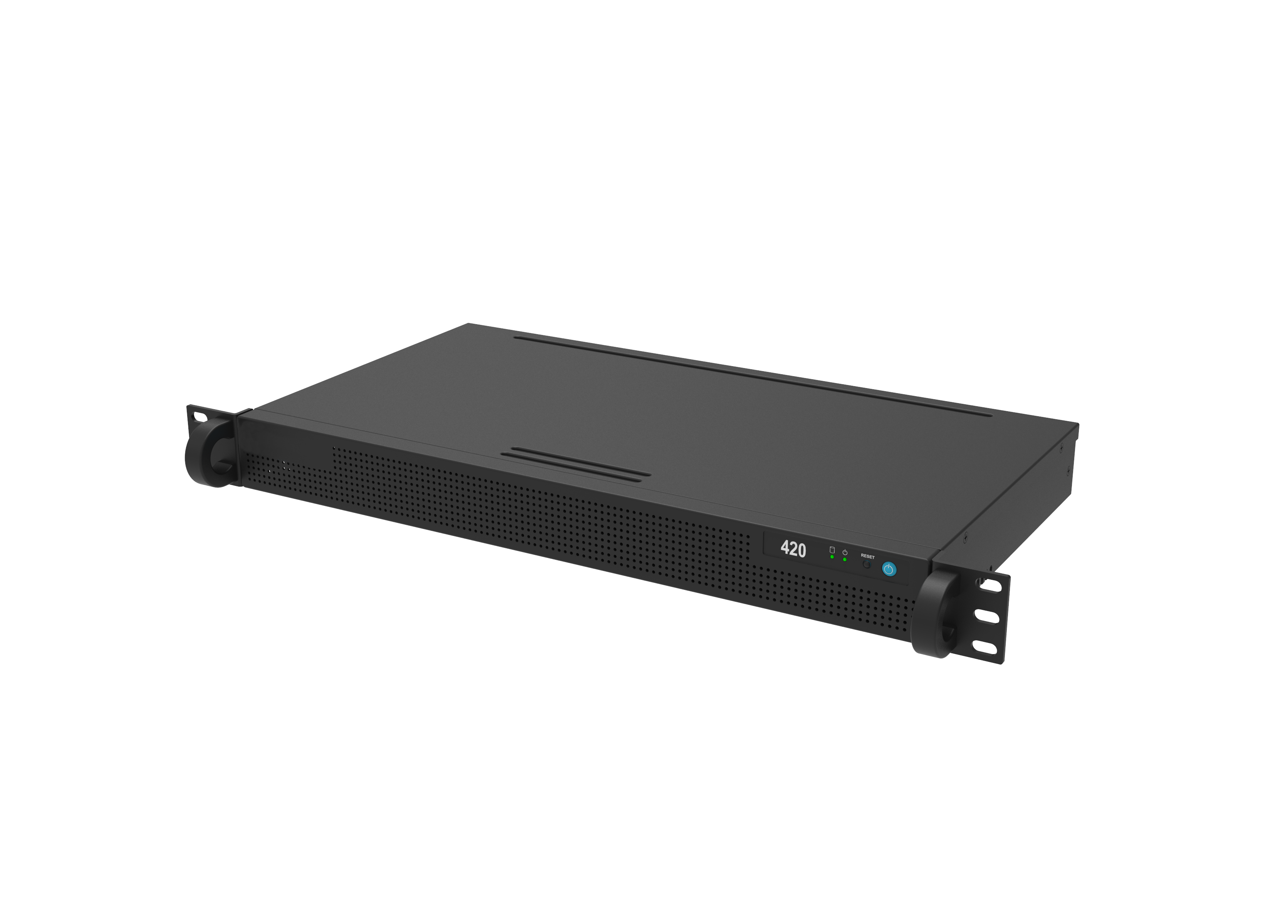

Hanwha - EN-BR420-0 - Wisenet Sky Cmvr 420 With 10Tb (Rack Form Factor)
Hanwha - EN-BR420-0 - Wisenet Sky Cmvr 420 With 10Tb (Rack Form Factor)
Part number:
EN-BR420-0
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

Wisenet SKY CMVR 420 with 10TB (Rack Form Factor)



Features:

  • Supports up to 30 @ 1MP cameras ~ 25 @ 4MP cameras*
  • Supports up to 10 cloud analytics, with supported license
  • Intelligent Bandwidth Management with local recording up to 20 days
  • Dual gigabit network ports
  • HDMI & DisplayPort video outputs for local display
  • 1U Rack mount
  • Fully cloud managed
  • Supports motion or continuous recording
  • Front panel indicator lights
  • Supports Wisenet and ONVIF conformant IP cameras
  • Complete encryption of video in transit and at rest
SYSTEM
Maximum Cameras 1MP15 / 30
Maximum Cameras 4MP12 / 25
Maximum Cloud Analytics5 / 10
Hard Disk Drive4TB 15 days for 15 cameras @ 1MP / 10TB 20 days for 30 cameras @ 1MP
Network portsDual gigabit ethernet RJ-45
Video output1x VGA, 1x DVI / 1x VGA, 1x HDMI, 1x DisplayPort
Indicator LightsPower, disk activity
Operating SystemEmbedded Linux
USB Ports2 x USB 3.0 (front)
Included accessoriesPower cord, rack mount brackets
Rack Mount BracketsIncluded
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
MechanicalForm FactorRack mount or shelf/tabletop mount
Color / MaterialBlack / Metal
Dimensions1U 16.81" x 9.88" x 1.75" (427mm x 251mm x 45mm)
Weight8.95lb (4.06kg) / 9.76lb (4.42kg)
ElectricalPower SupplyInternal, 65 W / 60 W
Power Input100 ~ 240V AC
EnvironmentalOperating Temperature32°F to 95°F (0°C to 35°C)
Operating Humidity0% to 70% RH, non-condensing
CertificationFCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA
Name
Description
Size
Downloads
File
Wisenet SKY Rack CMVR Specifications
1.1mb
File
Wisenet SKY Quick Start Guide
1.5mb
File
Wisenet SKY A&E Specifications
0.8mb
File
Wisenet SKY CMVR Catalog
0.8mb
File
Wisenet SKY Brochure
1.8mb
File
Hanwha Techwin America - NDAA Compliant Product List 5-2022
0.5mb
