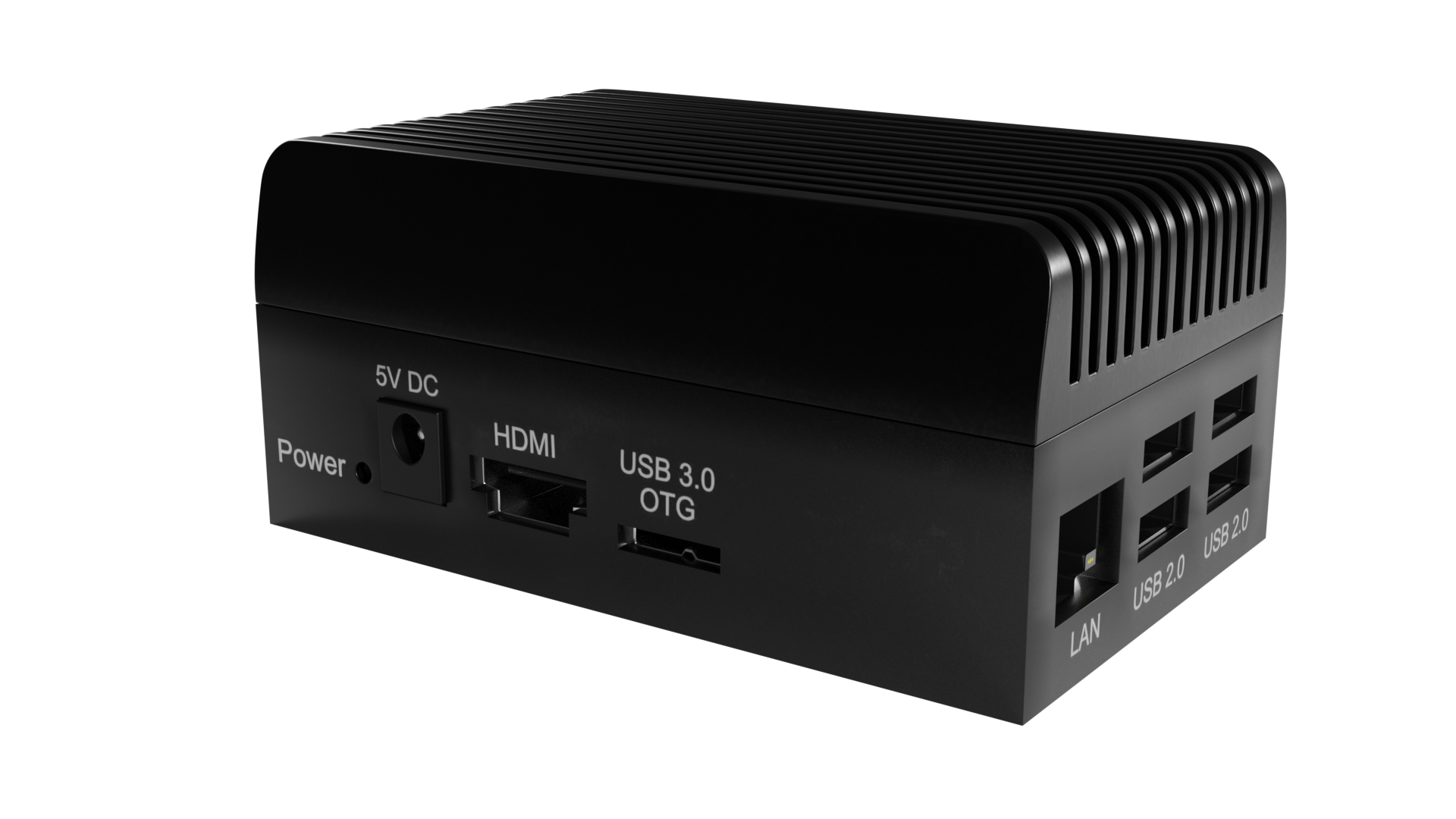

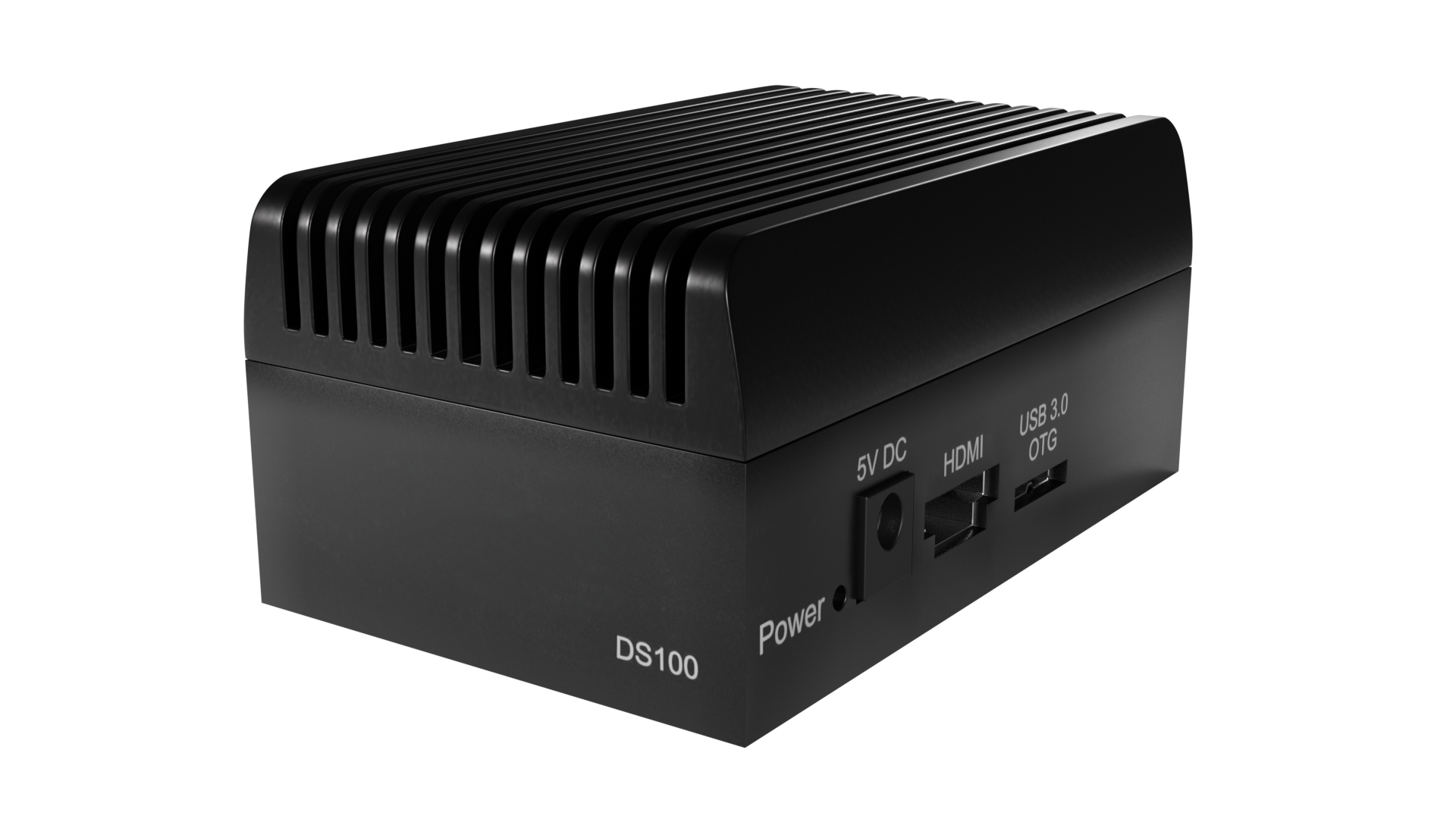

Hanwha - EN-DS100-0a - Wisenet Sky Local Display Station Supports a single 1080p
Part number:
EN-DS100-0a
Price:
Wisenet SKY Local Display Station DS100 (Single Monitor Output)
Features:
- Ultra compact fanless design
- Easy setup & management
- Automatic display of Layouts from cloud VMS
- Low power consumption
- High performance hardware video decoding
- Supports up to 5 configurable static layout views
- Supports up to 4 user configurable view sequences
- Supports webpage tiles for embedding external content
| SYSTEM | ||
| Resolution Output | 1 x 1080p / 1 x 4K or 2 x 1080p | |
| Video Output | 1 x Full Size HDMI 1.4 / 1 x Full Size HDMI 1.4, with included USB-C to HDMI adaptor | |
| Maximum throughput | Up to 54 Mbps / Up to 160 Mbps | |
| Streams | Up to 32 (max. 16 on-screen) / Up to 64 (max. 16 on-screen) | |
| Webpage tiles | Maximum 1 recommended / Maximum 3 recommended | |
| Network Interface | Gigabit ethernet RJ-45 / Gigabit ethernet RJ-45, 802.11 ac WiFi | |
| USB Ports | 1x USB 3.0, 4 x USB 2.0 / 4 x USB 3.1, 1 x USB-C Display Out | |
| Layout Configurations | 1x1, 2x2, 3x3, 4x4, 1+2, 2+3, 1+5, 5+1 and more | |
| On Screen Display | 4 strings per OSD entry | |
| Web User Interface | Web GUI for remote configuration and maintenance | |
| Operating System | Embedded Linux | |
| Latency | <200 ms | |
| Views | 5 user-configurable static views, 4 user-configurable view sequences | |
| Included accessories | AC-DC adapter, VESA Mount bracket & screws, | |
| Included accessories | Power cord, rack mount brackets | |
| Rack Mount Brackets | Included | |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL | ||
| Mechanical | Form Factor | Shelf/tabletop mount or VESA 100x100, 75x75 mounting (included) |
| Color / Material | Black / Metal , Black / Plastic | |
| Dimensions (WxDxH) | 3.74” x 2.58” x 1.77” / 4.60” x 1.41” x 4.40” | |
| Weight | 1.14lb (0.52kg) / 2.86lb (1.3kg) | |
| Electrical | Power Supply | External AC-DC converter, included, 5V @ 6 W / 19V @ 25W |
| Power Input | 100 ~ 240V AC 50/60HZ | |
| Environmental | Operating Temperature | 32°F to 122°F (0°C to 50°C) / 32°F to 104°F (0°C to 40°C) |
| Operating Humidity | 0% to 70% RH, non-condensing | |
| Certification | FCC, CE, UL, NOM | |
