Hanwha - EN-SU306p-0 - Wisenet SKY Location Setup Fee Bridge 306+
Part number:
EN-SU306p-0
Price:

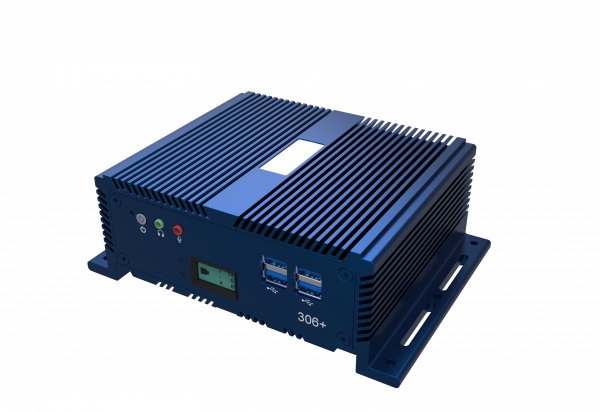

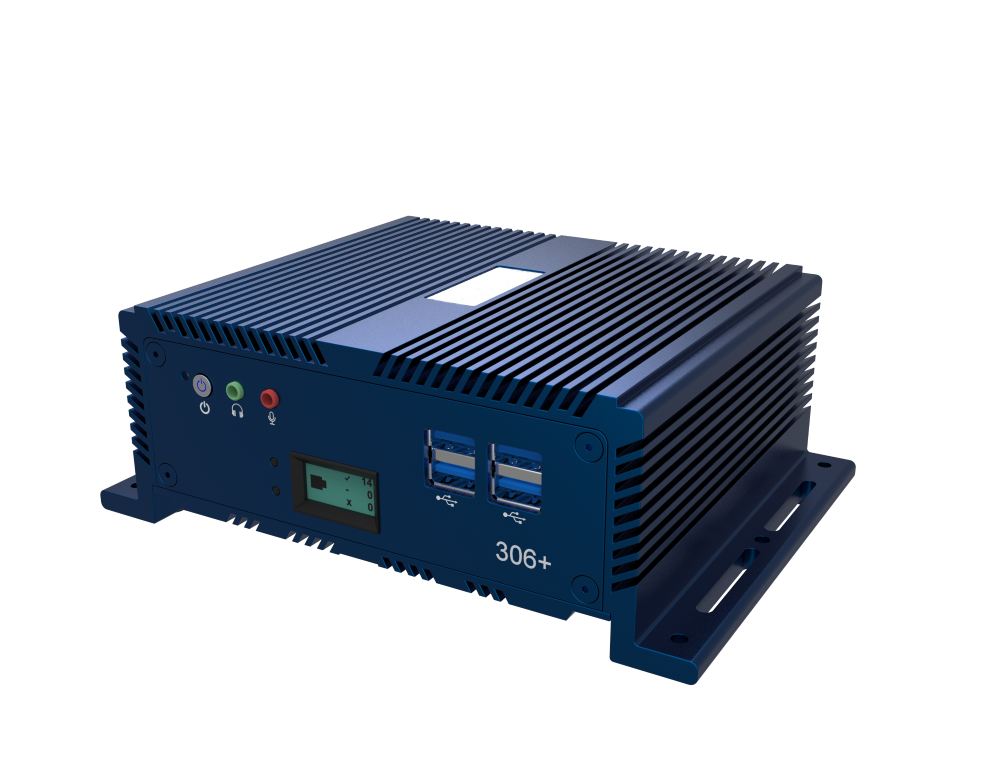

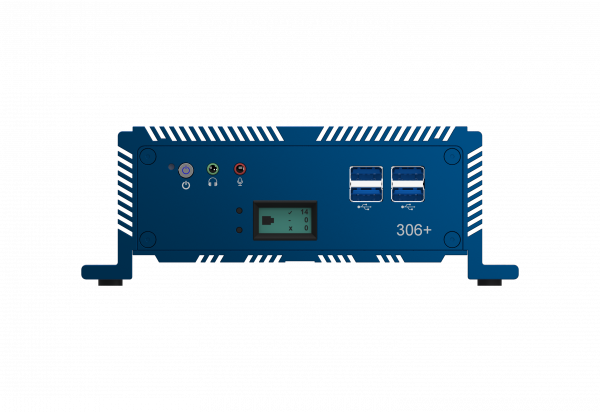

Wisenet SKY Location Setup Fee Bridge 306+ (Compact and Ruggedized Form Factor)



Features:

  • Supports up to 44 @ 1MP cameras ~ 35 @ 4MP cameras*
  • Supports up to 15 cloud analytics, with supported license
  • Intelligent Bandwidth Management with local buffering records up to 2 days
  • Dual gigabit network ports
  • Fully cloud managed
  • Supports motion or continuous recording
  • Supports Wisenet and ONVIF conformant IP cameras
  • Complete encryption of video in transit and at rest
  • Ruggedized chassis for extended temperature range, solid state disk, fanless design
  • LCD display for connectivity and operational status
SYSTEM
Maximum Cameras @ 1MP25 / 44
Maximum Cameras @ 4MP20 / 35
Maximum Cloud Analytics5 / 15
Hard Disk Drive1TB, 800Gb usable for video storage, Solid State Drive

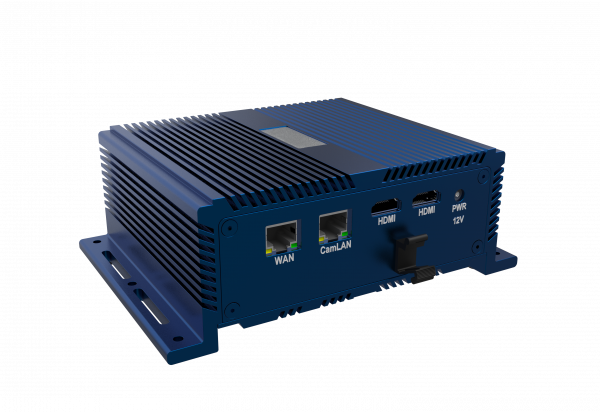

Network portsDual gigabit ethernet RJ-45
PoE PortsNA
IndicatorsPower, Disk Activity, Temperature, IP Address & Speed, Serial number, Attach ID
Video output1x HDMI, 1x VGA
USB ports4x USB 3.0 / 4x USB 3.0, 2x USB 2.0
Operating SystemEmbedded Linux
Included accessoriesWall mount, power supply
Rack Mount BracketsNA
Ordering SKUEN-SU304P-0 / EN-SU404P-0
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
MechanicalForm FactorCompact wall or shelf mount
Color / MaterialBlue, Aluminum
Dimensions180 x 127 x 64 mm
7.08 x 5.00 x 2.50 in
Weight2.25Lb (1.2kg) / 2.72Lb (1.23kg)
ElectricalPower SupplyIncluded, 20 W / 30 W
Power Input100 ~ 240V AC
EnvironmentalOperating Temperature14°F to 122°F (-10°C to 50°C)
Operating Humidity0% to 70% RH, non-condensing
CertificationFCC, UL, CE, UKCA, PSE, NOM, ACM, RoHS, CTick, WEEE, NDAA
