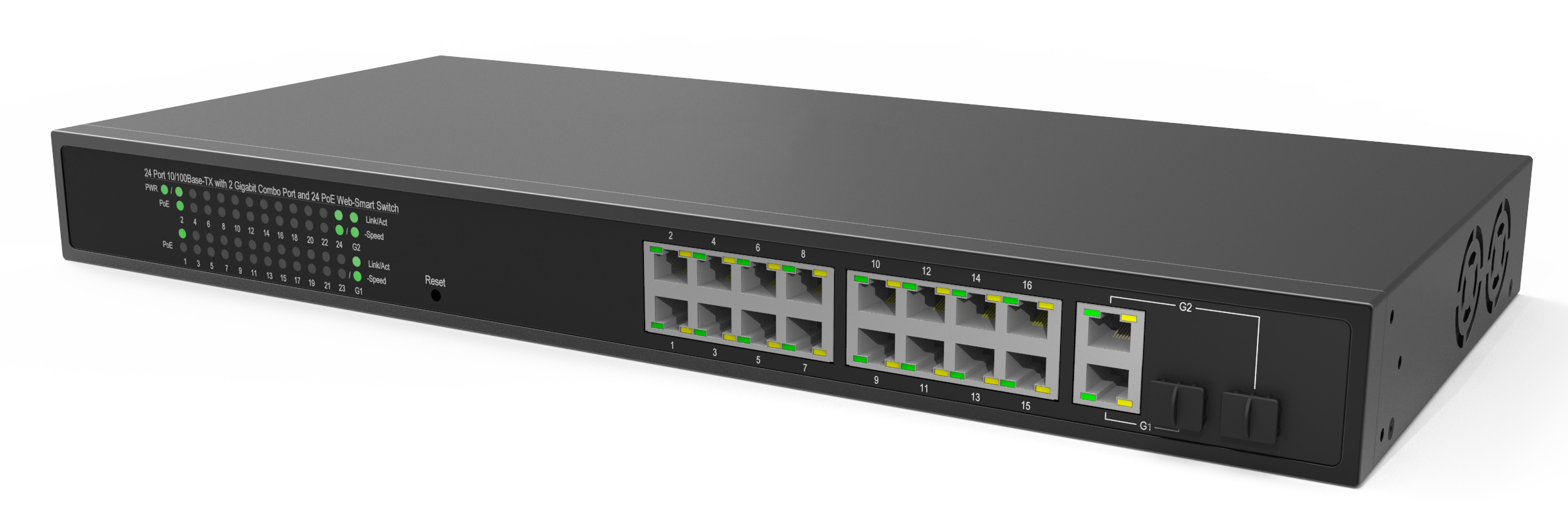

Hanwha - EN-SW18m-001 - WiseNet SKY Switch SW18m (16-Port Managed PoE+, with 2xGig Uplink)
Part number:
EN-SW18m-001
Price:
Wisenet SKY Switch SW18m (16 Port Managed POE+, with 2xGig Uplink)
Features:
- Reports the status of each port
- Configured to use either DHCP or a static IP address
- Power can be turned on and off for each port
- Reports for network traffic information for each port
- Measures current PoE power draw for each PoE port
- Enables web management on a port by port basis
| MODEL | EN-SW18m-001 |
| Total Number of Ports | 18 ports (16 PoE, 2 Uplink) |
| PoE Ports | 16 PoE |
| Uplink Ports | 2 Uplink +2 Gig Combo Uplink |
| Power Supply | Built-In Power Supply |
| Voltage Range Maximum | AC100-240V |
| PoE Power Budget | 250W |
| Speed | 10/100Mbps |
| Dimension (L x W x H) | 440 x 200 x 44 mm 17.3 x 7.9 x 1.7 in |
| Switching Capacity | 7.2G |
| MAC Address | 4K MAC address table |
| Temperature Range | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -40°C to 70°C / -40°F to 158°F |
| PoE Specifications | IEEE802.3af & 802.3at |
| Rack Mountable | Yes (Mount Ears Included) |
| Weight | 6.88lb (3.12kg) |
Name
Description
Size
Downloads
File
Wisenet SKY Managed Switch Specifications
1.2mb
File
Wisenet SKY A&E Specifications
0.8mb
File
Wisenet SKY Brochure
1.8mb
File
Hanwha Techwin America - NDAA Compliant Product List 5-2022
0.5mb
