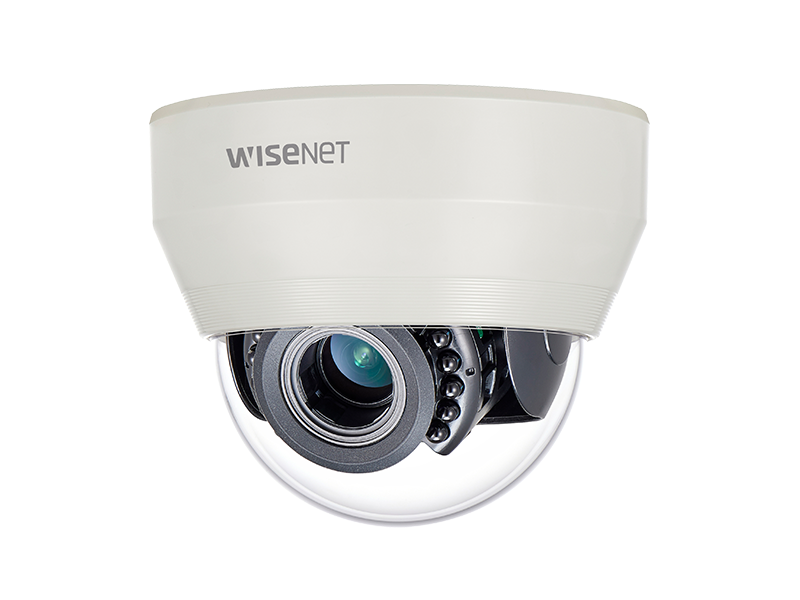

Hanwha - HCD-7070RA - 4MP Wisenet HD+ Indoor Dome Camera
Part number:
HCD-7070RA
Price:
Wisenet HD+ 4MP IR indoor dome camera, AHD or CVBS formats are available, manual vari-focal Lens (3.1X) (3.2-10mm), true D/N, 24VAC/12VDC, IR distance 65 feet
Compatible with HRX- Series DVRs
Features:
- QHD (2560 x 1440, 30fps) resolution
- 0.16 Lux@F1.6 (Color), 0 Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), DWDR, Motion detection
- Transmission distance Max. 500m
- Easy installation (Plug & play), Dual power
| Model | HCD-7070RN/P |
| VIDEO | |
| Imaging Device | 1/3" 4M CMOS |
| Total Pixels | 2,720(H) x 1,536(V) |
| Effective Pixels | 2,688(H) x 1,520(V) |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.16 Lux (F1.6) B/W : 0 Lux (IR LED on) |
| S / N Ratio | 52dB (AGC off, Weight on) |
| Video Output | BNC (AHD), Additional CVBS for installation (2Pin connector type) |
| Resolution | 2560 x 1440 |
| Max. Framerate | 30fps @ 4M |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 63° / 0° ~ 355° |
| LENS TYPE | |
| Focal Length (Zoom Ratio) | 3.2 ~ 10mm (3.1x) varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H : 93.48˚(Wide) ~ 29.44˚(Tele) / V : 50.47˚(Wide) ~ 16.64˚(Tele) / D : 112.53˚(Wide) ~ 33.7˚(Tele) |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Manual |
| Lens Type | DC Auto Iris |
| Mount Type | Board-in Type |
| OPERATIONAL | |
| On Screen Display | Multi-language Support (14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
| Day & Night | Auto (ICR) / Color / B/W |
| Backlight Compensation | Off / User BLC / HLC |
| Wide Dynamic Range | D-WDR (Off / On) |
| Digital Noise Reduction | 2D DNR |
| Motion detection | Off / On (4 zones) |
| Privacy Masking | Off / On (2 zones rectangle) |
| Gain Control | Off / Low / Middle / High / Very High |
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
| Electronic Shutter Speed | 1/30sec ~ 1/12,000sec |
| Reverse | Off / H-Rev / V-Rev |
| Alarm | (MD) output 1 |
| Remote Control Interface | Coaxial |
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) |
| IR Distance | 20m (65.62ft) |
| Video Transmission Distance | 500m (5C2V Coaxial cable) |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| ELECTRICAL | |
| Input Voltage | Dual ( 24V AC ±10% & 12V DC ±10%) |
| Power Consumption | Max. 5.8W |
| MECHANICAL | |
| Color / Material | Ivory / Plastic |
| Dimensions (WxH) | Ø119.8 x 98.5mm (Ø4.72" x 3.88") |
| Weight | 320g (0.71 lb) |
