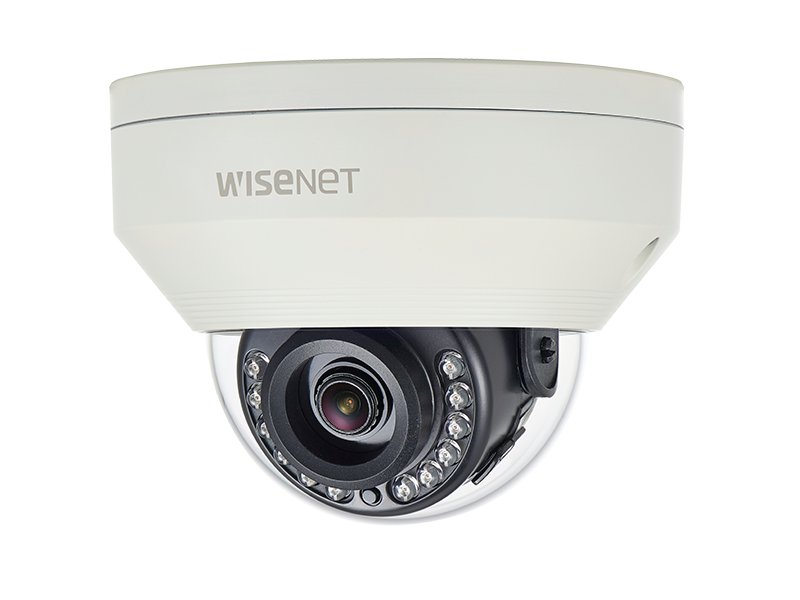

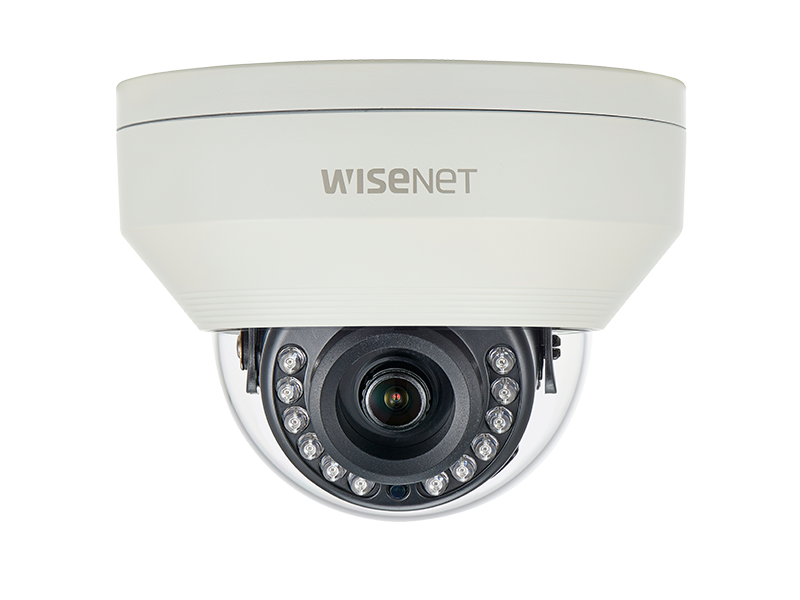

Hanwha - HCV-7020RA - 4MP Outdoor Analog HD Dome Camera with Night Vision & 4mm Lens
Part number:
HCV-7020RA
Price:
Wisenet HD+ 4MP IR outdoor dome camera, AHD or CVBS formats are available, 4.0 mm fixed lens, true D/N, 12VDC, IR distance 82 feet, IP66/IK10
Compatible with HRX- Series DVRs
Key Features:
- QHD (2560 x 1440, 30fps) resolution
- 0.27 Lux@F2.0 (Color) (HCV-7020R/7030R),0 Lux (B/W : IR LED on)
- Built-in 4.0mm fixed lens (HCV-7020R)
- Day & Night (ICR), DWDR, Motion detection
- IR Viewable Length 25m(7020R)
- Transmission distance max.500m
- Easy installation (Plug & play), IP66, IK10
| Model | HCV-7010R/7020R/7030RN/P | ||
| Video | |||
| Imaging Device | 1/3" 4M CMOS | ||
| Total Pixels | 2,720(H) x 1,536(V) | ||
| Effective Pixels | 2,688(H) x 1,520(V) | ||
| Scanning System | Progressive Scan | ||
| Min. Illumination | Color : 0.26 Lux (F1.8) (HCV-7010R), 0.27 Lux (F2.0) (HCV-7020R/7030R) | ||
| B/W : 0 Lux (IR LED on) | |||
| S / N Ratio | 52dB (AGC off, Weight on) | ||
| Video Output | BNC (AHD), Additional CVBS for installation (2Pin connector type) | ||
| Resolution | 2560 x 1440 | ||
| Max. Framerate | 30fps@4M | 25fps@4M | |
| PAN / TILT / ROTATE | |||
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° | ||
| LENS TYPE | |||
| Focal Length (Zoom Ratio) | 2.8mm fixed (HCV-7010R), 4.0mm fixed (HCV-7020R), 6.0mm fixed (HCV-7030R) | ||
| Max. Aperture Ratio | F1.8 (HCV-7010R), F2.0 (HCV-7020R/7030R) | ||
| Angular Field of View | H : 107.48° / V : 59.67° / D : 122.01° (HCV-7010R) | ||
| H : 78.22° / V : 41.21° / D : 87.91° (HCV-7020R) | |||
| H : 49.01° / V : 27.61° / D : 55.6° (HCV-7030R) | |||
| Min. Object Distance | 0.5m (1.64ft) | ||
| Lens Type | Fixed | ||
| Mount Type | Board-in Type | ||
| OPERATIONAL | |||
| On Screen Display | Multi-language Support (14) English, Spanish, French, Portuguese, German, Italian, Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish | ||
| Day & Night | Auto (ICR) / Color / B/W | ||
| Backlight Compensation | Off / User BLC / HLC | ||
| Wide Dynamic Range | D-WDR (Off / On) | ||
| Digital Noise Reduction | 2D DNR | ||
| Motion detection | Off / On (4 zones) | ||
| Privacy Masking | Off / On (2 zones rectangle) | ||
| Gain Control | Off / Low / Middle / High / Very High | ||
| White Balance | ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) | ||
| Electronic Shutter Speed | 1/30sec ~ 1/12,000sec | 1/25sec ~ 1/12,000sec | |
| Reverse | Off / H-Rev / V-Rev | ||
| Remote Control Interface | Coaxial | ||
| Protocol | AHD : ACP (AHD Coax Protocol), CVBS : Pelco-C (Coaxitron) | ||
| IR Distance | 20m (65.62ft) : HCV-7010R, 25m (82.02ft) : HCV-7020R
| ||
| 30m (98.43ft) : HCV-7030R | |||
| Video Transmission Distance | 500m (5C2V Coaxial cable) | ||
| ENVIRONMENTAL | |||
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C (+14°F) | ||
| Ingress Protection | IP66 | ||
| Vandal Resistance | IK10 | ||
| ELECTRICAL | |||
| Input Voltage | 12V DC ±10% | ||
| Power Consumption | Max. 5.0W | ||
| MECHANICAL | |||
| Color / Material | Ivory / Aluminum | ||
| Dimensions (WxH) | Ø120.3 x 91.7mm (Ø4.74" x 3.61") | ||
| Weight | 510g (1.12 lb) | ||
