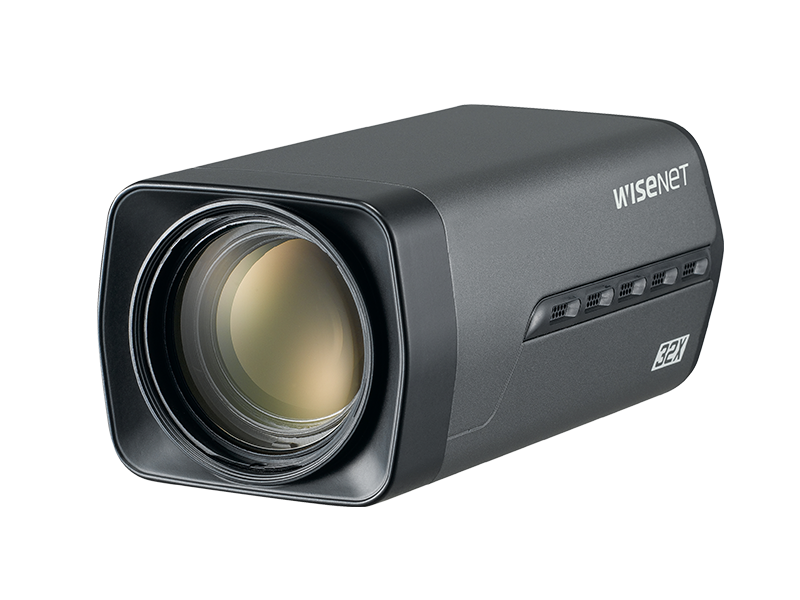

Wisenet HD+ 2M zoom box, AHD or CVBS formats are available, true WDR (120dB), 32X optical zoom, RS485 /Coaxial Control, true D/N, 12VDC
- 2 Megapixel (1920 x 1080) resolution
- 0.2 Lux@F1.6 (Color), 0.01 Lux@F1.6 (B/W)
- 4.44 ~ 142.6mm (32x) optical zoom, 16x digital zoom
- Day & Night (ICR), WDR (120dB)
- Detection, Tracking, Fixed Moved, Tampering support
| Model |
HCZ-6320N/P |
||
|
VIDEO |
|||
|
Imaging Device |
1/2.8" 2.38M CMOS |
||
|
Total Pixels |
1,952(H) x 1,116(V), 2.18M pixels |
||
|
Effective Pixels |
1,944(H) x 1,104(V), 2.14M pixels |
||
|
Scanning System |
Progressive |
||
|
Min. Illumination |
Color : 0.2 Lux (1/30sec, F1.6) B/W : 0.01 Lux (1/30sec, F1.6) |
||
|
S / N Ratio |
50dB |
||
|
Video Output |
AHD : 1080p, BNC CVBS : SD, DIP connector type |
||
|
Resolution |
1920 x 1080 |
||
|
Max.Framerate |
30fps@1080p |
25fps@1080p |
|
|
LENS |
|||
|
Focal Length (Zoom Ratio) |
4.44 ~ 142.6mm (Optical 32x) |
||
|
Max. Aperture Ratio |
F1.6(Wide) / F4.4(Tele) |
||
|
Angular Field of View |
H : 62.8˚(Wide) ~ 2.23˚(Tele) / V : 36.8˚(Wide) ~ 1.26˚(Tele) |
||
|
Min. Object Distance |
Wide : 1.5m (4.92ft), Tele : 2m (6.56ft) |
||
|
Focus Control |
Auto / Manual / One push |
||
|
Lens / Mount Type |
DC Auto Iris / Board-in Type |
||
|
PAN / TILT / ROTATE |
|||
|
Preset |
255ea |
||
|
OPERATIONAL |
|||
|
On Screen Display |
Multi-language Support (9)
English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, Russian |
||
|
Camera Title |
Off / On (Displayed up to 15 characters) |
||
|
Day & Night |
Auto (ICR) / Color / B/W / External |
||
|
Backlight Compensation |
Off / BLC / HLC / WDR |
||
|
Wide Dynamic Range |
120dB |
||
|
Contrast Enhancement |
SSDR (Off / On) |
||
|
Digital Noise Reduction |
SSNRIII (2D + 3D Noise filter) (Off / On) |
||
|
Digital Image Stabilization |
Off / On |
||
|
Defog |
Off / Auto / Manual |
||
|
Motion Detection |
Off / On (4ea rectangle zone) |
||
|
Privacy Masking |
Off / On (12 zones of rectangle zone) |
||
|
Gain Control |
Off / Low / Middle / High |
||
|
White Balance |
ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
||
|
Electronic Shutter Speed |
Minimum / Maximum / Anti Flicker (2 ~ 1/33,000sec) |
||
|
Digital Zoom |
16x |
||
|
Flip / Mirror |
Off / On |
||
|
Intelligent video analytics |
Detection, Tracking, Fixed moved, Tampering |
||
|
Remote Control Interface |
RS-485, Coaxial |
||
|
Protocol |
RS-485 : Samsung-T/E, Pelco-D/P, Panasonic, Bosch, AD, Vicon, Honeywell Coaxial : ACP (AHD Coax Protocol) |
||
|
ENVIRONMENTAL |
|||
|
Operating Temperature / Humidity |
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
||
|
ELECTRICAL |
|||
|
Input Voltage / Current |
12V DC |
||
|
Power Consumption |
Max. 6W |
||
|
MECHANICAL |
|||
|
Color / Material |
Dark Gray / Metal |
||
|
Dimensions (WxHxD) |
72.0 x 60 x 137mm (2.83" x 2.36" x 5.39") |
||
|
Weight |
476g (1.05 lb) |
||
