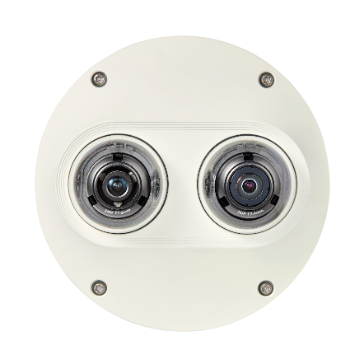

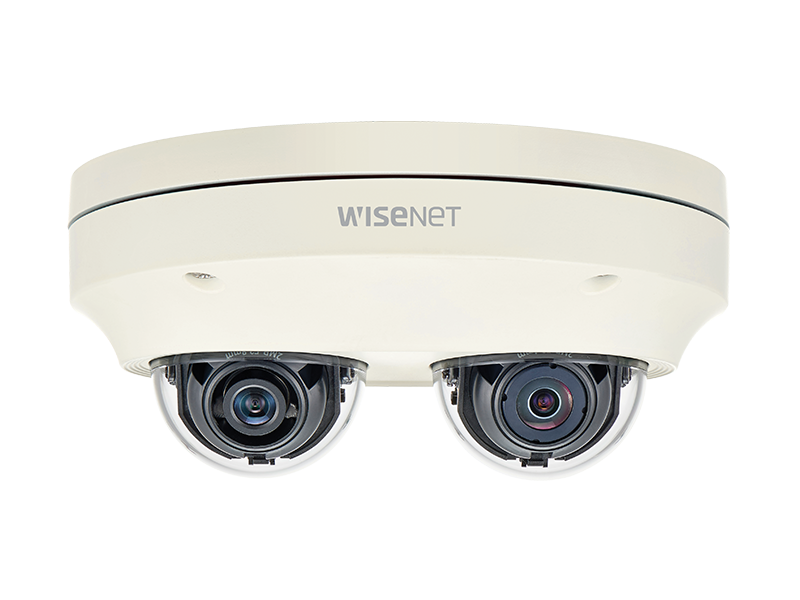

Hanwha - PNM-7000VD - 2 x 2MP outdoor dome
Part number:
PNM-7000VD
Price:
Network vandal outdoor Multi-sensor Multi-Directional dome camera, (2MP X 2 sensors) 4MP @ 60fps, modular lenses from 2.4, 2.8, 3.6 and 6mm lenses, triple codec H.265/H.264/MJPEG with WiseStream II technology, 150dB WDR, built in analytics, 2x SD card, hallway view, HLC, defog detection, DIS, PoE, IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F). Lens modules: SLA-2M2400D (2.4mm), SLA-2M2800D (2.8mm), SLA-2M3600D (3.6mm), SLA-2M6000D (6mm)
Features:
- 2 x 1920 x 1080 resolution
- 60fps@2M (H.265 / H.264)
- H.265, H.264, MJPEG codec supported
- Day & Night, WDR (150dB)
- Loitering, Directional detection, Fog detection, Motion detection, Tampering
- SD/SDHC/SDXC memory 2 slots (each camera), WiseStream II Support
| Technical Specifications | |
| Video | |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| Lens | |

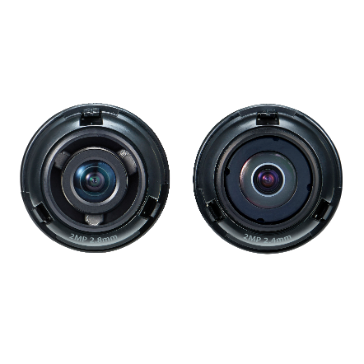

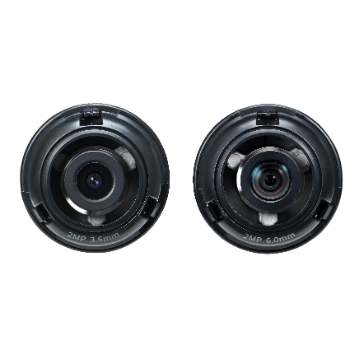

| Optional Lens | SLA-2M2400D(2MP 2.4mm) |
| SLA-2M2800D(2MP 2.8mm) | |
| SLA-2M3600D(2MP 3.6mm) | |
| SLA-2M6000D(2MP 6.0mm) | |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Face detection, Fog detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC recording at event triggers | |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S |
| SUNAPI(HTTP API) | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Mechanical |
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø160mmx73mm, 840g |
Name
Description
Size
Downloads
File
Specifications
0.9mb
File
Multi-Sensor Multi-Directional Brochure
4.2mb
File
PNM-7000VD Quick Guide
1.6mb
File
PNM-7000VD A&E Specs
0.1mb
File
PNM-7000 Manual
6mb
File
Multi-Sensor Camera Series Firmware 1.32.01 Release Notes
0.3mb
