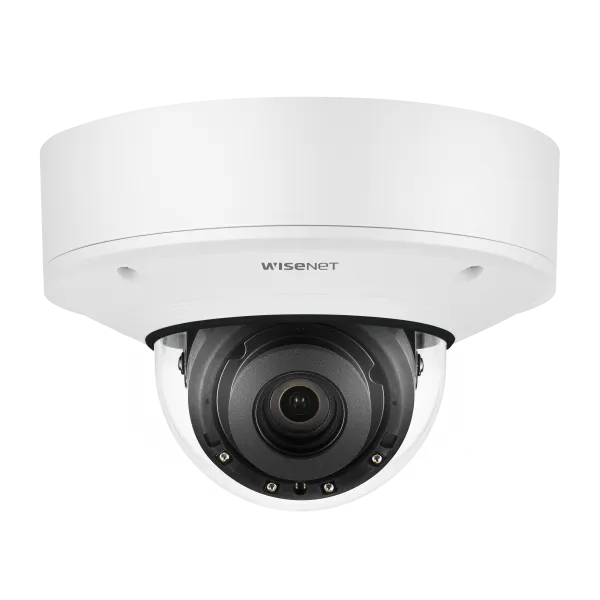

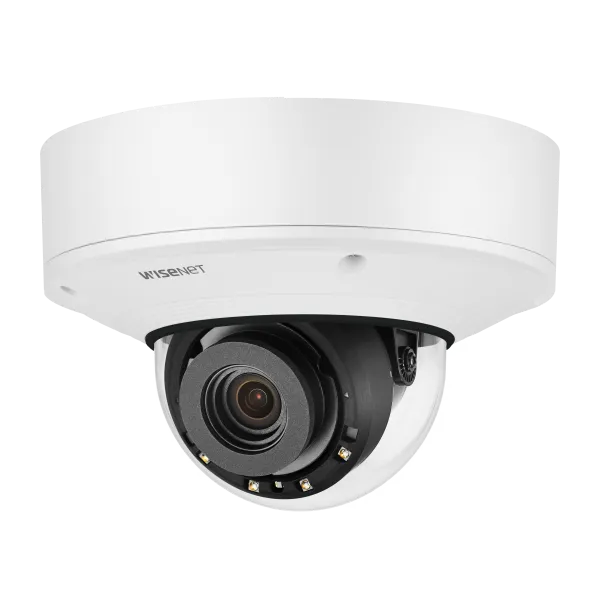

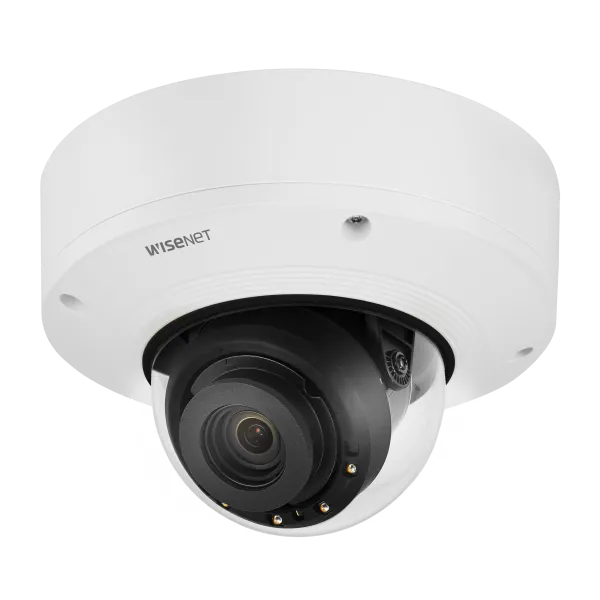

4K Low-Moderate Speed LPR Vandal Dome Camera with Wisenet Road AI. Max. 4K resolution, 4.5~10mm(2.2x) M-Varifocal(4K) lens, 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on), Day & Night(ICR), WDR(120dB), H.265, H.264, MJPEG codec, WiseStream III, POE+, IP66/67/IP6K9K, IK10+, NEMA4X LPR + MMCR: Make, Model & Color* Recognition on the Edge. 32GB Micro SD storage for up to 10,000 LPR/Vehicle images, Licensed open platform application for multiple regions/countries. (* Color recognition only during day time)
Features:
- 4K resolution
- 0.05Lux@F1.6 (Color), 0Lux (B/W, IR LED on)
- Day & Night(ICR), WDR(120dB)
- IR Viewable Length 30m (98.42ft)
- H.265, H.264, MJPEG codec, WiseStreamⅡ
- Wisenet Road AI application (Pre-installed)
- License Plate Recognition (LPR)
- Make/Model/Color Recognition
- Allow / Deny list notification
- Smart Search (LP, Country, brand, model, color)
| Video | |
| Imaging Device | 1/1.8" CMOS |
| Resolution | 3840x2160, 3072x1728, 2592x1944, 2688x1520, 2560x1440, 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720, 1024x768, 800 x 600, 800 x 448, 720 x 576, 720x480, 640x480, 640x360 |
| Maximum Framerate | H.265/H.264: Maximum 30fps MJPEG: Maximum30fps |
Minimum Illumination | Color: 0.05Lux (F1.6, 1/30sec) B/W : 0Lux IR LED on |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480 for installation USB: Micro USB Type B,1280x720 for installation |
| Lens | |
| Focus Control | Simple focus |
| Lens Type | DCauto iris, P iris, Manual |
| Mount Type | Cmount, CSmount |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day &Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR,SSDR |
| Digital Noise Reduction | SSNRⅤ |
| Digital ImageStabilization | Stabilization Support(built-in gyro sensor) |
| Motion Detection | 8ea, polygonal zones |
| PrivacyMasking | 6ea, rectangle zones - Color: Gray/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW/ AWC/ Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
Video Rotation Pan / Tilt / Rotate Range | Flip, Mirror, Hallway view (90/270) 0˚~360˚ / -45˚~85˚ / 0˚~355˚ |
| Analytics | Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection License Plate Recognition, Make/Model/Color Recognition, Allow/Deny list |
| Alarm I/O | Input 1ea / Output 1ea / DC12V Power(Max. 50mA) 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover, Audio playback |
| Audio In | Selectable(microphone in/line in/Built in mic) Supply voltage: 2.5VDC (4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Maximum output level: 1Vrms |
| Network | |
| Ethernet | Metal shielded RJ-45 (10/100/1000 BASE-T) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTPAPI) Wisenet open platform | |
| General | ||
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Pre-installed with industrial-grade 32GB Micro SD to support 10,000 LPR images | |
| Memory | 4096MB RAM,512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature/ Humidity | -10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
| StorageTemperature/Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Input Voltage | PoE+ (IEEE802.3at),12VDC |
| Power Consumption | PoE+: Maximum 16.50W, typical 12.50W 12VDC: Maximum13.50W, typical 10.80W |
