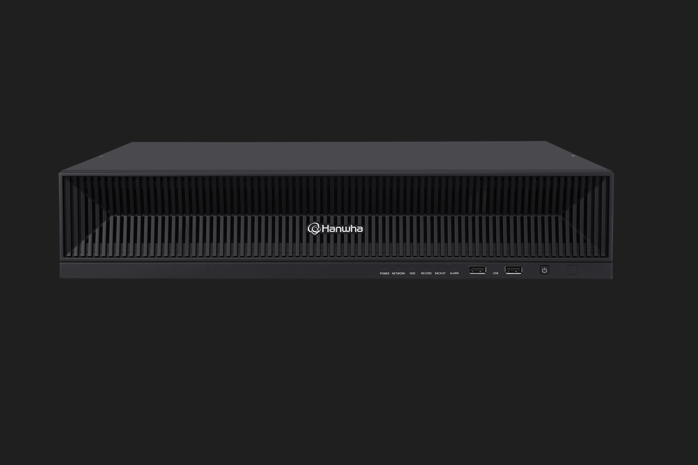

16 CH NVR (32TB Raw) up to 8K (32MP) Resolution (Intel based Model), Features AI Search (Best Shot, Attribute), object detection and classification, License plate detection and search for AI Based Cameras plus Adding AI Search features to several non AI Hanwha Cameras from P, X and Q series. H265, H264, MJPEG, 8 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6, ARB (Automatic Recovery Backup), 250 Mbps recording / up to 64 Mbps playback, Dual stream recording, WiseStream technology, two HDMI dual display with local 4K display resolution (HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz), new features like fisheye dewarping, dynamic Layout and Dynamic Event. Easy connection using P2P service (QR code connect) with Wisenet Mobile APP (for Android and IOS) and the free of charge Wisenet Viewer. NDAA & FCC Compliant Model.
Features:
- 8K NVR, up to 16 channels, License-free recording
- Supports H.265, H.264, & MJPEG CODECs, up to 32MP
- Up to 8 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording
- ARB (Automatic Recovery Backup)
- 250 Mbps recording / up to 64 Mbps playback
- Dual stream recording, WiseStream technology
- HDMI/VGA dual display with local 4K display resolution (HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz), max. resolution of 32MP recording/display
- Add AI search capabilities to select P, X and Q series Hanwha Cameras
- AI search including Best Shot, Attribute), object detection and classification, License plate detection and search (Wisenet AI cameras only)
- web UI 2.0 (no plugins required), fisheye dewarping, dynamic Layout and Dynamic Event
- Easy connection using P2P service (QR code connect) with Wisenet Mobile APP (for Android and IOS) and the free-of-charge Wisenet Viewer
- NDAA & FCC Compliant
| Display | ||
| Network camera | Inputs | Max. 16CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI2: 1920x1080 (60Hz) |
| Multi Screen Display | [Local Monitor]
| |
| Resolution | 32M(15fps, H.265Only), 12M(30fps, H.265Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264,MJPEG |
| Recording Bandwidth | Distributed mode : Up to 250 Mbps Normal mode : Up to 150 Mbps RAIDmode : Up to 250 Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, DualStream, Schedule(Continuous/Event), Event(Pre/Post), Bookmark | |
| Event Trigger | Alarm Input,Video Loss, CameraEvent(Sensor, MD, VideoAnalytics, Defocus, Audio),Dynamic Event, UserEvent | |
| Event Action | e-Mail, EventPush, PTZ Preset,Alarm Out, Buzzer,Monitor Out, FTP,SUNAPI Command, Shotdown | |
| Search & Play | Playback Bandwidth | RAID Mode: Max. 64Mbps Non-RAID Mode : Max. 32Mbps |
| User | Max. 4 Users (Local1, Remote 3) | |
| Simultaneous playback | Max. 64CH(Local 16CH, Remote16CH per user) | |
| Fisheye Dewarping | Support (Local1CH), CMS | |
| Mode | Date &Time(Calendar), Event list,Text Search, SmartSearch | |
| Resolution | CIF ~ 32MP (Upto H.264 9MP,H.265 32MP) | |
| Playback Control | Fast/Slow Forward/ Backward, Moveone step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 8ea(Max. 80TB, Non-RAID mode) | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Single, 1 Array) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play,Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6,TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP,NTP, HTTP, DHCP(Server, Client), SMTP,ICMP, IGMP, ARP,DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 250Mbps | |
| Audio | Input/Output | 16 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), LiveUnicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha TechwinRoot CA), Signedfirmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome,Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM,Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd partyVMS | |
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit,Bitrate, Compression, GOP,Quality, Camera MD setup (4, 8 pointpolygon) Camera videosetup (Simple focus,Brightness/Contrast, Flip/Mirror, IRIS,WDR, D&N, SSNR,Shutter, SSDR, DIS),Fisheye Dewarping Mode, Hallway View Setup, CameraWebpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP,CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), LiveUnicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | Indicator | HDD, Alarm, Power, Record,Backup, Network, RAID |
| Storage | OK | |
| Reset | OK | |
| HDD Key Lock | OK | |
| HDMI | 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz | |
| Audio | Out 1EA(3.5mm Audio Jack) | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB 2.0, Rear2 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | Log List | Max. 100,000(System Log, EventLog each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French,German, Italian, Spanish,Russian, Turkish, Polish,Dutch, Czech, Portuguese, Danish, Rumanian, Serbian,Croatian, Hungarian, Greek,Norwegian, Finnish, Korean, Chinese, Japanese, Thai,Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC±10%; 50/60 Hz,2.1A | |
| Power Consumption | Max. 205W (With 10TB HDDs 8EA) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 438 x 86 x 434.9 mm | |
| Weight | Approx. 9.1Kg(20.1 lb, HDD not included) |
