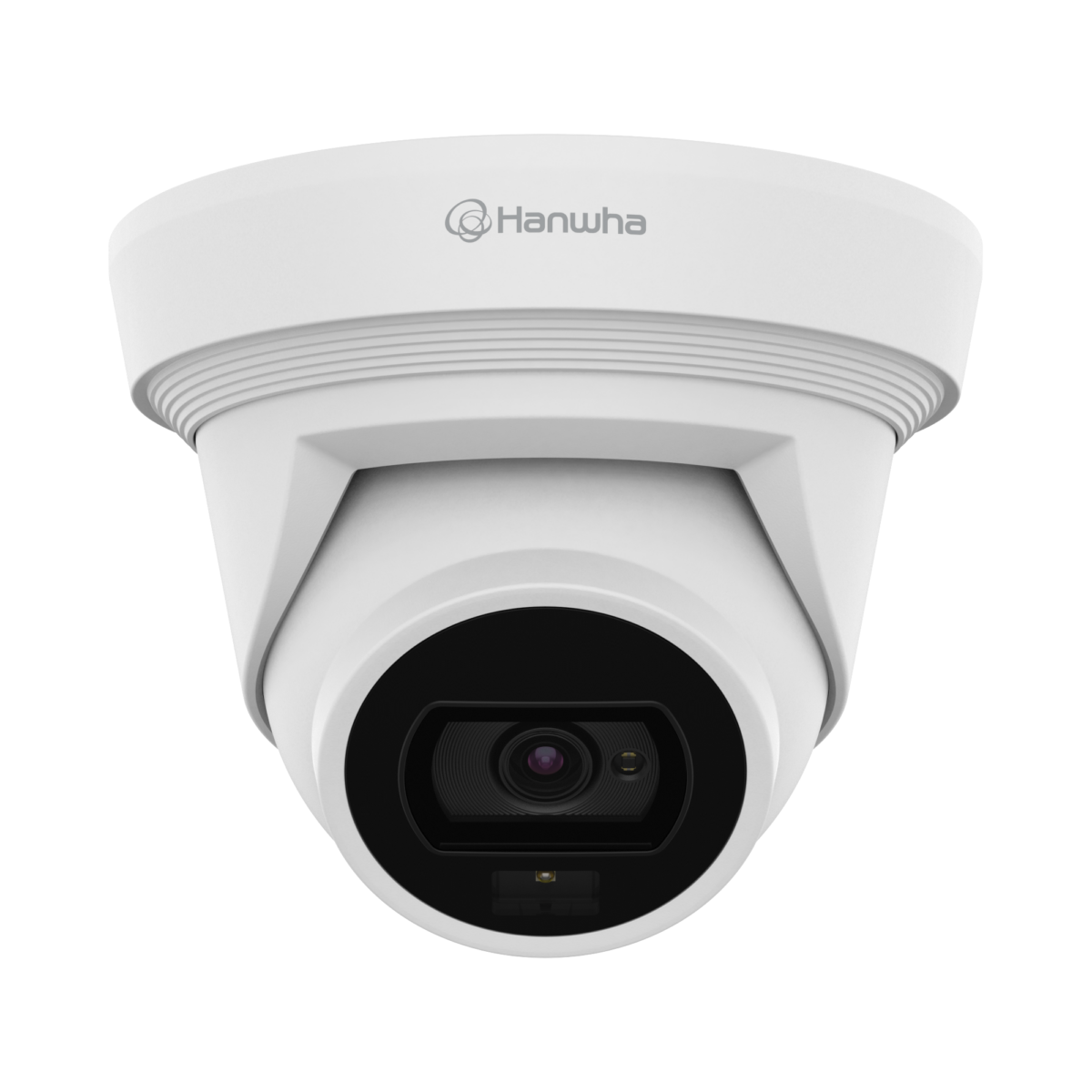

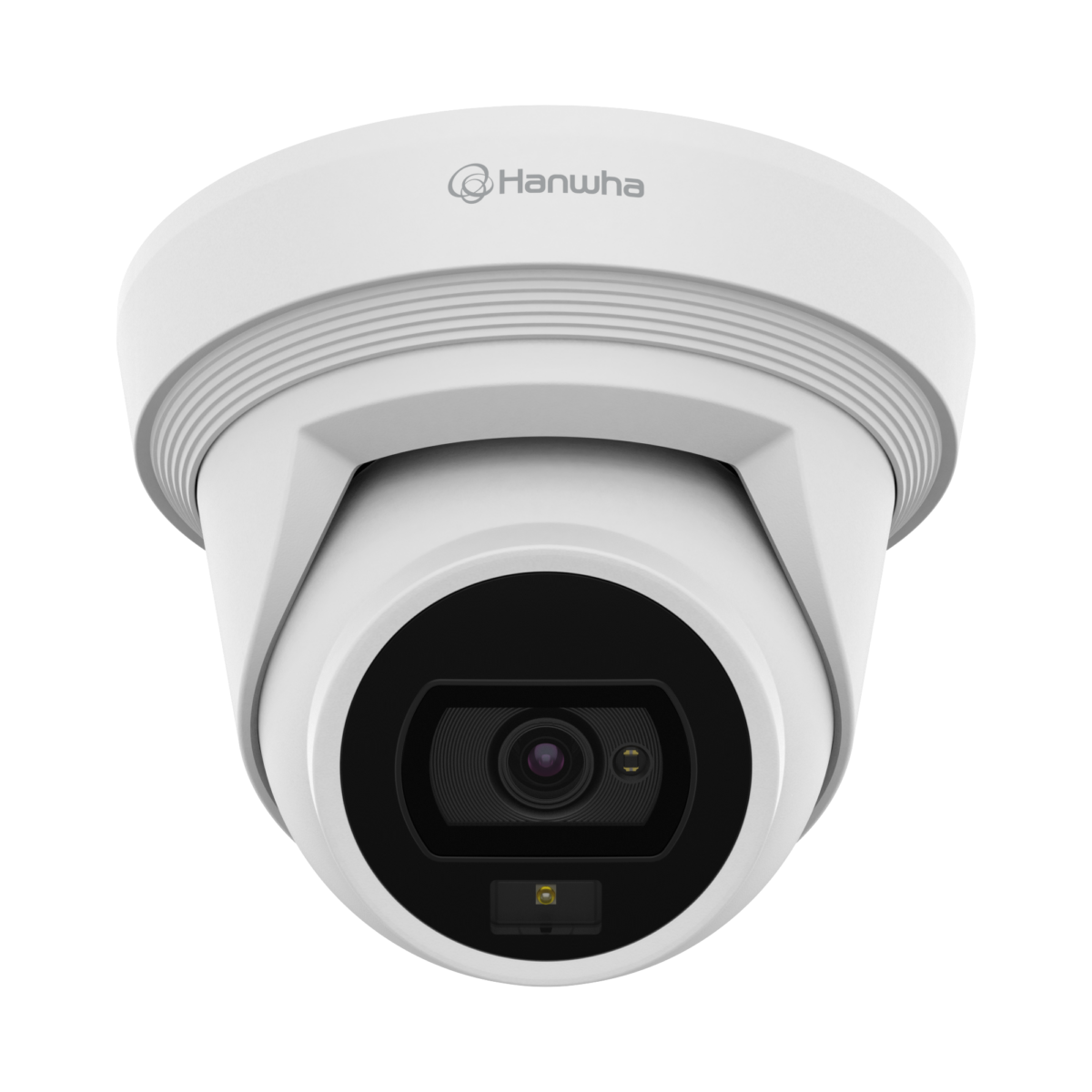

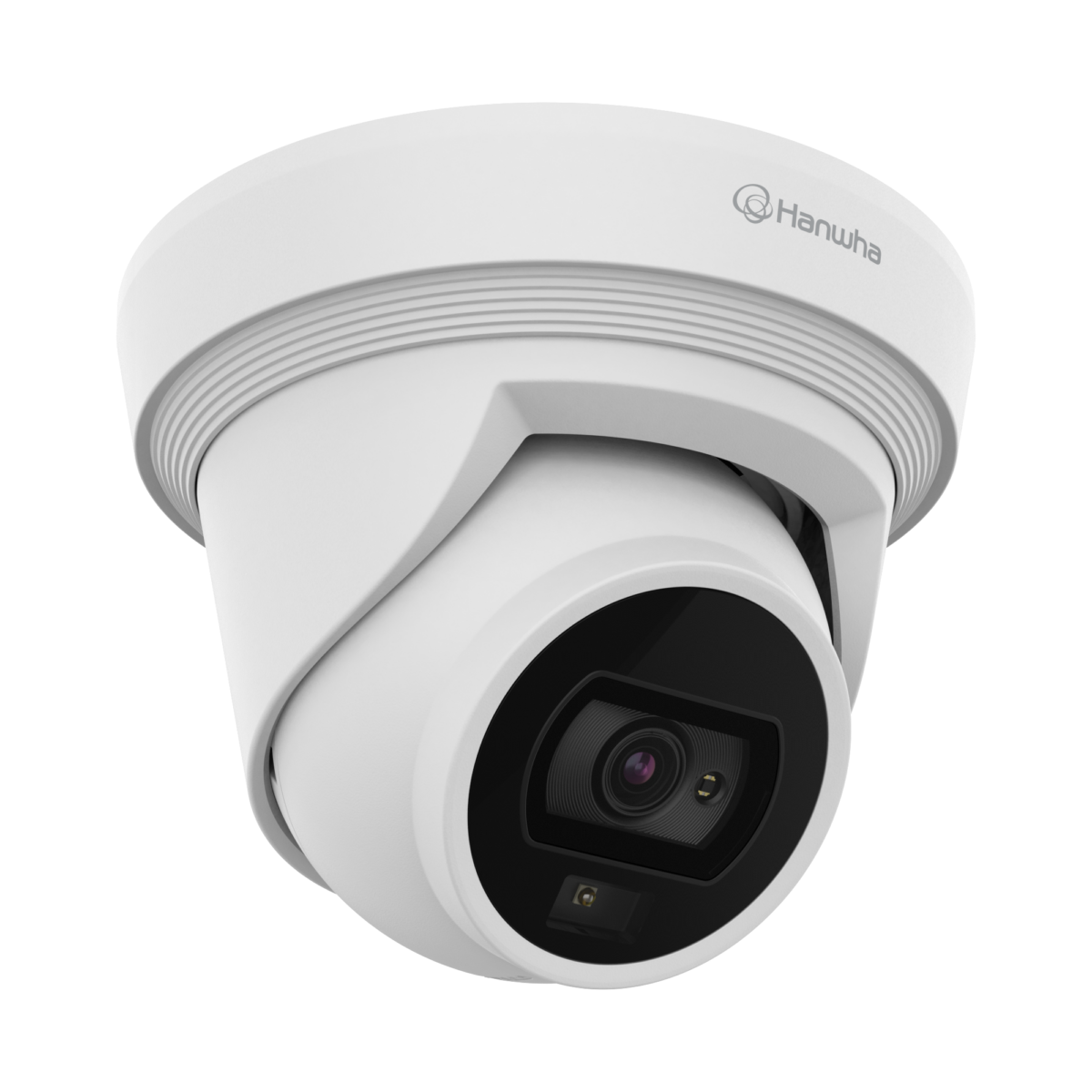

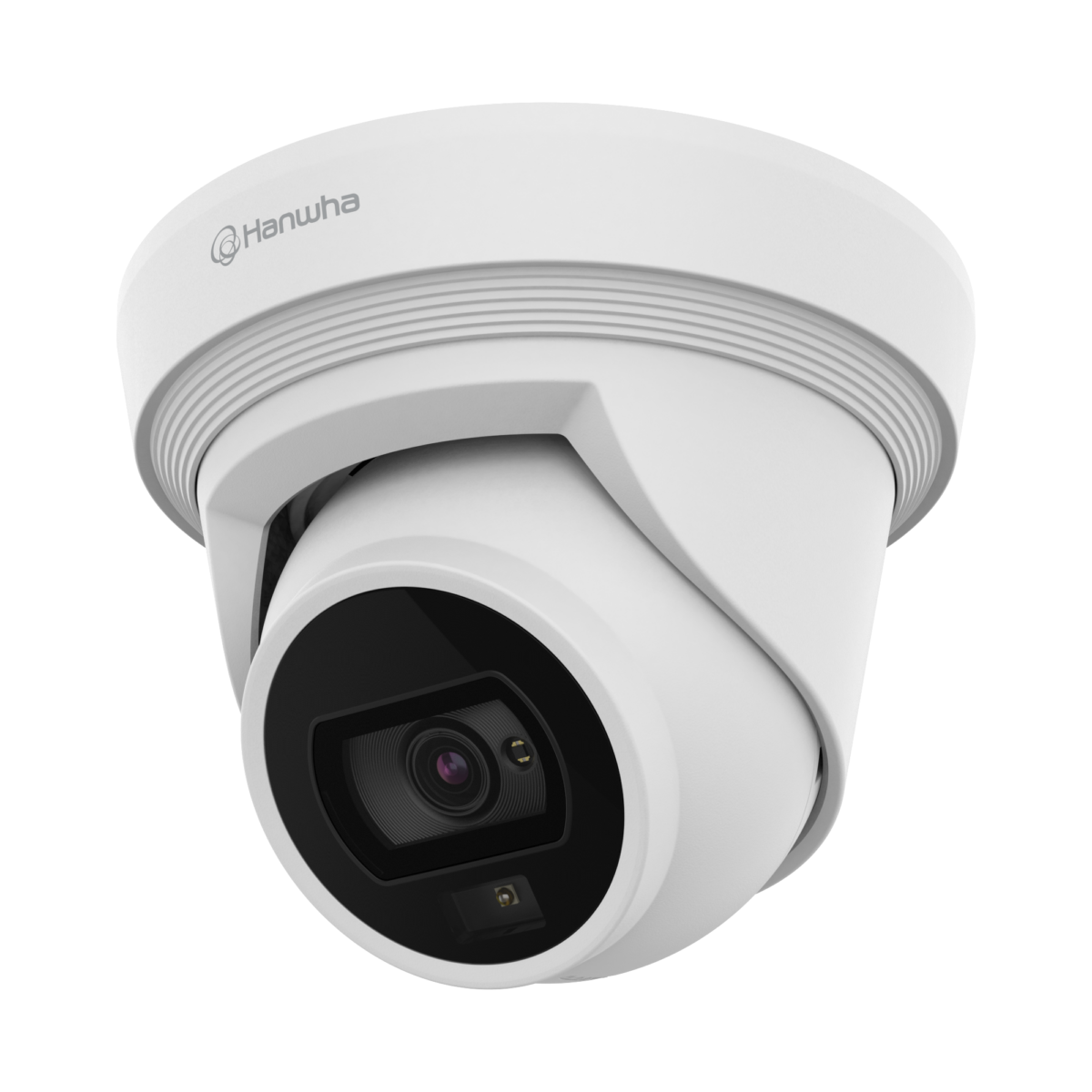

Wisenet Q network outdoor flat-eye camera, 4K @ 30fps, 3mm fixed focal lens (H: 108°/ V: 59°), triple codec H.265/H.264/MJPEG with Wisestream III, 120dB WDR, Dual Light – White LED range 30m (98ft), IR viewable length 30m (98ft), Motion Detection based on AI engine, Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle); IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit/(Dis)Appear), defocus detection, hallway View, SD card, video analytics, IP66/IP67, IK10, PoE, Operating temperature -40°C~+60°C(-40°F ~ +140°F) white color
Shed new light on your surveillance.
Built for enhanced low-light performance with an aperture of 1.2, the Q series AI Dual Light Camera features a warm white LED and Infrared (IR) lights with flat-eye design for easy installation.
3000K warm white light
The Q Series AI Dual Light AI Camera features a 3000K warm white LED that brightens dimly-lit spaces. Unlike IR, the warm white light allows for color identification at night and doesn’t wash out reflective surfaces.
See the difference
The onboard white LED light provides detailed full color video capture in low-light scenes without the possibility of over-exposure caused by IR reflections.
Advanced AI analytics
Accurate object classification for humans and vehicles reduces the occurrence of false alarms.
Features:
- Max. 8MP resolution
- 3.0 mm fixed lens
- Color: 0.034Lux (F1.6, 1/30sec) / BW: 0.0034Lux (F1.6, 1/30sec, 30IRE)
- Maximum 30fps@8MP (H.265/H.264)
- Light viewable length : White LED : 30m(98.42ft), IR : 30m(98.42ft)
- Day & Night (ICR), WDR (120dB), WiseNRⅡ (Using AI engine)
- H.265, H.264, MJPEG, WiseStreamⅢ (Using AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Vehicle - car, truck, bus, bicycle, motorcycle), Motion detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
- IP66/IP67, IK10
- PoE: Max 10W
| Video | |
| Imaging Device | 1 /2.8" CMOS |
| Resolution | 3840x2160 , 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720 , 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 , 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) (WDR on/off) MJPEG: Max. 30fps(@8MP Max. 5fps) |
| Min. Illumination | Color: 0.034Lux (F1.6, 1/30sec) BW: 0.0034Lux (F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.0 mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 108°/ V: 59°/ D: 127° |
| Min. Object Distance | 0.5m(1.64 ft ) |
| Focus Control | Fixed |
| Lens Type | Fixed IRIS |
| Mount Type | M12 |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0 °~350° / 0°~75° / 0°~360° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine) SSNRⅤ |
| Motion Detection | 8 ea, 8point polygonal zones |
| Privacy Masking | 32 ea, 4point quadrangle zones - Color: Gray/Green/Red/Blue/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Vehicle(Type:car/bus/truck/motorcycle/bicycle) Attributes: Person, Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine
Analytics events
* Some of the video analytics only works with people and vehicle detection |
| Alarm Triggers | Analytics, Network disconnect, MQTT subscription |
| Alarm Events | When alarm trigger occurred
|
| Light Type | Warm color(3000K), IR LED(850nm) |
| Light Viewable Length | White LED : 30m(98.42ft) IR : 30m(98.42ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform Oncloud edge recording, compatible with Hanwha Vision’s Micro SD cards up to 1TB |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate(Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2 GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40 °C~+60°C(-40°F~+140°F ) * Start up should be done at above -30°C 0 ~100% RH(Condensing ) Humidity control /w Air sheet |
| Storage Temperature / Humidity | -50 °C~+60°C(-58°F~+140°F) / 0~95% RH |
| Certification | IP66/IP67, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 10.0W, typical 4.5W |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø140.0x99.6mm(ø5.51x3.92"), 790g(1.74 lb) |
| Compatible Conduit hole / Gangbox | Conduit hole : None Gangbox : Single, Double, 4" Octagon |
| Certifications & Standards |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 |
| Compatible Models | |
| Hanging Adaptor | SBP-140HMW |
| Back Box | SBV-140BW |
| Ceiling Mount (Assy) | SBP-150CMI, SBP-300CMI, SBP-300CMW1, SBP-900CMW, SBP-300CMTW, SBP-300CMTS |
| Ceiling Mount (Single Unit) | SBP-140CMB, SBP-140CMT, SBP-180CMB, SBP-180CMS, SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P, SBP-C15H |
| Wall Mount | SBP-140WMW, SBP-250WMW, SBP-300WMW, SBP-300WMW1, SBP-400WMW |
| Wall Mount Adaptor | SBP-115PFA, SBP-300BW1 |
| Pole Mount | SBD-140PMB, SBD-140PMW, SBP-300PMW2 |
| Corner Mount | SBD-140KMB, SBP-156KMW, SBP-300KMW1 |
| Parapet Mount | SBP-156LMW1, SBP-300LMW |
| Tilt Mount | SBV-140TMW |
| Cabinet | SBP-150NBW, SBP-300NBW |
| Conduit Adaptor | SBP-060BA |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 55.8m(183.07ft) |
| Observe (63PPM/ 19PPF) | 22.3m(73.23ft) |
| Recognize (125PPM/ 38PPF) | 11.2m(36.61ft) |
| Identify (250PPM/ 76PPF) | 5.6m(18.31ft) |
