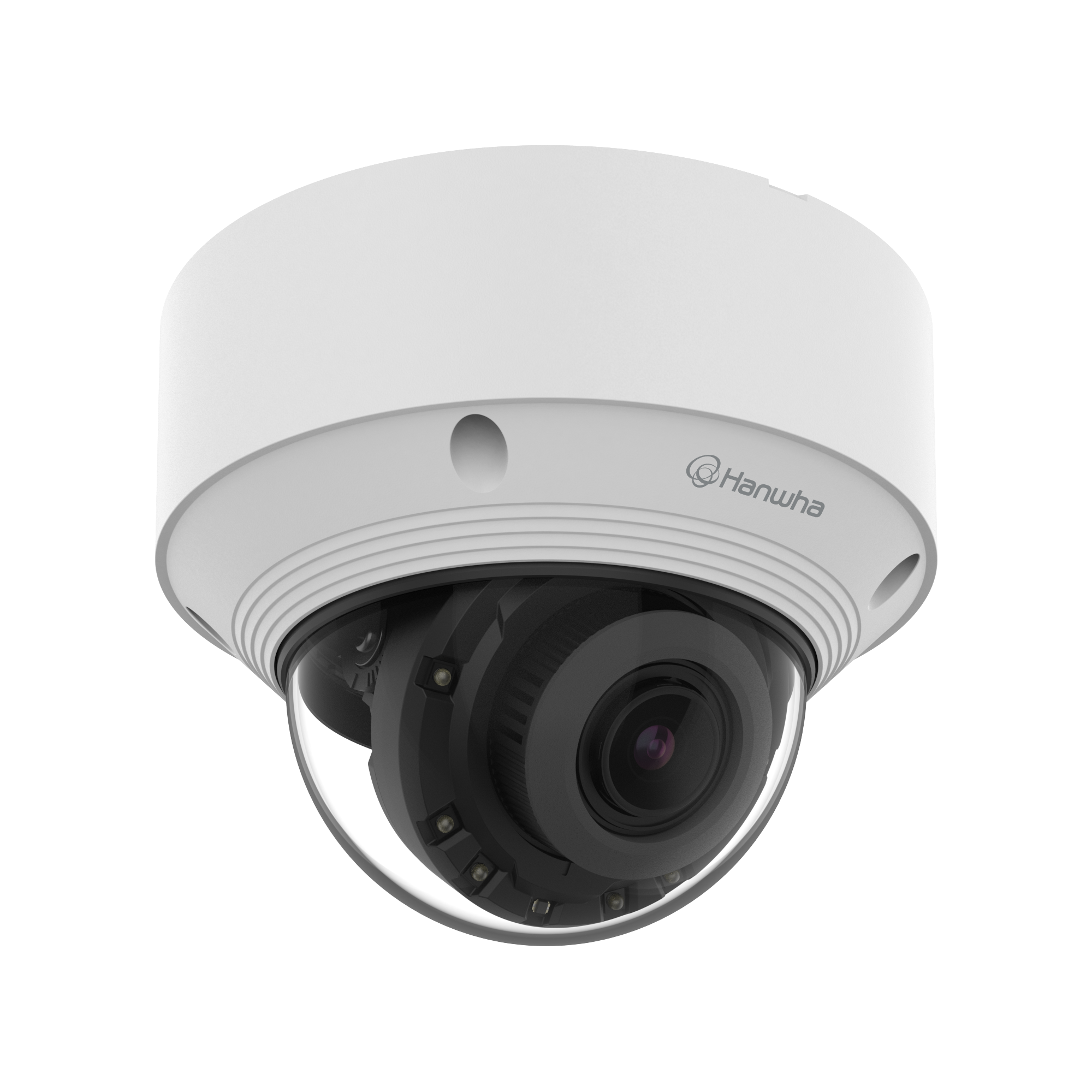

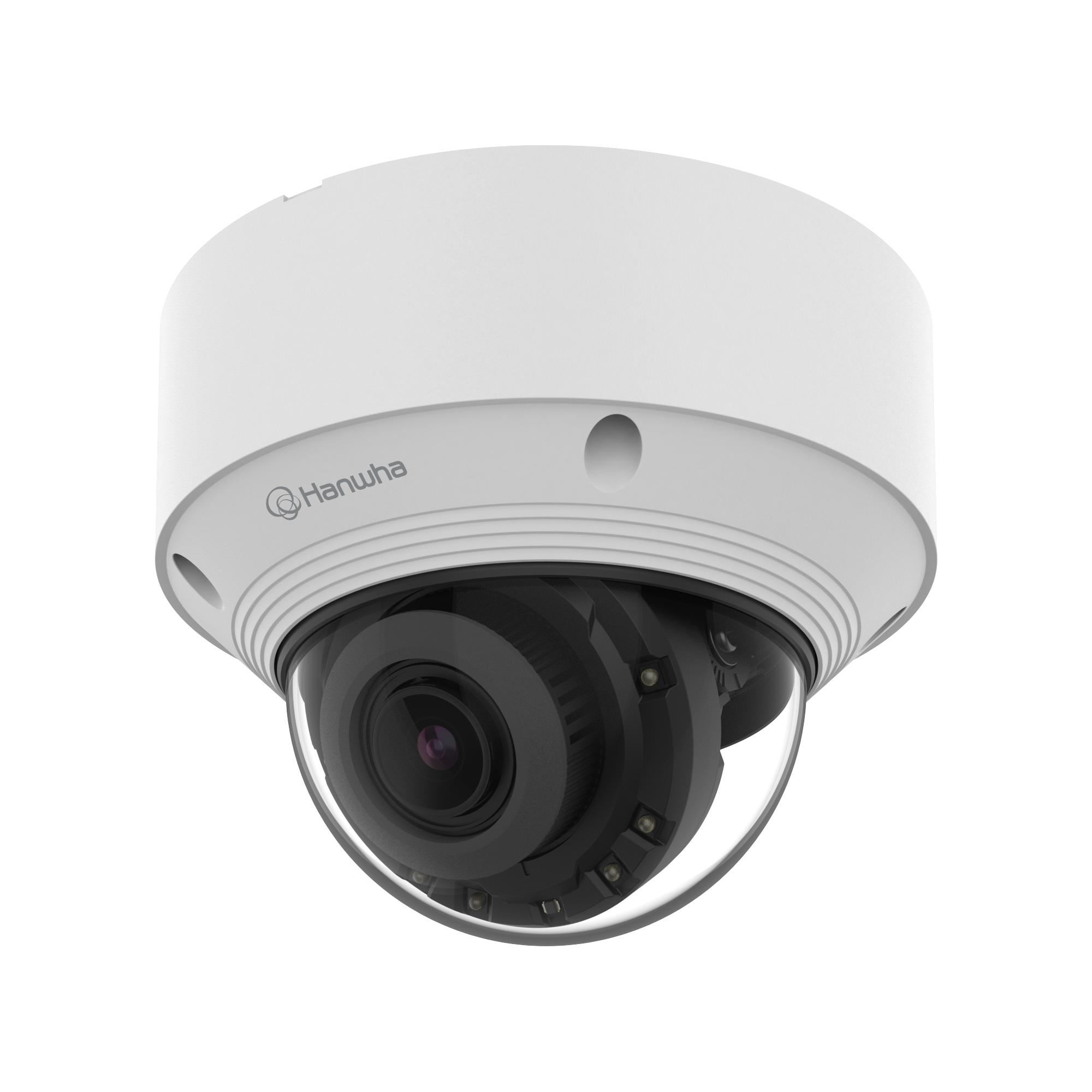

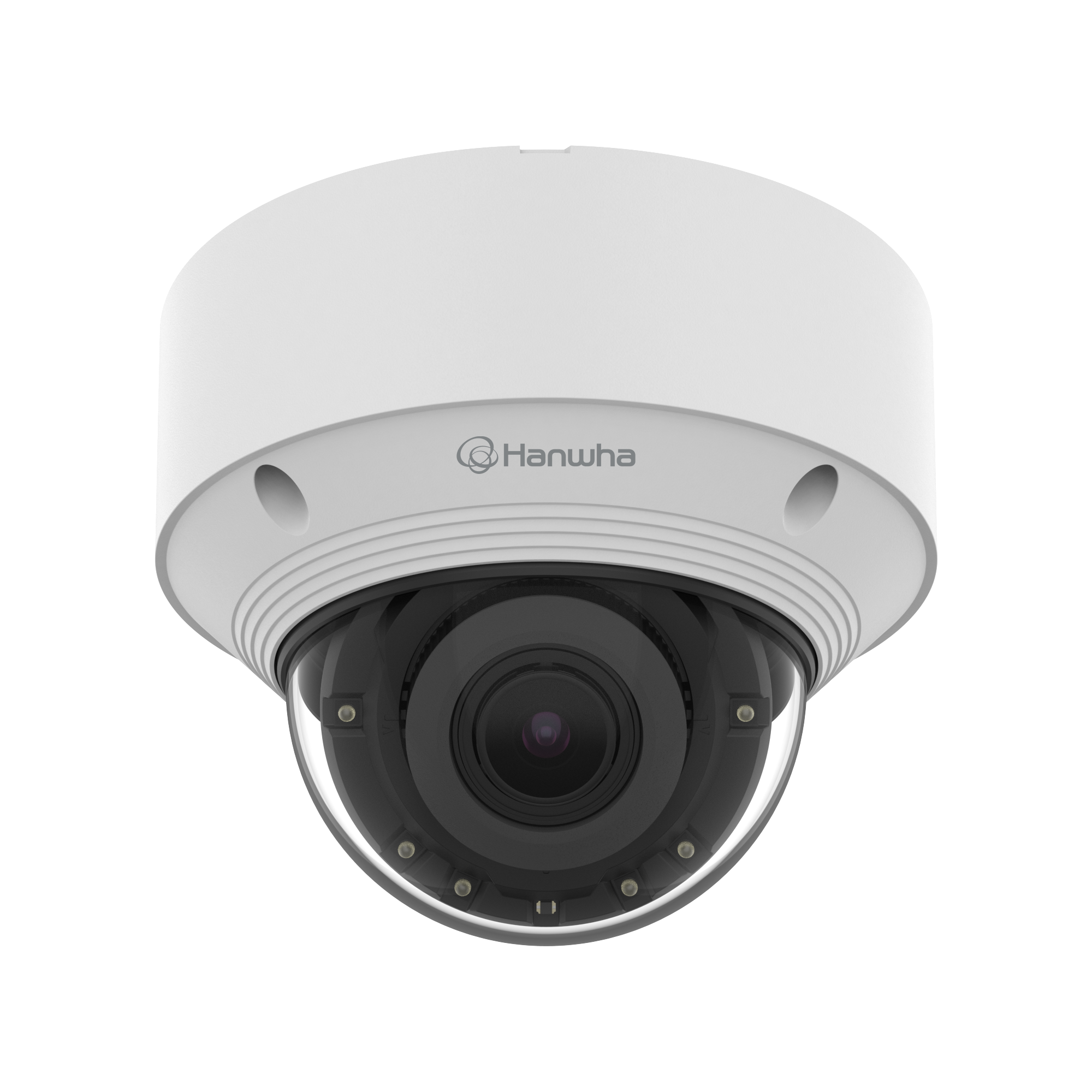

Wisenet Q network outdoor vandal dome camera, 2MP @ 30fps, motorized vari-focal lens 3.2~10.2mm (H: 102.0°~32.2° / V: 54.2°~18.3°), triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRⅡ(Based on AI engine), WDR 120dB, IR viewable length 40m (131.23ft), Motion Detection based on AI engine, Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle); IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit/(Dis)Appear), *Audio: Selectable(mic in/line in), defocus detection, hallway View, built-in SD card slot (1x256GB), video analytics, USB for easy installation, open platform, IP66, IK10, PoE, Operating temperature -40°C~+55°C(-40°F ~ +131°F) white color. * HDMI out supported through an optional cable (SPP-C1900) * Alarm I/O and audio is supported through an optional cable (SPP-C7400)
Now the Wisenet Q series meets AI with advanced Object Detection and WiseMD for accurate Motion Detection of AI Objects, eliminating false positives from foliage, lighting changes, etc.
Features:
- 2MP resolution
- 3.2 ~ 10.2mm ((H: 102.0°~32.2° / V: 54.2°~18.3°) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine)
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Appear/Disappear, Tampering, WiseMD based on AI engine, AI Object Detection - Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle); IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
- People Counting, Heatmap, Queue Management, & Vehicle Counting
- micro SD (256GB) memory slot
- PoE / 12V DC
- IR viewable length 40m (131ft)
- IP66, IK10
- Hallway view support
- LDC support (Lens Distortion Correction)
- USB for easy installation, open platform
- Audio I/O & Alarm I/O is supported through an optional cable (SPP-C7400)
- Conduit access with optional SBO-147BA adapter accessory
- Operating temperature -30°C~+55°C(-22°F ~ +131°F), white color
| Video | |
| Imaging Device | 1 /2.8" CMOS |
| Resolution | 1920x1080 , 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480 , 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) (WDR on/off) MJPEG: Max. 30fps(@2MP Max. 5fps) |
| Min. Illumination | Color: 0.04Lux (F1.6, 1/30sec) BW: 0.004Lux (F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation HDMI: 1080p@30/25fps (60/50Hz) * HDMI out is supported through an optional cable(SPP-C1900) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10.2 mm(3.2x) motorized varifocal |
| Optical Zoom | 3.2 x |
| Max. Aperture Ratio | F1.6(Wide)~F3.1(Tele) |
| Angular Field of View | H: 102°(Wide)~32°(Tele) V: 55°(Wide)~18°(Tele) D: 119°(Wide)~36°(Tele) |
| Min. Object Distance | 1.2 m (3.93ft ) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris(IR corrected) |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0 °~350° / -35°~70° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120 dB |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine) SSNRⅤ |
| Motion Detection | 8 ea, 8point polygonal zones |
| Privacy Masking | 32 ea, 4point quadrangle zones - Color: Gray/Green/Red/Blue/Black/White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/25,000sec) prefer shutter control |
| Digital PTZ | Support |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Classified object type: Person/Vehicle Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine
Analytics events
* Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap |
| Alarm I/O | Input 1ea / Output 1ea * Alarm I/O is supported through an optional cable(SPP-C7400) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription |
| Alarm Events | When alarm trigger occurred
|
| Audio In | Selectable(mic in/line in) * Audio In is supported through an optional cable(SPP-C7400) |
| Audio Out | Line out * Audio Out is supported through an optional cable(SPP-C7400) |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 40 m(131.23ft ) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅢ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Hanwha Vision Open Platform |
| Security | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS(WebSocket Secure) |
| Access Control | IP-based access control |
| Data Protect | Encryption credentials, Encrypt compress for live recording file |
| Audit | Access / System / Event Log management |
| Secure Storage | SDcard partition encrypt |
| Security Certificate | Secure by default |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2 GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40 °C~+55°C(-40°F~+131°F) / 0~100% RH(Condensing ) Humidity control /w Air vent |
| Storage Temperature / Humidity | -50 °C ~ +60°C(-58°F ~ +140°F) / Less than 95% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 9.8W, typical 4.0W |
| Mechanical | |
| Color / Material | White / Aluminum Bubble : Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø140x110.2mm(ø5.51x4.34"), 850g(1.87 lb) |
| Compatible Conduit hole / Gangbox | Conduit hole : None Gangbox : Single, Double, 4" Octagon |
| Certifications & Standards |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| Safety UL 62368-1, CAN/CSA C22.2 NO. 62368-1 | IEC/EN 62471 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X |
| Compatible Models | |
| Hanging Adaptor | SBP-140HMW |
| Back Box | SBV-140BW, SBV-140WW |
| Ceiling Mount (Assy) | SBP-150CMI, SBP-300CMI, SBP-300CMW1, SBP-900CMW, SBP-300CMTW, SBP-300CMTS |
| Ceiling Mount (Single Unit) | SBP-140CMB, SBP-140CMT, SBP-180CMB, SBP-180CMS, SBP-150CMP, SBP-300CMP, SBP-900CMP, SBP-C15P, SBP-C15H |
| Wall Mount | SBP-140WMW, SBP-250WMW, SBP-300WMW, SBP-300WMW1, SBP-400WMW |
| Wall Mount Adaptor | SBP-115PFA, SBP-300BW1 |
| Pole Mount | SBD-140PMB, SBD-140PMW, SBP-300PMW2 |
| In-ceiling Mount | SHD-1400FW, SHD-1400FPW |
| Corner Mount | SBD-140KMB, SBP-156KMW, SBP-300KMW1 |
| Parapet Mount | SBP-156LMW1, SBP-300LMW |
| Tilt Mount | SBV-140TMW |
| Cabinet | SBP-150NBW, SBP-300NBW |
| Dome Cover | SPB-VAN82W |
| Conduit Adaptor | SBP-060BA |
| Other Compatible Models | SPP-C7400, SPP-C1900 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 31.1m(102.02ft) / Tele: 133.9m(439.36ft) |
| Observe (63PPM/ 19PPF) | Wide: 12.4m(40.81ft) / Tele: 53.6m(175.74ft) |
| Recognize (125PPM/ 38PPF) | Wide: 6.2m(20.40ft) / Tele: 26.8m(87.87ft) |
| Identify (250PPM/ 76PPF) | Wide: 3.1m(10.20ft) / Tele: 13.4m(43.94ft) |
