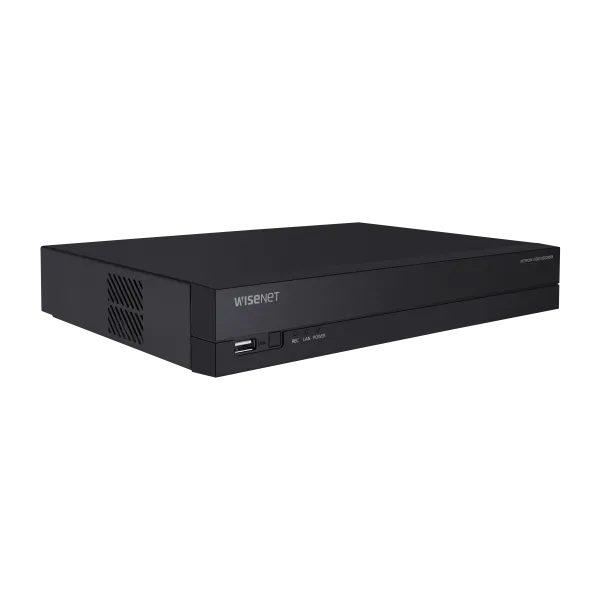

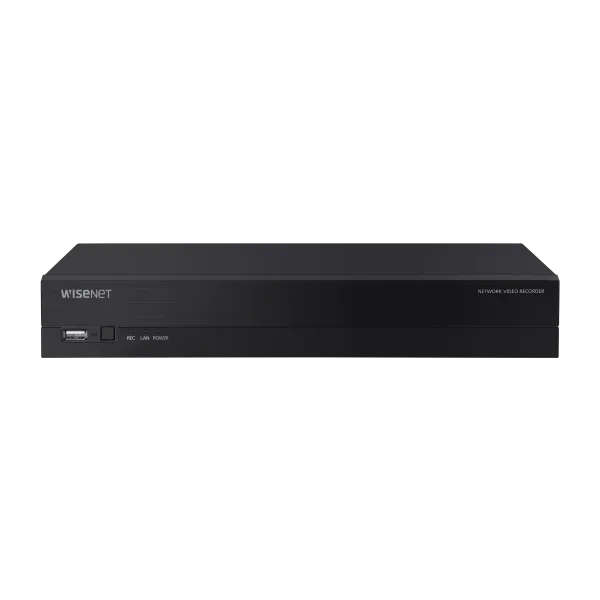

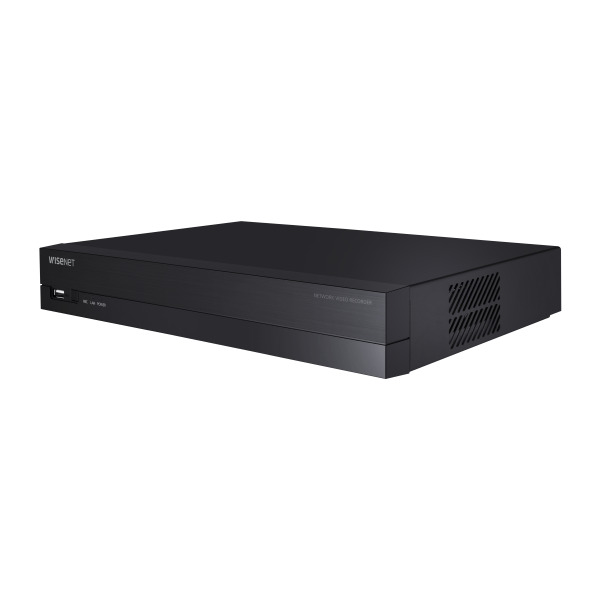

HANWHA - QRN-820S-4TB - 8-CHANNEL 8MP NVR WITH 4TB HDD
Part number:
QRN-820S-4TB
Price:
4K NVR, 4TB RAW, supports: 8 channels with 8 PoE ports (PoE Budget 65W), H.265/H.264/MJPEG, ARB (Automatic Recovery Backup), 1 fixed internal SATA HDDs (6TB max), max. resolution of 8MP recording/display, QR code connect, Dual track recording, Advanced GUI
Features :
- Up to 8 channels, 8 megapixel supported
- H.265, H.264, MJPEG codec supported
- 80Mbps network camera recording
- Plug & play with 8 PoE+ ports, 65W budget
- Maximum 1 HDD (up tp 6Tb) supported
- HDMI local monitor
- P2P service (QR code connect) support
- Dual track recording, 4K HDMI monitor out
| Display | ||
|---|---|---|
| Network camera | ||
| Inputs | Max. 8CH | |
| Resolution | 8MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | ||
| Local Display | HDMI: 3840 x 2160, 1920x1080, 1280x720 | |
| Resolution | 8MP(60fps), 5MP(90fps), 3MP(120fps), 2MP(240fps), 720p(240fps), D1(240fps) | |
| Performance | ||
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 80Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post), Dual track Recording | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) | |
| Event Action | e-Mail, PTZ Preset, Buzzer, Monitor Out | |
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps(8CH simultaneously) | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 8CH(Local Monitor, Network) | |
| Fisheye Dewarping | WEB / CMS / Mobile | |
| Storage | ||
| Supported HDD | Up to 6TB | |
| HDD Slot | SATA 1ea(Max. 6TB) | |
| Backup | ||
| File backup | BU/Exe(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Upto 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Audio | ||
| Input/Output | 8CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | ||
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup, Wisestream, Dynamic GOV/FPS, VA Setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | ||
| Control | Via GUI, Webviewer | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, HTTPS, CGI(SUNAPI) | |
| Control | Live(Multi-Profile Support), Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| ARB | Support | |
| Easy configuration | P2P(QR code) | |

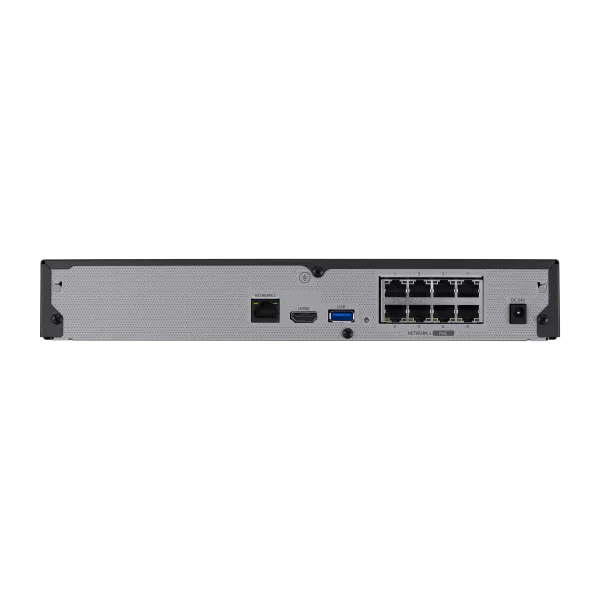

| Interface | ||
| HDMI | 1EA | |
| Ethernet | RJ-45(10/100/1000BASE-T) x 1 RJ-45(PoE+) x 8 | |
| USB | 2EA(Front 1, Rear 1) | |
| System | ||
| System Control | Mouse, IR remocon, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 54VDC / 1.67A | |
| Power Consumption | Max. 76.2W(1HDD, PoE on) Max. 8.1W(1HDD, PoE off) | |
| PoE Budget | Max. 65W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | W300.0 x H47.1 x D208.4 mm (11.8" x 1.85" x 8.2") (1U) | |
| Weight | 1.01Kg (2.23lb) | |
