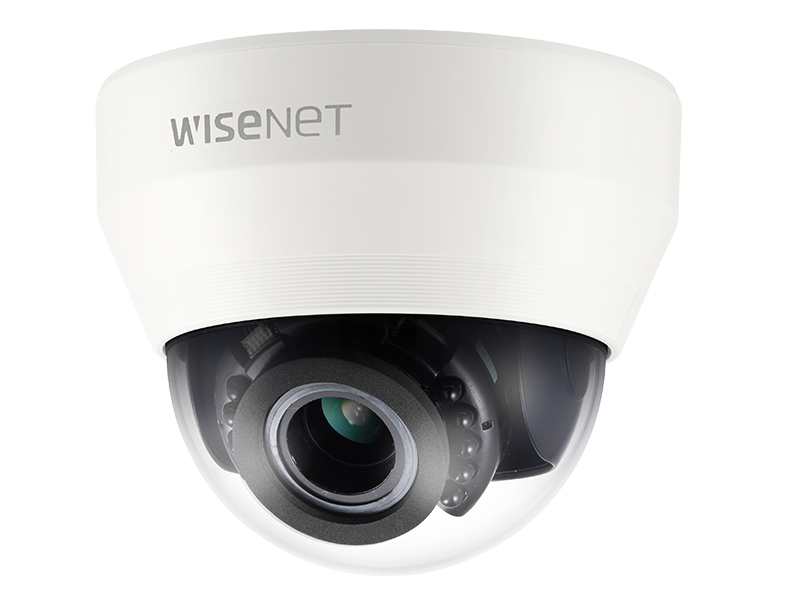

WiseNet HD+ IR indoor dome cameras allow users to upgrade their surveillance systems to HD using legacy coax cabling without the costly process of ripping and replacing coax with Ethernet cabling. The new WiseNet HD+ cameras offer a variety of high-performance features including Day/Night operation, motion detection, defog, IR illuminators and more depending on model. Setup functions are easily controlled by OSD with the built-in joystick or control over coaxial cable with WiseNet HD+ DVRs. Low power consumption, compact form factors, and transmission up to 1,640 feet further enhance the lineup.
- 1080p @ AHD (Default)
- 0.11Lux@F1.4 (Color), 0Lux@F1.4 (B/W : IR LED on)
- Composite Video Output (Switchable)
- 2.8~ 12mm (4.3x) Varifocal Lens
- Day & Night (ICR), DWDR, SSNRIV, Motion Detection
- Built-in IR
- Dual Power
|
SCD-6083R |
||
|
VIDEO |
||
|
Imaging Device |
1/3" 2M CMOS |
|
|
Total Pixels |
1,956(H) x 1,266(V) 2.47M pixels |
|
|
E ective Pixels |
1,944(H) x 1,092(V) 2.12M pixels |
|
|
Scanning System |
Progressive scan |
|
|
Min. Illumination |
Color : 0.11Lux (F1.4) |
|
|
B/W : 0Lux (IR LED on) |
||
|
S / N Ratio |
52dB (AGC o , Weight on) |
|
|
Video Output |
BNC (AHD, CVBS selectable) |
|
|
Resolution |
1920 x 1080 |
|
|
Max. Framerate |
30fps@1080p, 30fps@720p |
|
|
LENS |
||
|
Focal Length (Zoom Ratio) |
2.8 ~ 12mm (4.3x) varifocal |
|
|
Max. aperture Ratio |
F1.4 |
|
|
Angular Field of View |
H : 102˚(Wide) ~ 32.2˚(Tele) / V : 54˚(Wide) ~ 18.2˚(Tele) / |
|
|
D : 121˚(Wide) ~ 38˚(Tele) |
||
|
Min. Object Distance |
0.5m (1.64ft) |
|
|
Focus Control |
Manual |
|
|
Lens Type |
DC auto iris |
|
|
Mount Type |
Board-in type |
|
|
PAN / TILT / ROTATE |
||
|
Pan / Tilt / Rotate Range |
0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
|
|
OPERATIONAL |
||
|
On Screen Display |
English, Japanese, Spanish, French, Portuguese, Korean, German, Italian, |
|
|
Russian, Polish, Czech, Romanian, Serbian, Swedish, Danish, Turkish |
||
|
Camera Title |
O / On (Displayed 15 characters) |
|
|
Day & Night |
Auto (ICR) / Color / B/W |
|
|
Backlight Compensation |
O / User BLC / HLC |
|
|
Wide Dynamic Range |
DWDR |
|
|
Digital Noise Reduction |
SSNRIV (O / On) |
|
|
Defog |
O / Auto / Manual |
|
|
Motion Detection |
O / On (4 zones) |
|
|
Privacy Masking |
O / On (4 zones rectangle) |
|
|
Gain Control |
O / Low / Middle / High / Very high |
|
|
White Balance |
ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
|
|
Electronic Shutter Speed |
1sec ~ 1/12,000sec |
|
|
Reverse |
O / H-Rev / V-Rev / HV-Rev |
|
|
Pro le |
Basic, Day & Night, Backlight, Indoor, User, ITS |
|
|
Alarm |
(MD) output 1 |
|
|
Remote Control Interface |
Coaxial control |
|
|
Protocol |
Coax : NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol) |
|
|
IR Distance |
20m (65.62ft) |
|
|
Video Transmission Distance |
500m (1,640.42ft) (75-5 coaxial cable) |
|
|
ENVIRONMENTAL |
||
|
Operating Temperature / Humidity |
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH |
|
|
ELECTRICAL |
||
|
Input Voltage / Current |
Dual (24V AC & 12V DC ±10%) |
|
|
Power Consumption |
Max. 4.2W |
|
|
MECHANICAL |
||
|
Color / Material |
Ivory / Plastic |
|
|
Dimensions (WxH) |
Ø119.8 x 98.5mm (Ø4.72" x 3.88") |
|
|
Weight |
304g (0.67 lb) |
|
