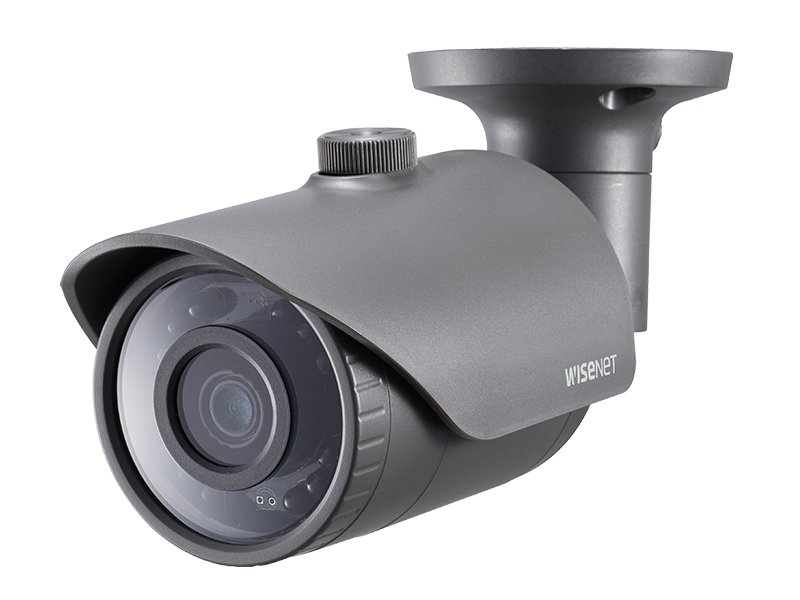

WiseNet HD+ IR Bullet cameras allow users to upgrade their surveillance systems to HD using legacy coax cabling without the costly process of ripping and replacing coax with Ethernet cabling. The new WiseNet HD+ cameras offer a variety of high-performance features including Day/Night operation, motion detection, defog, IR illuminators and more depending on model. Setup functions are easily controlled by OSD with the built-in joystick or control over coaxial cable with WiseNet HD+ DVRs. Low power consumption, compact form factors, and transmission up to 1,640 feet further enhance the lineup.
- 1080p @ AHD (Default)
- 0.25Lux@F2.1 (Color), 0Lux@F2.1 (B/W : IR LED on)
- Composite Video Output (Switchable)
- 4mm Fixed Lens
- Day & Night (ICR), DWDR, SSNRIV, Motion Detection
- Built-in IR
- IP66/12VDC Only
|
Video |
|
|
Imaging Device |
1/3" 2M CMOS |
|
Total Pixels |
1,956(H) x 1,266(V) 2.47M pixels |
|
Effective Pixels |
1,944(H) x 1,092(V) 2.12M pixels |
|
Scanning System |
Progressive scan |
|
Min. Illumination |
Color : 0.25Lux (F2.1) |
|
B/W : 0Lux (IR LED on) |
|
|
S / N Ratio |
52dB (AGC off, Weight on) |
|
Video Output |
BNC (AHD, CVBS selectable) |
|
Resolution |
1920 x 1080 |
|
Max. Framerate |
30fps@1080p, 30fps@720p |
|
Lens |
|
|
Focal Length (Zoom Ratio) |
4mm fixed |
|
Max. Aperture Ratio |
F2.1 |
|
Angular Field of View |
H : 80.7˚ / V : 43.5˚ / D : 95.8˚ |
|
Min. Object Distance |
0.5m (1.64ft) |
|
Focus Control |
Manual |
|
Lens Type |
Fixed |
|
Mount Type |
Board-in type |
|
Operational |
|
Camera Title |
Off / On (Displayed 15 characters) |
|
Day & Night |
Auto (ICR) / Color / B/W |
|
Backlight Compensation |
Off / User BLC / HLC |
|
Wide Dynamic Range |
DWDR |
|
Digital Noise Reduction |
SSNRIV (Off / On) |
|
Defog |
Off / Auto / Manual |
|
Motion Detection |
Off / On (4 zones) |
|
Privacy Masking |
Off / On (4 zones rectangle) |
|
Gain Control |
Off / Low / Middle / High |
|
White Balance |
ATW / Outdoor / Indoor / Manual / AWC (1,800K° ~ 10,500K°) |
|
Electronic Shutter Speed |
1sec ~ 1/12,000sec |
|
Reverse |
Off / H-Rev / V-Rev / HV-Rev |
|
Profile |
Basic, Day & Night, Backlight, Indoor, User |
|
Remote Control Interface |
Coaxial control |
|
Protocol |
Coax : NTSC/PAL - Samsung CCVC, Pelco-C (Coaxitron), AHD - ACP (AHD Coax Protocol) |
|
IR Distance |
30m (98.43ft) |
|
Video Transmission Distance |
500m (1,640.42ft) (75-5 coaxial cable) |
|
Environmental |
|
|
-30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH |
|
|
Operating Temperature / Humidity |
|
|
*Start up should be done at above -10°C (+14°F) |
|
|
Ingress Protection |
IP66 |
|
Electrical |
|
|
Input Voltage / Current |
12V DC ±10% |
|
Power Consumption |
Max. 4.2W |
|
Mechanical |
|
|
Color / Material |
Dark gray / Plastic |
|
Dimensions (WxH) |
Ø58.6 x 165.2mm (Ø2.31" x 6.5") (Without sunshield) |
|
Weight |
208g (0.46 lb) |
