The Wisenet SKY Cloud Managed Video Recorder (CMVR) stores video and acts as a gateway from your premises to the Cloud Data Center where your video can also be stored and managed by the Wisenet SKY Cloud VMS. It provides secure video storage & video streaming, intelligent bandwidth management, and monitoring of cameras.

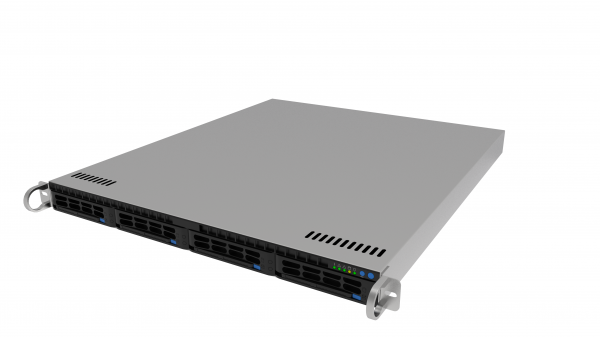

These 1U & 2U rack-based CMVRs are designed to fit in a standard equipment rack. The rack mount CMVRs are offered in a range of sizes to support larger camera counts.
Features:
- CMVR 520 with 40TB (raw) 30TB (useable) RAID 5 (Enterprise Rack Form Factor)
- 1MP: 62CH, 4MP: 50CH, Analytics: 20CH, up to 4 LPR cameras, 40TB (raw) 30TB (useable) RAID 5, (30 days for 40 cameras @ 4MP), VGA, HDMI, DP
- This product is subject to the Wisenet SKY agreement.
- Supports up to 150 @ 1MP cameras ~ 120 @ 4MP cameras*
- Supports up to 40 cloud analytics, with supported license
- Intelligent Bandwidth Management with local recording up to 40 days
- RAID5/6 hard disk redundancy (*level depends on model)
- Dual gigabit network ports
- HDMI & DisplayPort video outputs for local display
- 1U/2U Rack mount
- Fully cloud managed
- Supports motion or continuous recording
- Supports Wisenet and ONVIF conformant IP cameras
- Complete encryption of video in transit and at rest
STANDARD SUPPORT (Included)
- Free of charge with an active subscription
- No cost replacement with an active subscription
- 24/7 email and web support
- Standard phone support
| SYSTEM | |
| Maximum Cameras 1MP Maximum | 50 / 100 / 150 |
| Cameras 4MP Maximum Cloud | 40 / 80 / 120 |
| Analytics | 20 / 30 / 40 |
Raw Hard Disk Drive / Storage @ 1MP Usable RAID Storage | 40TB RAID5 (40 days) / 64TB RAID5 (30 days) / 72TB RAID6 (40 days) 30TB / 48TB / 66TB |

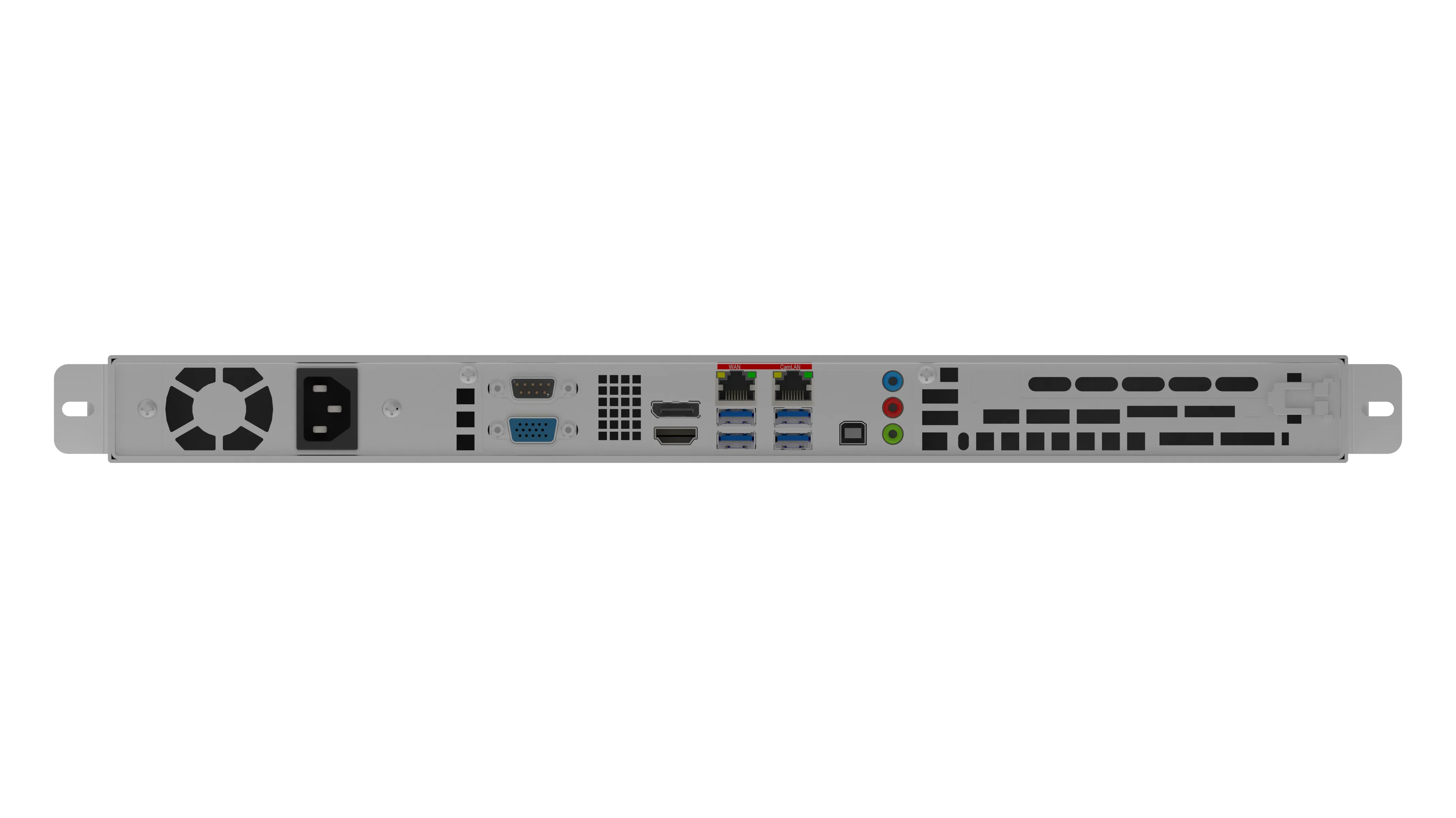

| Network ports | Dual gigabit ethernet RJ-45 |
| Video output | 1x VGA, 1x HDMI, 1x DisplayPort |
| Indicator Lights | Power, disk activity, warning |
| USB ports | 2x USB 3.0 |
| Operating System | Embedded Linux |
| Included accessories | Power cord, rack mount brackets |
| Rack Mount Brackets | Included |
| Ordering SKU | EN-BR520-0 / EN-BR620-0 / EN-BR820-0 |
| MECHANICAL / ELECTRICAL / ENVIRONMENTAL |
| Mechanical | Form Factor | Rack mount or shelf/tabletop mount |
| Color / Material | Black & Silver / Metal | |
| Dimensions | 17.20 x 19.85 x 1.70 in (437 x 503 x 43mm) 1U CMVR 520/620 17.20 x 25.50 x 3.50 in (437 x 647 x 89mm) 2U CMVR 820 | |
Weight Power Supply | 520/620: 27lb (12.25kg) / 820: 51.9lb (23.54kg) | |
| Electrical | Internal, 160 W / 210 W / 280 W | |
| Power Input | 100 ~ 240V AC | |
Environmental | Operating Temperature | 32°F to 95°F (0°C to 35°C) |
| Operating Humidity | 0% to 70% RH, non-condensing | |
| Certification | FCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA | |
