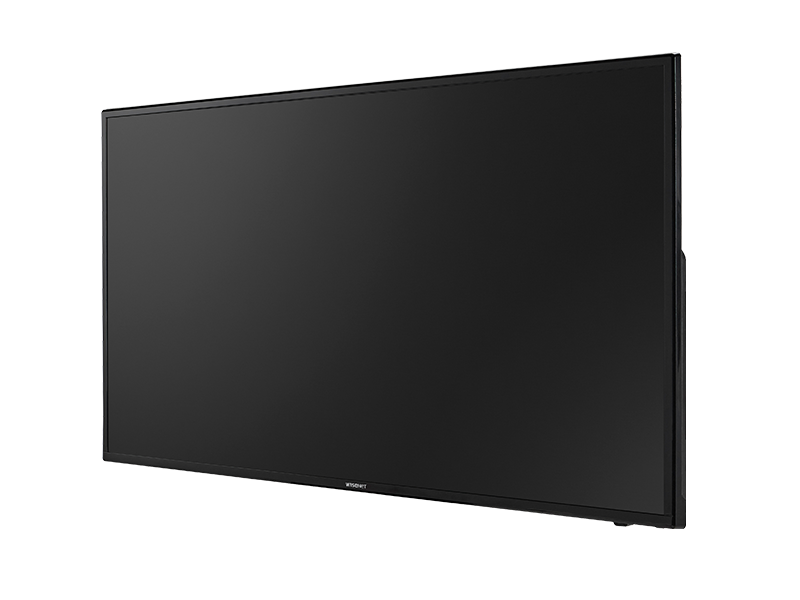

40" LED Monitor, 1080p (1920x1080), DVI, HDMI, VGA, CVBS, 16:9 aspect ratio, Built-in Speaker (2W X 2), VESA DPM Compatible (100x100mm)
- Support up to 1,920 x 1,080 resolution
- Contrast ratio 5,000 : 1
- Response time 9.5ms
- Video input : HDMI, DVI, VGA, BNC
- Panel life 30,000 hours
- VESA 100 mount, 19.62 lbs
|
DISPLAY |
|
|
|
||
|
Screen Size |
|
|
39.5" |
||
|
Maximum Resolution |
1,920 x 1,080 |
||||
|
|
|
|
|
|
|
|
Brightness |
|
|
350cd/m2 |
||
|
Contrast Ratio |
|
|
5,000 : 1 |
||
|
|
|
|
|
|
|
|
Aspect Ratio |
|
|
16 : 9 |
||
|
|
|
|
|
|
|
|
Viewing Angle (H/V) |
178° / 178° |
||||
|
|
|
|
|
|
|
|
Display Color |
|
|
16.7million |
||
|
|
|
|
|
|
|
|
Response Time |
9.5ms |
||||
|
|
|
|
|
|
|
|
Video System |
|
|
NTSC / PAL |
||
|
Panel Life |
|
|
30,000hours |
||
|
Filter Type |
|
|
3D comblter |
||
|
INTERFACE |
|
|
|
||
|
Video |
Connector |
VGA, DVI, HDMI, BNC (CVBS, Through Out)) |
|||
|
|
|
|
|
|
|
|
|
|
Connector |
Analogue D-sub (15 pin), DVI-D |
||
|
|
|
|
|
|
|
|
|
|
Input Signal |
0.7Vpp ±5% |
||
|
|
|
|
|
|
|
|
|
|
|
|
640 x 480@60Hz/72Hz/75Hz (VGA), |
|
|
RGB / DVI |
|
|
800 x 600@56Hz/60Hz/72Hz/75Hz (SVGA), |
||
|
|
|
1,024 x 768@60Hz/70Hz/75Hz (XGA), 1,152 x 864@75Hz, |
|||
|
|
|
|
|
||
|
|
|
Available Format |
1,280 x 720@60Hz, 1,280 x 800@60Hz, |
||
|
|
|
|
|
1,280 x 1,024@60Hz/75Hz (SXGA), 1,360 x 768@60Hz, |
|
|
|
|
|
|
1,440 x 900@60Hz, 1,600 x 900@60Hz, |
|
|
|
|
|
|
1,680 x 1,050@60Hz, 1,920 x 1,080@60Hz |
|
|
|
|
|
|
|
|
|
|
|
Connector |
HDMI |
||
|
HDMI |
Available Format |
640 x 480p@60Hz, 720 x 480p@60Hz, 720 x 576p@50Hz, |
|||
|
|
|
1,280 x 720p@50Hz/60Hz, 1,920 x 1,080@60Hz, 1,920 x 1,080p@60Hz |
|||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
Audio |
Connector |
3.5mm Mini phone jack |
|||
|
|
|
|
|||
|
Output Signal |
Loop-through line level (PC only), Speakers : 2 x 2W |
||||
|
|
|
||||
|
|
|
|
|
|
|
|
Application Support |
Remote controller |
||||
|
ON SCREEN DISPLAY |
|
||||
|
|
|
|
|
|
|
|
Functions |
|
|
VESA™ DPM Compatible |
||
|
|
|
|
|
|
|
|
Language |
|
|
Chinese (Simplied), English, French, German, Spanish, Dutch, |
||
|
|
|
Russian, Arabic |
|||
|
|
|
|
|
||
|
|
|
|
|
|
|
|
GENERAL |
|
|
|
||
|
Electrical |
Input Voltage |
100 ~ 240V AC (50/60Hz) |
|||
|
Power Consumption |
< 60W |
||||
|
|
|
||||
|
Environmental |
Operating Temperature |
0°C ~ +40°C (+32°F ~ +104°F) |
|||
|
Operating Humidity |
10% ~ 80% (Non-condensing) |
||||
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
Dimensions without |
906.7 x 516.9 x 47.8mm |
||
|
|
|
Stand (WxHxD) |
(35.7" x 20.35" x 1.88") |
||
|
Mechanical |
|
|
|
||
|
Bezel Size |
Top 13.66mm (0.54") / Bottom 17.66mm (0.7") |
||||
|
|
|
|
|
|
|
|
|
|
Cabinet Color |
Black |
||
|
|
|
|
|
|
|
|
|
|
VESA Mounts Interface |
100 x 100mm(3.94" x 3.94") |
||
|
|
|
Weight |
19.62 Lbs (8.9Kg) |
||
|
Accessory (Optional) |
Stand, not included |
||||
