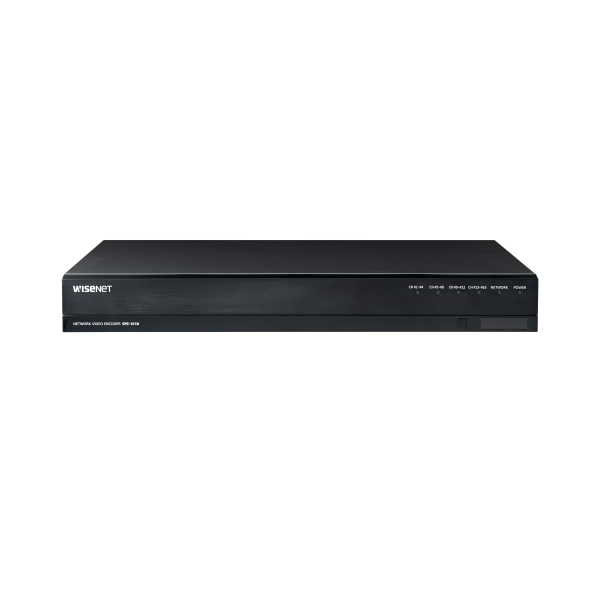

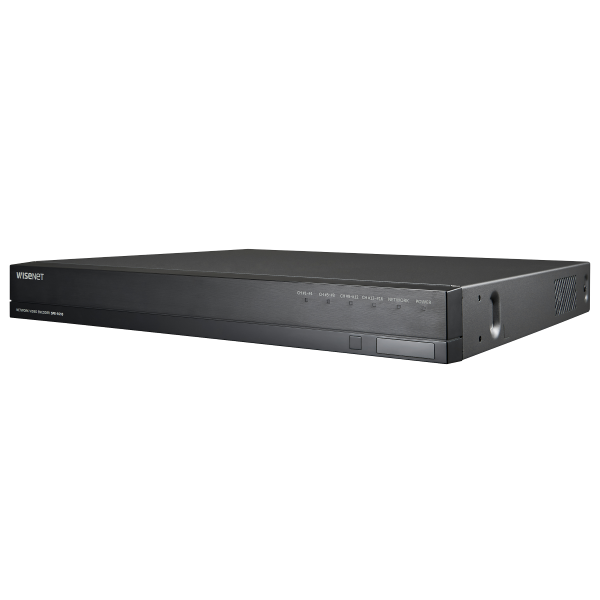

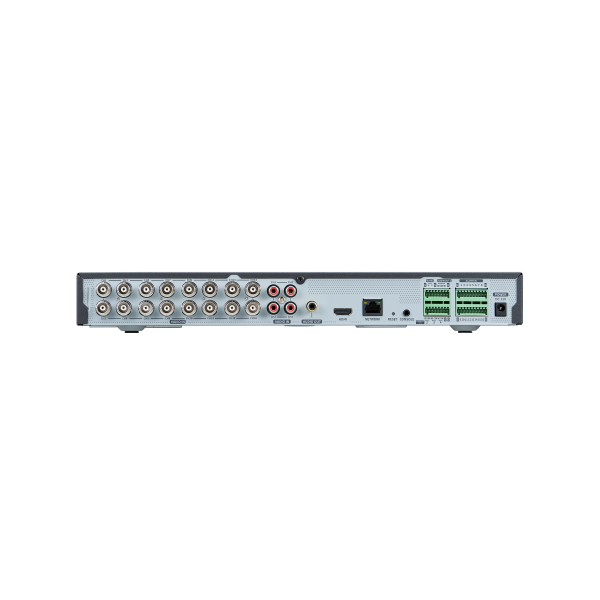

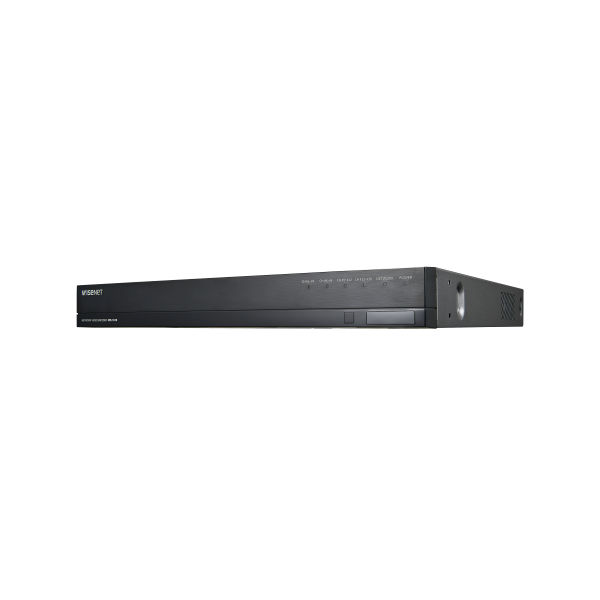

SPE-1620 - EOL Replacement: SPE-1630
Part number:
SPE-1620
Price:
Encoder, 16CH H.265/H.264/MJPEG, 15fps @ 2MP, AHD/CVI/TVI/CVBS compatible, RS-485/422 Interface, Pelco C when using CVBS or ACP up-coax protocol @ AHD, ONVIF protocol support, HDMI output, I/O 16/4, Audio in/out 4/1, 12VDC
Features :
- 2MP resolution
- 15fps@2MP, 30fps@720p
- 265, H.264, MJPEG codec support
- Multiple streaming (up to 2 profiles per CH)
- 1 RJ-45 10/100/1000 Base-T
| Video | ||
|---|---|---|
| Input Channel | 16CH BNC, 1.0 Vp-p / 75Ω composite NTSC/PAL |
|
| Input Signal & Resolution | CVBS, AHD/CVI/TVI (1MP & 2MP) Auto Detection | |
| Video Out | 1 HDMI OUT (16 multi Image, 1920x1080) | |
| Operational | ||
| Motion Detection | Off / On | |
| Privacy Masking | Off / On (4ea rectangular zones) | |
| De-Interlacing | support | |
| Alarm I/O | 16 Input/ 4 Output | |
| Alarm Trigger | Motion Detection, Alarm Input, Video Loss, Tampering, Network disconnect |
|
| Alarm Events | File Upload Via FTP, E-mail | |
| Audio I/O | 4 Line Input / 1 Line Output(1 NO/COM/NC, 3 NO/COM) | |
| OSD | Title | |
| Remote Control Interface | 1ea RS-485(Half Duplex) | |
| RS-485 Protocol | SAMSUNG-T, PELCO-P/D | |
| Coaxial Control | CVBS(Pelco-C) AHD, TVI, CVI |
|
| Network | ||
| Ethernet | 1 RJ-45 10/100/1000 Base-T | |
| Video Compression Format | H.265, H.264 (MPEG-4 Part 10/AVC) : Main / Baseline / High, MJPEG | |
| Resolution | 1920x1080, 1280x720, 928x480(N), 928x240(N), 704x480(N), 704x240(N), 640x360, 352x240(N) 928x576(P), 928*288(P), 704x576(P), 704x288(P), 640x360, 352x288(P) |
|
| Max. Framerate | - Main/Sub Stream ㆍ 1080P Input 1080p/720p/WD1/4CIF/CIF : 15fps/CH(N), 12fps/CH(P) ㆍ 720P Input 720p/WD1/4CIF/CIF : 30fps/CH(N), 25fps/CH(P) ㆍ SD Input 928x480(576)/704x480(576)/928x240(288)/704x240(288)/480x240(288)/352x240(288) : 30fps/CH(N), 25fps/CH(P) - MJPEG : 2fps ㆍ 720P or above Input 640x360/352x240(288) ㆍ SD Input 480x240(288)/352x240(288) - Max. Framerate ㆍ 1080P Input 1920x1080 15fps + 640x360 15fps ㆍ 720P Input 1280x720 30fps + 640x360 30fps ㆍ SD Input 928x480 30fps + 480x240 30fps ※ Max. Framerate can be droppded to 3fps in the 640x360 stream when using Main/Sub Stream simultaneously |
|
| Bitrate Control Method | H.265, H.264 : CBR or VBR | |
| Streaming Capability | Multiple Streaming (Up to 2 Profiles per channel) | |
| Audio Compression | G.711 u-law | |
| IP | IPv4, IPv6 | |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, ONVIF, Bonjour | |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP) |
|
| Streaming Method | Unicast / Multicast | |
| Max. User Access | rtp/rtsp max. 48 users(4 Users/CH) at Unicast Mode , http max.32 users | |
| Webpage Languages | English, French, German, Spanish, Italian, Russian, Turkish, Polish, Dutch, Swedish, Portuguese, Czech, Chinese, Japanese, Korean, Hungarian, Greek | |
| Web Viewer | Supported OS : Windows 10 or later, Mac OS X 10.13 or later Non-plugin WebViewer Supported Browser : Google Chrome 80 or later,, MS Edge 83 or later, Mozilla Firefox 72 or later, Apple Safari 11.0.1 or later |
|
| Application Programming Interface | ONVIF profile S, SUNAPI (HTTP API) | |
| Compatabile Software & Recoder | SmartViewer, NVR(Hanwha Techwin, P/X/Q/L series) | |
| Environmental | ||
| Operating Temperature / Humidity | -10°C ~ +45°C / 20% ~ 80% RH (-10°C ~ +40°C when installed in RACK) |
|
| Electrical | ||
| Input Voltage / Current | DC12V/5A | |
| Power Consumption | MAX : 16W (12V, 1.33A) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | (W) 370.0 × (H) 44.0 x (D) 320.0(include Connector 330.9)mm | |
| Weight | 2.32kg(5.12lb) | |
