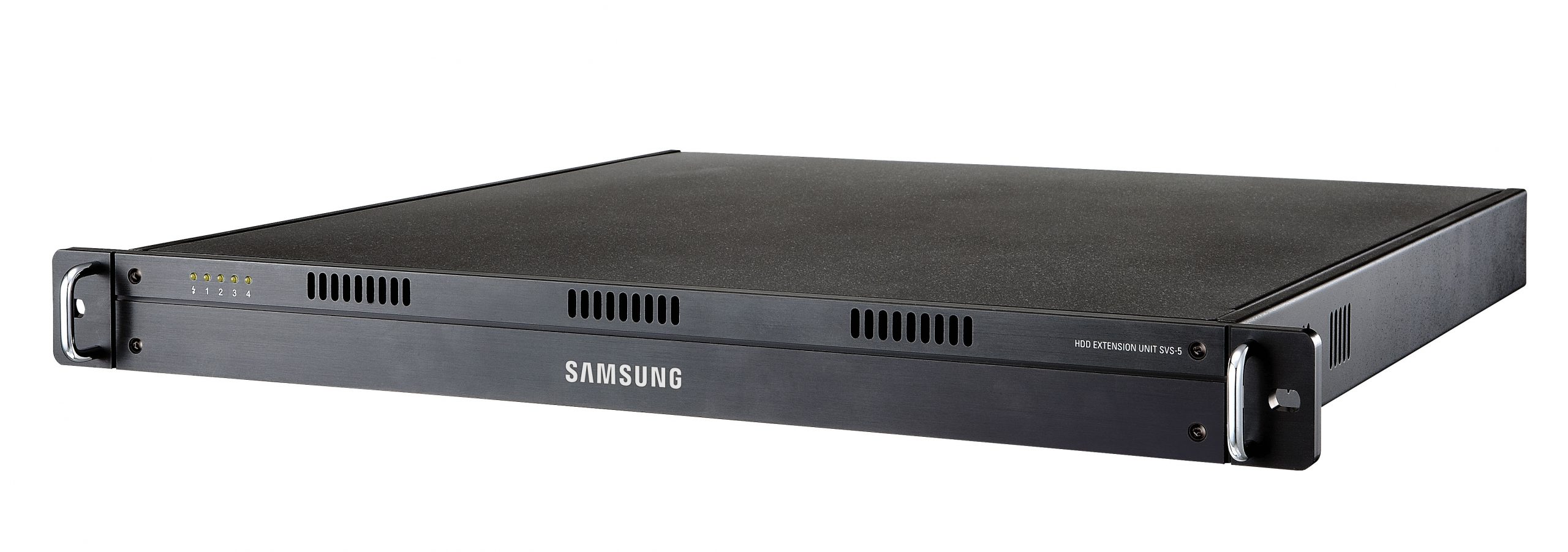

Hanwha - SVS-5E-3TB - SATA External Storage Expansion Bay 3TB
Part number:
SVS-5E-3TB
Price:
The SVS-5 3TB HDD Extension Unit is a 19“ rack-mount type external storage unit using an Serial ATA (SATA) interface, so that it can be installed easily in a cabinet with a DVR (Digital Video Recorder). It affords excellent space saving, because a maximum of 4 SATA HDDs may be fitted to an 1U-height chassis.
Features:
- HDD External unit
- U 19-inch rack case
- Data transmission speed : up to 3.0Gbps (SATA II)
- 2 external SARA port for DVR connection
| Host Connectivity | One external SATA PORT (for DVR connection) Max. 3.0Gbps transfer rate (SATA II) Maximum cable length : 2.0m |
| Disk Connectivity | Max. 4 SATA HDDs support Compliant with SATA-2 standard |
| Dimensions (approximate) | Width(W) × Height(H) × Depth(D) : 48.4cm×4.4cm×45.0cm Weight (without HDD) : 5.6kg |
| Power | AC 115V~230V (50 / 60Hz) Max. 2A |
| Operating Environment | Operating Temperature : 5℃ ~ 45℃ Relative Humidity : 20% ~ 70% (non-condensing |
Name
Description
Size
Downloads
File
Manual
1.9mb
