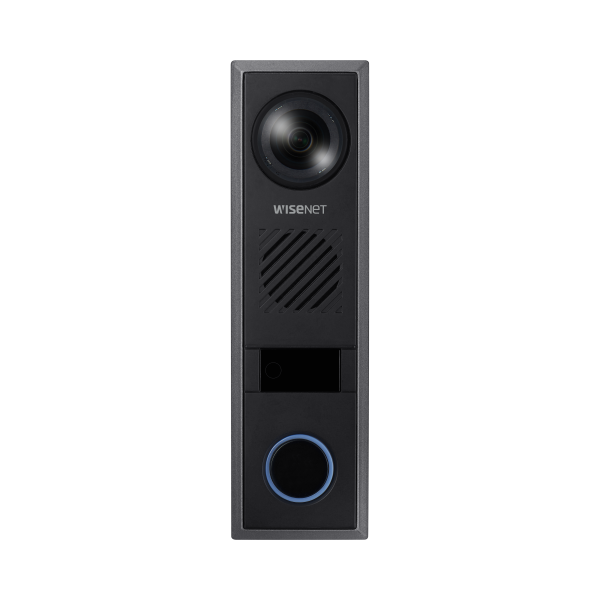

2MP Video Intercom
Optimized video quality and wide FoV for your entrance
TID-600R features a 2 megapixel sensor with Hanwha Vision’s signature Wide Dynamic Range and low light performance for best-in-class images.
Wide Field of View for a wide range of applications
TID-600R has a wide field of view, 180° horizontal and 114° vertical. Making it suitable for various applications as it can capture from 14.2 inches (36cm) to 100.4 inches (255cm) tall objects.
Strong 150dB WDR (Wide Dynamic Range)
Our signature WDR technology built into the TID-600R helps to produce clear images from scenes containing a challenging mix of bright and dark areas. It compensates the backlight and delivers clear view of objects in the scene.
16.4ft (5m) IR viewable length
TID-600R’s IR provides up to 16.4ft (5m) of illumination from the station at night securing clear visibility of objects even in complete darkness (0 lux).
Full duplex two-way talk with clear sound
With Full duplex two-way communication, echo cancellation and noise reduction technology, the built-in speaker and microphone provide excellent call clarity with up to 85 decibel of volume at 20 inches.

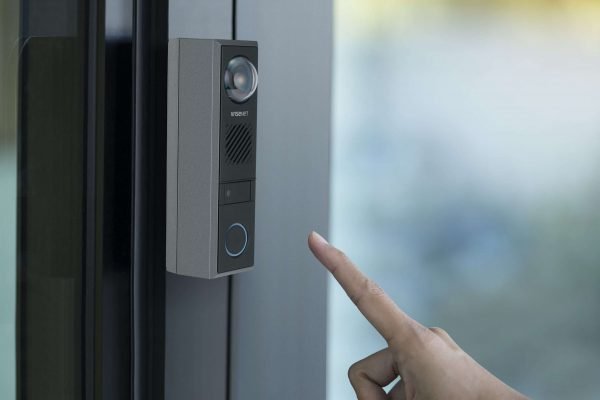

Touchless call as an essential post COVID-19 safety protocol
The ToF sensor in the TID-600R allows for a touchless call, where users simply present their palm within 6 inches of the station to initiate a call. A touchless system is getting more important especially when there’s highly contagious diseases and outbreaks.
Full support for SIP 2.0
With full support for SIP 2.0, the station can easily integrate with a wide variety of VMS, access control, SIP phones or PBX servers.

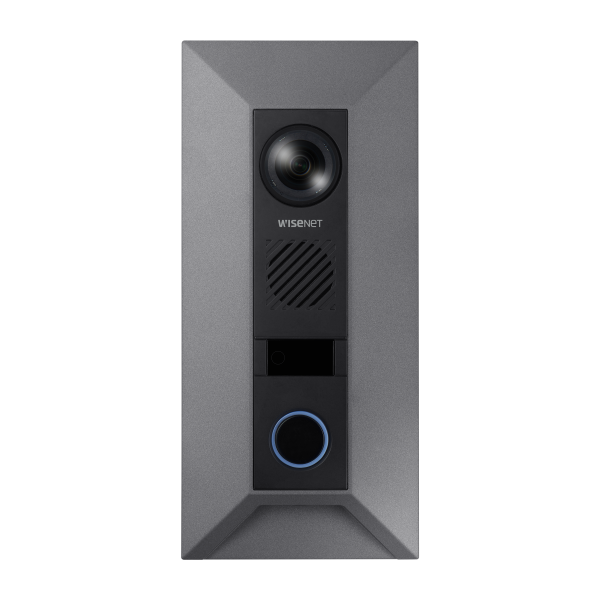

Various mounting options for a greater versatility
TID-600R is designed to be used at various business areas. Its small and slim from factor and contemporary product design offer both style and functionality. With multiple mounting options, covers and skin, it fits perfectly with its surroundings.
Features:
- 1/2.8” 2MP sensor
- 1.6mm fixed lens : HFoV 180°, VFoV 114°
- IR viewable length 5m
- Built-in mic and speaker : 85dB speaker out at 0.5m
- Echo cancellation and noise reduction
- Touchless call, Built-in tamper switch
- SIP 2.0 support
- MicroSD 1slot, PoE/12VDC
- Max. 550mA relay out with 2A 12VDC adapter
- IP65, IK08, NEMA4X
| Video | |
| Imaging Device | 1 /2.8" CMOS |
| Resolution | 1920x1080 , 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480 , 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps |
| Min. Illumination | Color: 0.018Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 1.6 mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 180° / V: 114° / D: 180° |
| Min. Object Distance | 0.3 m (0.98ft ) |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150 dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8 ea, 8point Polygonal zones |
| Privacy Masking | 32 ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Analytics | Directional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Shock detection, Sound classification |
| Alarm I/O | Input 2ea / Output 1ea, Relay out 1ea (12VDC Max. 550mA with 2A adapter) Tampering switch, Touchless call |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover Audio playback |
| Audio Streaming | Two-way/one-way selectable, Full duplex, Echo cancellation and noise reduction |
| Audio In | Built-in mic |
| Audio Out | Built-in speaker: 85dB at 0.5m(1.64ft) |
| Light Type | IR LED (850nm) |
| Light Viewable Length | 5 m |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz Opus 8/16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, SRTP, SIP 2.0( RFC 3261 and companion RFCs ) |
| SIP support (VoIP, Peer-to-peer, SIP/PBX integration) | Tested with Cisco, Grandstream, Yealink VoIP phones and Asterisk PBX software |
| Security | HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1 X authentication(EAP-TLS, EAP-LEAP), Device certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2 GB RAM |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -30 °C~+55°C(-22°F~+131°F) / 0~95% RH |
| Storage Temperature / Humidity | -50 °C~+55°C(-58°F~+131°F) / Less than 95% RH |
| Certification | IP65, IK08, NEMA4X, Safety(UL), EMC(FCC, CE) |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 12.95W, typical 9.1W 12 VDC: Max 17.6W, typical 7W * 12VDC power consumption includes 12VDC/550mA relay out. |
| Mechanical | |
| Color / Material | Dark gray / Aluminum |
| RAL Code | RAL7022 |
| Product Dimensions / Weight | 49(W) x165(H)x48(D)mm(1.93x6.50x1.89") / 490g(1.08lb ) |
| Compatible Models | |
| In-ceiling Mount | SHS-165F |
| Tilt Mount | SBS-165TM |

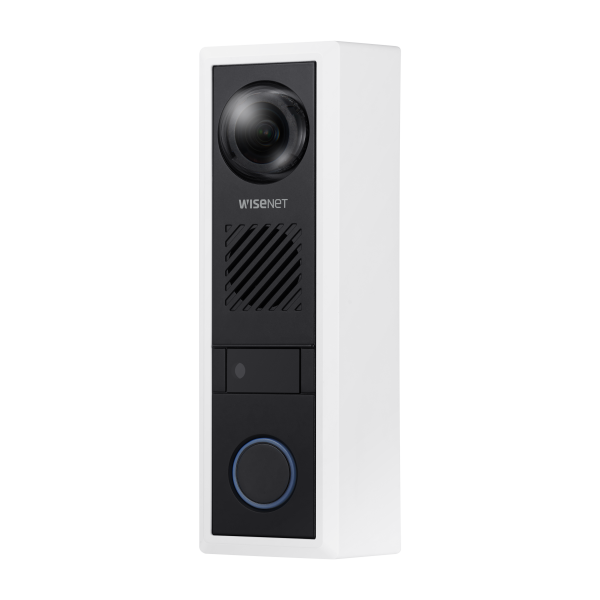

| Skin Cover | SBC-165W |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 20.72m(67.98ft) |
| Observe (63PPM/ 19PPF) | 8.29m(27.20ft) |
| Recognize (125PPM/ 38PPF) | 4.14m(13.58ft) |
| Identify (250PPM/ 76PPF) | 2.07m(6.79ft) |
