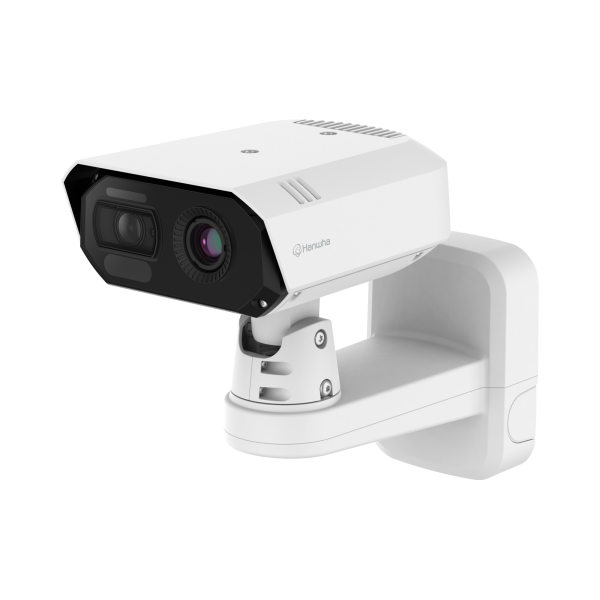

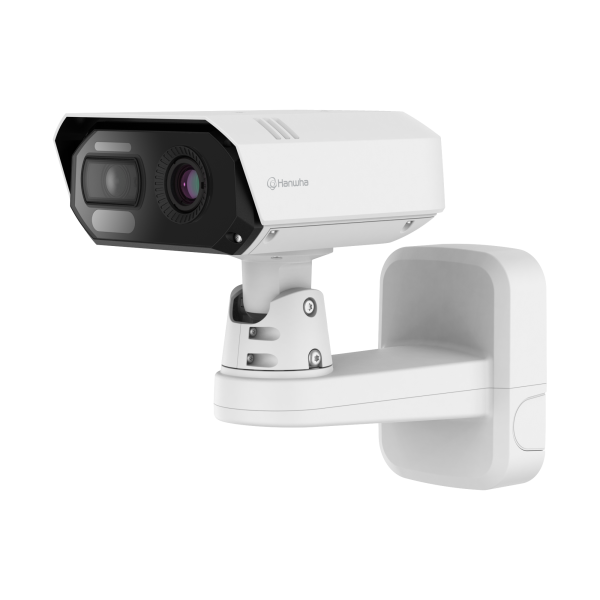

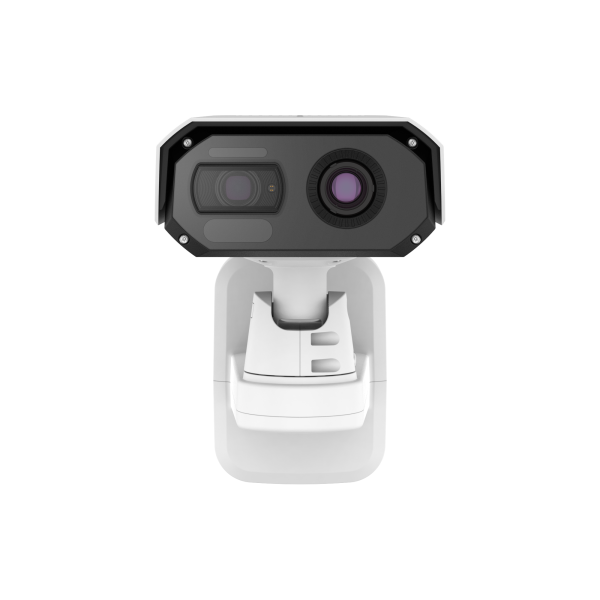

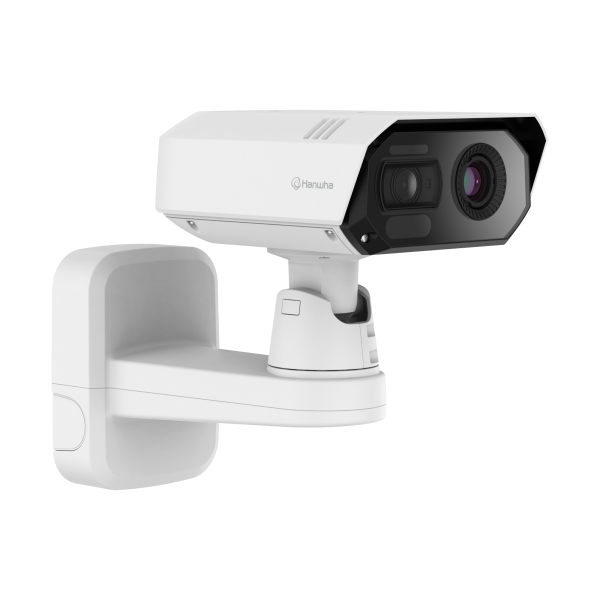

Wisenet T network Bi-spectrum AI Radiometric Camera, Thermal: 640 x 480 (uncooled) @ 30fps, <60mK (NETD), built-in 9.1mm fixed lens (HFoV: 50°),Visible: 4K, built-in 4.4~9.3mm motorized varifocal lens (HFoV: 112.1°~47.5°), Max. 3840 x 2160 resolution @ 30fps, Triple triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support, WDR 120dB, IR viewable length 30m (98ft), AI object detection (thermal): Person/Vehicle, AI object detection (visible): Person/Face/Vehicle (car,bus,truck, motorcycle, bicycle)/License Plate, Analytics events based on AI engine: Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Additional analytics events (thermal): Motion detection, Additional analytics events (visible): Motion detection, Defocus detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear), Alarm events: Image upload (e-mail/FTP), Notification (e-mail), Recording (edge/NAS), Alarm output, Handover (PTZ preset, HTTP/HTTPS/TCP message), Audio clip playback, MQTT (publication), Radiometric: whole FoV area or up 10 user programmable quadrangle ROIs, temperature detection range from -20°C to 130°C (-4°F to 266°F), FIPS 140-2, 2x micro SD card (512GB x2), IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9), PoE+/12VDC This product is subject to the Thermal agreement.
Features:
- Analytics events based on AI engine (thermal): Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Motion detection, Temperature detection
- Thermal: 640 x 480 (uncooled) @ 30fps <60mK (NETD), built-in 9.1mm thermal fixed lens (HFoV: 50°),
- Visible: 4K @ 30fps, built-in 4.4~9.3mm motorized varifocal lens (HFoV: 112.1°~47.5°)
- Triple codec H.265/H.264/MJPEG with Wisestream II and WiseStream III (based on AI engine) support
- WDR 120dB, IR viewable length 30m (98ft)
- AI object detection (thermal): Classified object type: Person/Vehicle, BestShot
- Analytics events based on AI engine (thermal): Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Motion detection, Temperature detection
- AI object detection (visible): Person/Face/Vehicle (car, bus, truck, motorcycle, bicycle)/License Plate, BestShot
- Analytics events based on AI engine (visible): Virtual line (Crossing/ Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Motion detection, Defocus detection, Tampering, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear)
- Alarm events: Image upload (e-mail/FTP), Notification (e-mail), Recording (edge/NAS), Alarm output, Handover (PTZ preset), Send message by HTTP/ HTTPS/TCP message), Audio clip playback, MQTT (publication)
- Radiometric: whole FoV area or up 10 user programmable quadrangle ROIs, Temperature detection range from -20°C to 130°C (-4°F to 266°F)
- FIPS 140-2, Level 2
- 2x micro SD card (512GB x2)
- IP66/IP67, IK10
- NEMA4X, NEMA TS 2(2.2.8, 2.2.9)
- PoE+/12VDC
- This product is subject to the Thermal agreement
| Video | Thermal | Visible |
| Imaging Device | Uncooled micro bolometer | 1 /1.8" 8MP CMOS |
| Resolution | 640x480 (can be scaled up to 1280x960) 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | 3840x2160 , 3072x1728, 2592x1944, 2688x1520, 2560x1440 , 2048x1536, 1920x1080, 1600x1200, 1280x1024,1280x960, 1280x720 , 1024x768, 800x600 , 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps (Both Channel AI ON - Max. 15fps) MJPEG: Max. 3fps | H.265/H.264: Max. 30fps/25fps ( Both Channel AI ON - Max. 15fps ) MJPEG: Max. 1fps |
| NETD | ＜60mK | |
| Pixel Size | 12 ㎛ | |
| Min. Illumination | Color: 0.06Lux(F1.3, 1/30sec) BW: 0.004Lux(F1.3, 1/30sec), 0Lux(IR LED on) | |
| Video Out | USB : Micro USB Type B, 1280x720 for installation | |
| Lens | ||
| Focal Length (Zoom Ratio) | 9.1mm fixed focal | 4.4~9.3 mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.0 | F1.3(Wide)~F2.15(Tele) |
| Angular Field of View | H: 50.0°, V: 37.0°, D: 63.8° (iFoV: 1.319 mRad ) | H:112.1°(Wide)~47.5°(Tele) / V:58.0°(Wide)~26.6°(Tele) / D:137.5°(Wide)~54.6°(Tele) |
| Min. Object Distance | 3.5m(11.48ft) | Wide: 1.75m(5.74ft) / Tele: 5.21m(17.09ft) |
| Focus Control | Fixed | Simple foucs |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | -170° ~ +170° / -40° ~ 50° / - | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | WDR(120dB) | |
| Digital Noise Reduction | SSNR V, WiseNR II | |
| Digital Image Stabilization | Support(built-in gyro sensor) | |
| Motion Detection | 8 ea, polygonal zones | |
| Privacy Masking | 6 ea, rectangle zones - Color: Gray/Black/White | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support |
| Analytics | Classified object type: Person/Vehicle Support BestShot Analytics events based on AI engine
Analytics events
| Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support BestShot Analytics events based on AI engine
Analytics events
* Some of the video analytics only works with people and vehicle detection |
| Business Intelligence | Temperature Analysis |
| Alarm I/O | 4 configurable I/O ports |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, MQTT subscription |
| Alarm Events | When alarm trigger occurred
|
| Audio In | Selectable(mic in/line in) |
| Audio Out | Line out | |
| Light Type | 30 m (98.42ft ) | |
| Color Palettes | Whitehot, Blackhot, Rainbow, Rainbow2, Sepia, Red, Iron, Custom | |
| Radiometry | ||
| Temperature Detect Range | -20 °C~130°C(-4°F~266°F ) | |
| Temperature Detection | 10 Polygonal ROI zones, whole FoV area | |
| Additional | Hybrid palettes, Spot temperature reading | |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz | |
| Smart Codec | WiseStreamⅡ | Manual(5ea area), WiseStreamⅢ |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR | |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP ( TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF Profile S/T/M SUNAPI(HTTP API) Wisenet open platform (visible channel only) | |
| Security | ||
| OS / Firmware Protect | Encrypted Firmware, Secure boot, Signed Firmware | |
| User authentication | Digest Authentication | |
| Network authentication | IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) | |
| Secure Communication | HTTPS, WSS(WebSocket Secure) | |
| Access Control | IP-based access control | |
| Data Protect | Encryption Credentials, Encrypt compress for live recording file | |
| Audit | Access / System / Event Log management | |
| Device ID | Device Certificate(Hanwha Private Root CA) | |
| Secure Storage | HTPM(Hanwha Trusted Platform Module), SDcard partition encrypt | |
| Security Certificate | TPM with FIPS 140-2 level 2 | |
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 2slots 512GB | |
| Memory | 4608 MB RAM, 512MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40 °C to +60°C(-58°F to +140°F ) * Start up should be done at above -30°C 0 ~95% RH(non-condensing ) | |
| Storage Temperature / Humidity | -50 °C~+60°C(-58°F~+140°F) / 0~90% RH | |
| Certification | IP66/IP67, IK10, NEMA4X, NEMA TS 2(2.2.8, 2.2.9) | |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC | |
| Power Consumption | PoE+ : Max 25.5W, Typ 16.0W 12 VDC : Max 21.5W, Typ 14.0W | |
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | 353.4(W)x287.5(H)x191.2(D)mm(13.92x11.32x7.53"), 4.53 kg(9.99lb ) | |
| Certifications & Standards | ||
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A |
| UL/CSA 62368-1 Safety | KC 62368-1 |
| Environment | IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 NEMA 250 type 4X, NEMA TS-2 |
