WN7 Panoramic Multi-sensor explosion proof camera, 180º view, (2MP X 4 sensors) 7.3MP @ 30fps, panoramic 209º view, 8.3MP, triple codec H.265/H.264/MJPEG with WiseStream II technology, extreme WDR 120dB, defocus detection, built in analytics, Heatmap, Micro USB for easy installation, 2 x Micro SD cards PoE+, IP66/IK10/NEMA4X; FM (Factory Mutual), cLCus C1/D1 certification

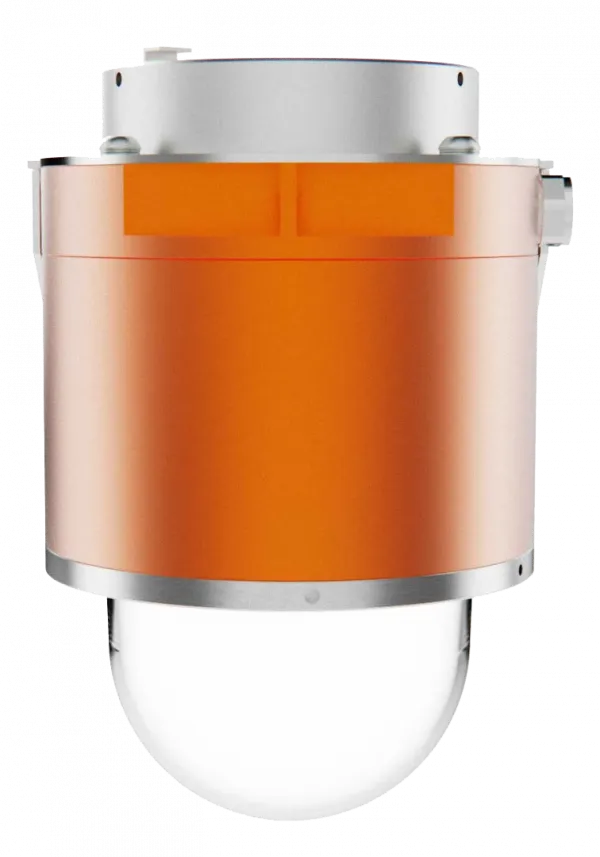

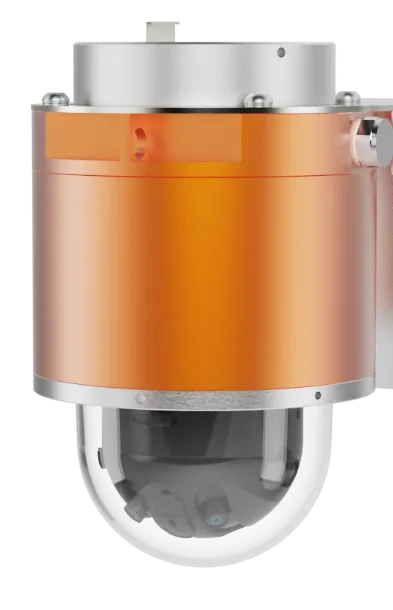

The TNM-P9022EPT3-Z is a 2MP x 4 CH stitched panoramic camera, providing 8.3/7.3MP resolution, designed for locations with hazardous chemicals and combustible gases/particles
Features:
- FM (Factory Mutual Insurance) certified, C1/D1 certification
- Marine-ready Aluminum and Dual patented technology
- PoE+ powered

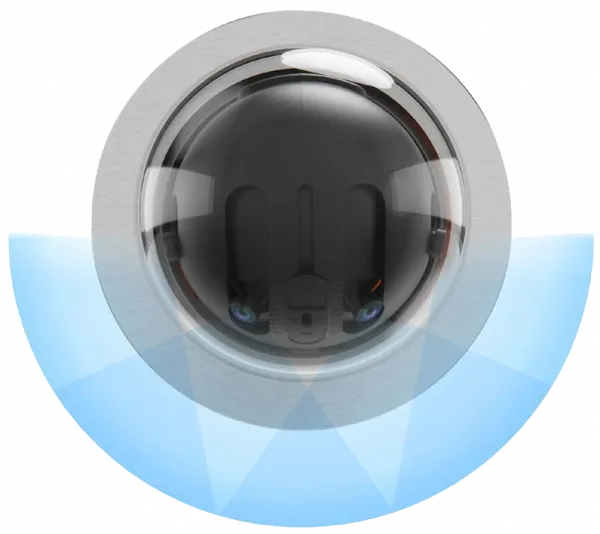

- 180° and 209° mode switchable
- Extreme WDR (120db)
- Intelligent Video analytics
- Optional mounts required for installation
| VIDEO | |
| Imaging Device | 1/2.8” CMOSx 4 |
| Resolution | [209º Mode] 4608X1800, 4032X1576, 3456X1352, 2864X1124, 2304X900, 1728X676, 1152X452, 560X224, 720x576[180º Mode]4096X1800, 3584X1576, 3072X1352, 2560X1124, 2048X900, 1536X676, 1024X452, 512X224, 720X576 |
| Max. FrameRate | H.265/H.264: 30fps, MJPEG: 30fps |
| Min. Illumination | Color: 0.1Lux (1/30sec, F1.6) , B/W: 0.01Lux (1/30sec, F1.6) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| LENS |
| Focal Length (Zoom Ratio) | 2.8mm fixedfocal x 4 |
| Max. Aperature Ratio | F1.6 |
| Angular Fieldof View | H: 209°/180°, V:83° |
| Focus Control | Fixed |
| PAN/TILT/ROTATE |
| Pan/Tilt/Rotate Range | 0°~355° / 0°~60°/ - |
| OPERATIONAL |
| Camera Title | Displayed up to 85 characters |
| Day &Night | Auto (ICR) |
| Backlight Compensation | BLC / HLC / WDR / SSDR |
| Wide Dynamic Range (WDR) | Extreme WDR (120dB) |
| Digital Noise Reduction | SSNRV |
| Defog | Support |
| Motion Detection | 8ea, 8pointpolygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/ White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor/ Outdoor |
| Electronic ShutterSpeed | Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus Detection, Motion Detection, Appear/Disappear, Enter/Exit, Tampering, Virtual Line, Audio Detection |
| Business Intelligence | Heatmap |
| Alarm I/O | Selectable 2 port |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and E-Mail, Notification via E-Mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, Handover/Preset |
| Audio In | Selectable(microphone in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Maximum output level: 1Vrms |
| NETWORK |
| Ethernet | Metal shielded RJ-45 (10/100BASE-T) |
| Video Compression | H.265 / H.264: Main/ Baseline / High, MJPEG |
| Audio Compression | G.711 u-law/G.726 Selectable, G.726(ADPCM) 8KHz, G.711 8KHz,G.726: 16Kbps, 24Kbps,32Kbps, 40Kbps, AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual (5ea area), WiseStream II |
| Bitrate Control Method | H.264 / H.265 : CBR or VBR, MJPEG: VBR |
| Streaming | Unicast (20 users) / Multicast, Multiple streaming (Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS,QoS, PIM-SM, UPnP,Bonjour, LLDP, SRTP |
| Security | HTTPS (SSL) Login Authentication, Digest Login Authentication IP Address Filtering, User Access Log, 802.1X Authentication (EAP-TLS, EAP-LEAP), Device Certificate |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTPAPI), Wisenet Open Platform |
| GENERAL |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech,Polish, Turkish, Dutch,Hungarian, Greek Micro |
| Edge Storage | SD / SDHC/ SDXC 2 slots 1TB (512GB x 2) |
| Memory | 4GB RAM, 512MBFlash |
| Input Voltage | PoE+ (IEEE802.3at, Class4) |
| Power Consumption | PoE+: Maximum 18W, Typical 10.4W |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Operational Temperature / Humidity | -20°C ~ +55°C (-4°F ~ +131°F) / Less than 95% RH (Non-condensing) |
| Casing | Aluminum |
| Weight | 12.247kg (27lbs) |
| DIMENSIONS |
| Width (W) | 218.44mm (8.59") |
| Height (H) | 347.269mm (13.672") |
