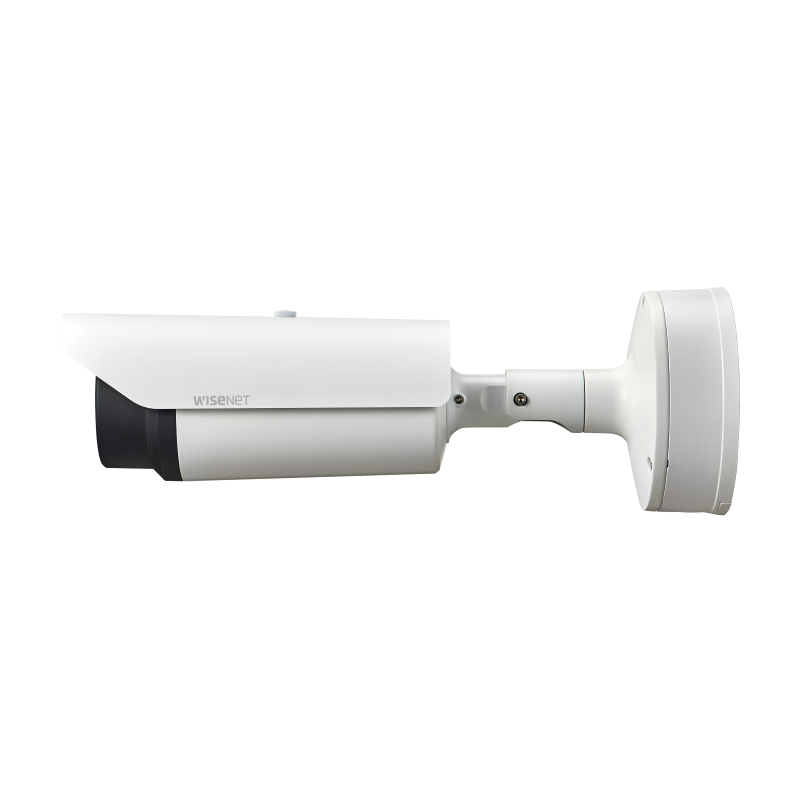

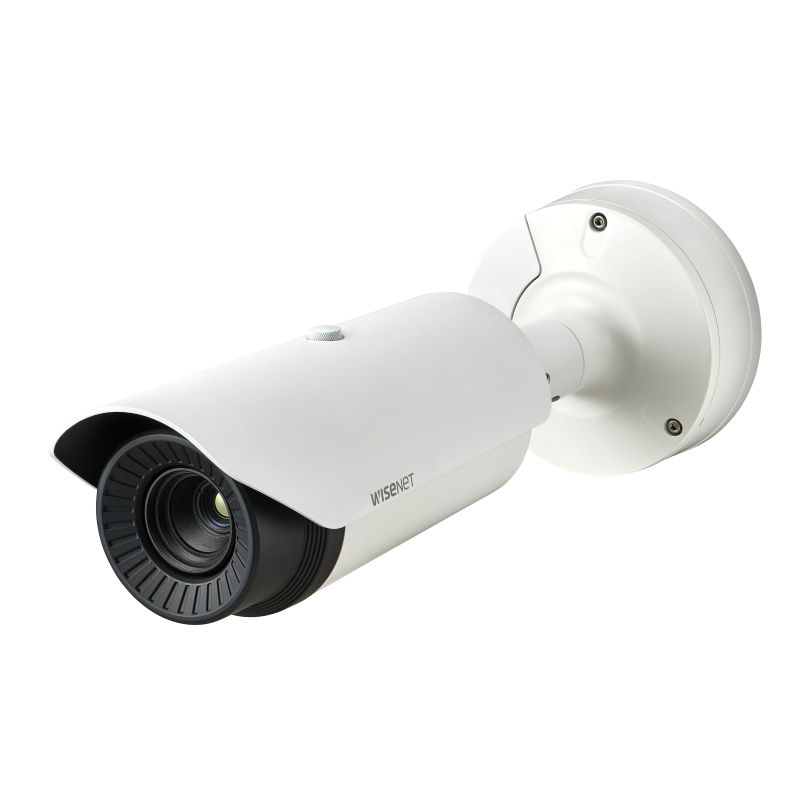

Hanwha - TNO-4040TR - VGA Radiometric Bullet
Part number:
TNO-4040TR
Price:

In challenging weather (fog, smoke, rain) or lighting conditions (complete darkness, backlighting), it can be difficult to distinguish people or objects in a complex background by a visible camera or a human eye. Wisenet T series thermal cameras provide high contrast images based on temperature differences between the object and background, to easily detect incidents. The advanced thermal imaging technology provides high contrast to make the unseen details visible without additional lighting.



The TNO-4040TR is a VGA radiometric thermal bullet network camera with a built-in 19mm lens providing human detection at up to 674m, and detection of vehicles at up to 1,714m. Additional specifications include H.265/H.264, WiseStream II, Intelligent Analytics, bi-directional audio, SDXC edge storage, PoE, 24VAC, 12DC, IP66, NEMA4X, IK10, and a wide operating temperature range. The Wisenet thermal radiometric camera can detect temperatures within the range of -20˚C to +130˚C. Alarms are generated and sent to users in case the temperature of three user-defined areas in the monitoring screen is above or below a defined value or the temperature increases or decreases beyond the preset range. In addition, the screen displays average/minimum/maximum temperature of the three areas for more thorough temperature measurement. Spot temperature readings can also be performed. Using a hybrid color palette, the selected temperature range can be displayed in vivid colors, helping users observe monitoring areas with greater ease. Temperatures out of the defined range is expressed as a white hot color, ensuring the camera covers the entire monitoring areas.



Features:

  • High resolution thermal VGA (640 x 480) resolution
  • Built-in 19mm fixed lens
  • 30fps@all resolutions(H.265, H.264, MJPEG)
  • H.265, H.264, MJPEG triple codec support
  • WiseStream II support
  • 7 selectable color palettes
  • Tampering, Loitering, Directional / Virtual Fence Line detection, Enter/ Exit, (Dis) Appear, Audio detection, Motion detection, Sound classification, Shock detection, Temperature change detection
  • 2-way bi-directional audio & Alarm I/O support
  • SD / SDHC / SDXC memory slot (Maximum 256GB)
  • Operating temperature -40°F ~ +140°F
  • PoE, 24V AC, 12V DC / IP66, NEMA4X, IK10
Video
Imaging DeviceUncooled micro bolometer
NETD<50mK
Pixel Size17㎛
Video Out

CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation

USB : Micro USB Type B, 1280x720 for installation

Lens
Focal Length (Zoom Ratio)19mm fixed focal
Max. Aperture RatioF1.0
Angular Field of ViewH: 32˚ / V: 24.3˚ / D: 39.2˚
Min. Object Distance11m(36.09ft)
Focus ControlFixed
Operational
Camera TitleDisplayed up to 85 characters
Digital Image StabilizationSupport(built-in gyro sensor)
Motion Detection8ea, 8point polygonal zones
Privacy Masking

32ea, polygonal zones

- Color: Grey/Green/Red/Blue/Black/White

- Mosaic

Video RotationFlip, Mirror, Hallway view(90˚/270˚)
AnalyticsDirectional detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Temperature ditection, Sound classification, Shock detection
Alarm I/OInput 1ea / Output 2ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm Events

File upload via FTP and e-mail

Notification via e-mail

SD/SDHC/SDXC or NAS recording at event triggers

Alarm output

Handover

Audio In

Selectable(mic in/line in)

Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm

Audio OutLine out, Max.output level: 1Vrms
Radiometry
Temperature detect range-20˚C~130˚C(-4˚F~266˚F)
Temperature accuracy±5℃(≤100℃), ±20%(>100℃)
Temperature detection3ea rectanguler
AdditionalHybrid palettes, Spot temperature reading
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate Control

H.264/H.265: CBR or VBR

MJPEG: VBR

Streaming

Unicast(20 users) / Multicast

Multiple streaming(Up to 10 profiles)

ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP
Security

HTTPS(SSL) Login Authentication

Digest Login Authentication

IP Address Filtering

User access log

802.1X Authentication(EAP-TLS, EAP-LEAP)

Application Programming Interface

ONVIF Profile S/G/T

SUNAPI(HTTP API)

Wisenet open platform

Environmental & Electrical
Operating Temperature / Humidity-40°C ~ +60°C (-40°F ~ +140°F) / Less than 90% RH
Storage Temperature / Humidity-50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH
CertificationIP66, IK10, NEMA4X
Mechanical
Color / MaterialWhite / Aluminum
RAL CodeRAL9003
Product dimensions / weightΦ101.97x401.8mm (4.01x15.82") / 3,124g (6.89lb)
